WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-**09 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |

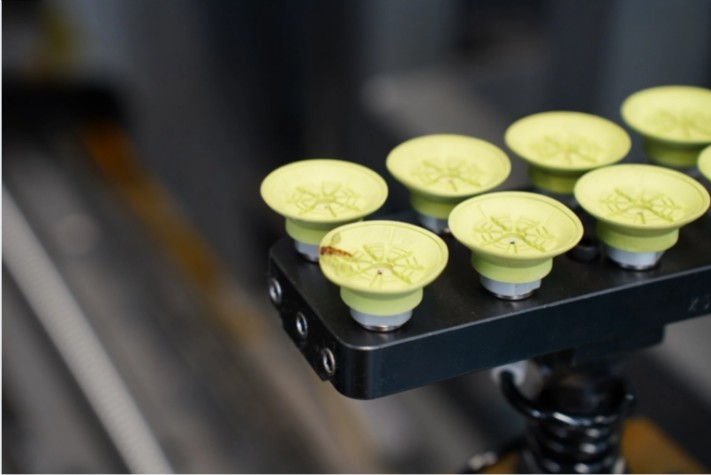

| Product Name: | Automatic Bending Center | Feeding Method: | Suction Cup |
|---|---|---|---|
| Axis Number: | 9 | Rated Bending Speed: | 0.2 Second/time |
| Axis Positioning Accuracy: | ±0.02mm | Power Supply: | AC380V/50Hz |
| Motor Power: | 25KW | Power Consumption: | 1.5KW |
| Highlight: | CNC Automatic Bending Center,Automatic Bending Center 1.6mm,panel bender machine 50Hz |
||

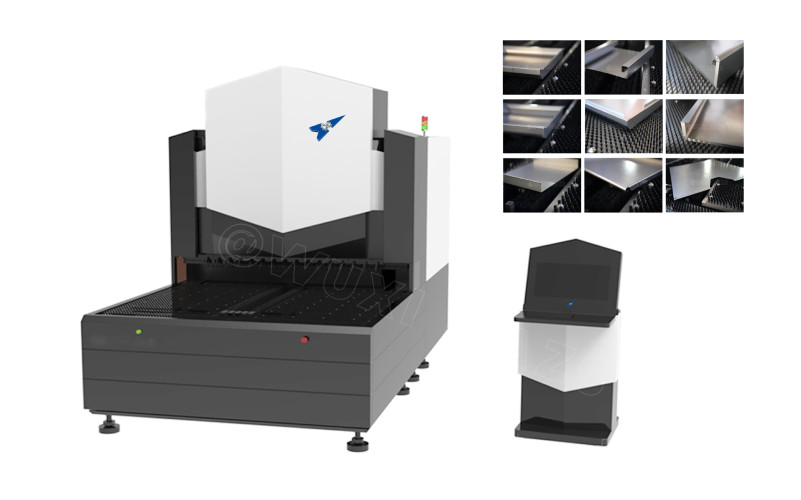

MAX-1009 CNC Automatic Bending Center for Aluminum Plate 1.6mm Thickness
|
Item
|
Technical Parameters |
|
Max. bending speed
|
0.2 second/time
|
|
Max. bending width
|
1000mm
|
|
Max. bending hight
|
170mm
|
|
Rated voltage
|
380v
|
|
Motor total power
|
25Kw
|
|
Average power
|
about 1. 1Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
285* 150* 280cm
|
|
Total machine weight
|
about 7t
|
|
Max. bending thickness
(thicker panel customizable)
|
UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm
|
|
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
|
|
|
UST 265N/ mm2 aluminum panel 1 . 6mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming, minimum inner size
|
140* 210mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
1000* 1000mm
|
|
Axis QTY
|
standard synchronized 9 axises
|
|
Hinge knife
|
common hinge knife
|
The automatic bending center is an advanced machine especially developed to improve productivity and minimize labor costs for sheet metal production. It is capable of being applied to a broad range of industries, including but not limited to cabinet-making, kitchenware production, furniture production, ventilation, refrigeration, purification, door industry, decoration and elevator industries.
For instance, it can be used to fabricate all sorts of cabinets (e.g. file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet, etc.), kitchenware (e.g. refrigerator, air conditioning, stove, etc.), as well as other related metal forming products.
MAZS provides:
* Safe stock spare parts
Provide users with complete inventory of spare parts, ensuring that accessories and wearing parts are replaced in time, it provides protection for daily production for users.
* 7x24 Online service
Provide 7x24 hours of after-sales online service to maximize the protection of users' daily production plans, and realize worry free after-sales problems.
* Lifetime service tracking
Establish an user profile with an unique device code, track and record device usage details, and provide lifetime maintenance services for cooperative users.
