WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1009 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | Automatic Bending Center | Feeding Method: | Suction Cup |
|---|---|---|---|
| Positioning Method: | Y Axis Three Positioning Rulers | Max Bending Angle: | 180° |
| Bending Thickness: | Aluminum Plate 1.6mm | Max Bending Capacity: | 1.6mm |
| Power Supply: | AC380V/50Hz | Dimensions: | 2850*1500*2800mm |
| Highlight: | 7000kg automatic sheet bending machine,automatic sheet bending machine 25KW,7000kg CNC Sheet Metal Bender |
||

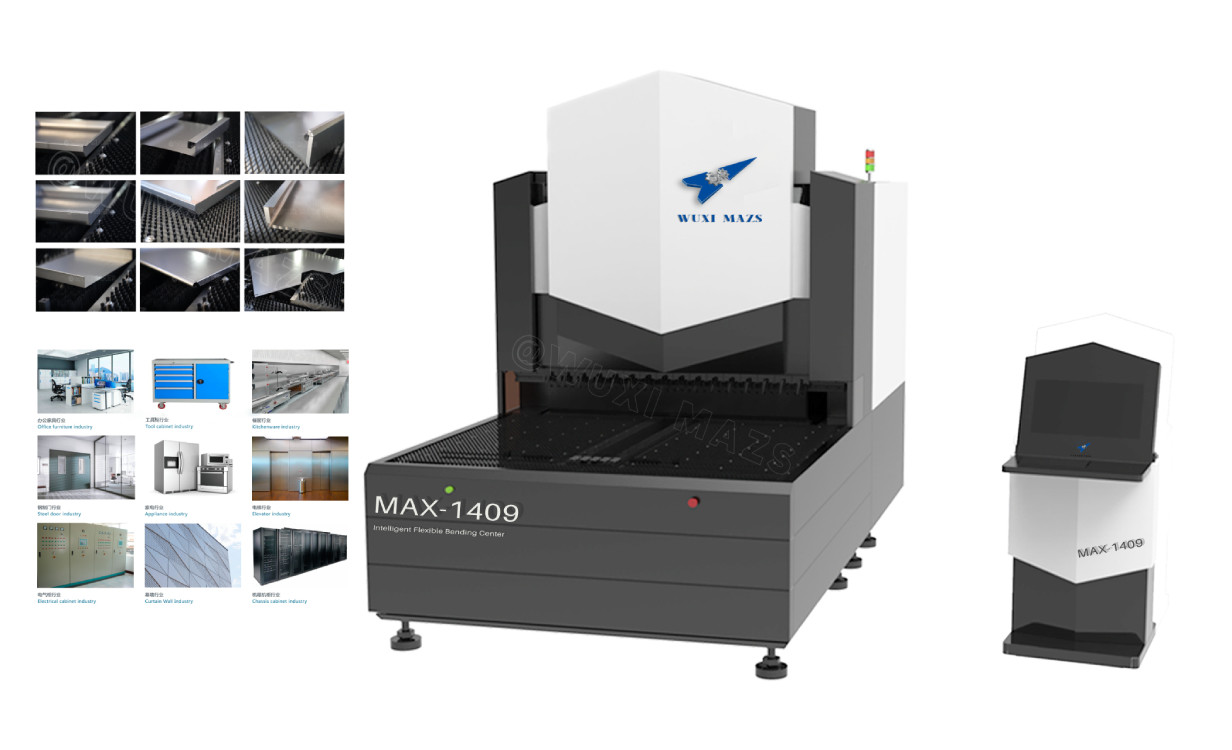

The Intelligent Automatic Bending Center (IABC) has developed an innovative servo flexible bending center. This product has been developed with great attention to detail, from the software drivers, their hardware circuits, and mechanical structures. This advanced automatic bending center is specifically produced for the metalworking industry in order to increase production efficiency, reducing labor cost and improving the company’s image.
Those interested in purchasing a panel bender are mainly from domestic and foreign markets. It has been used to cover over ten industries and has received a glowing response from its consumers.

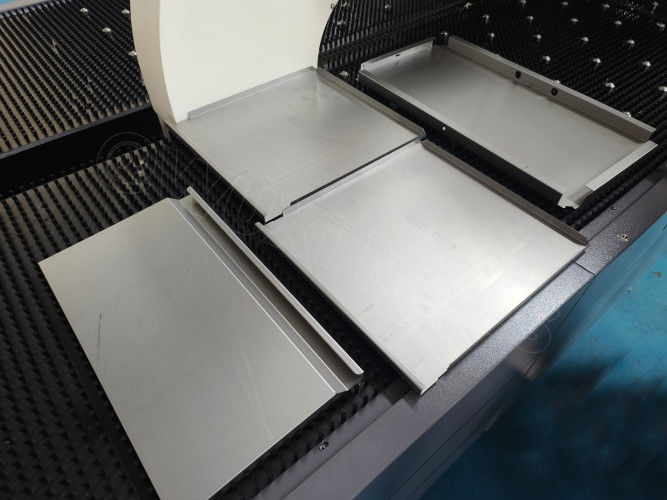

* Sharp — In sharp bends, the radius is smaller than the minimum bend radius, while the center of the radius is creased to produce a sharp bend.
* Radius — A custom bend radius depends on the customer’s unique specifications.
* Step bending — A step bend comprises a large bend radius divided into several smaller bends, which form a slightly larger radius.
* Hemming — These bends consist of sheet metal edges bent to 180°, creating a hem at the edge.
* Industry 4.0 architecture, which can be upgraded smoothly.
* Fast speed, only 0.2 seconds per time.
* Rapid prototyping of sheets, high consistency.
* Low power consumption.
* Simple maintenance and low cost.

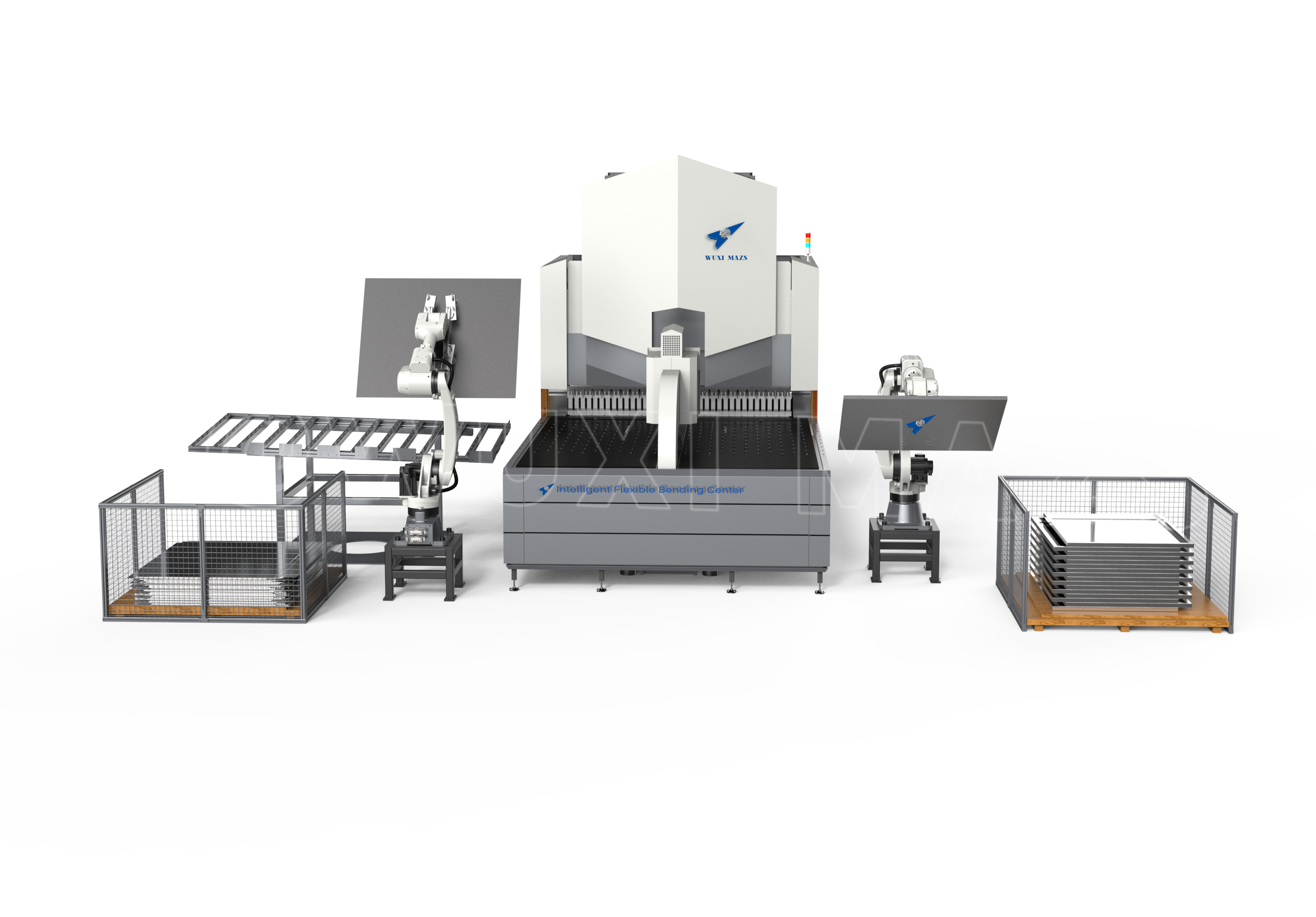

* High degree of automation, simple operation, low labor requirements.
* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
| Items | Technical Parameters |

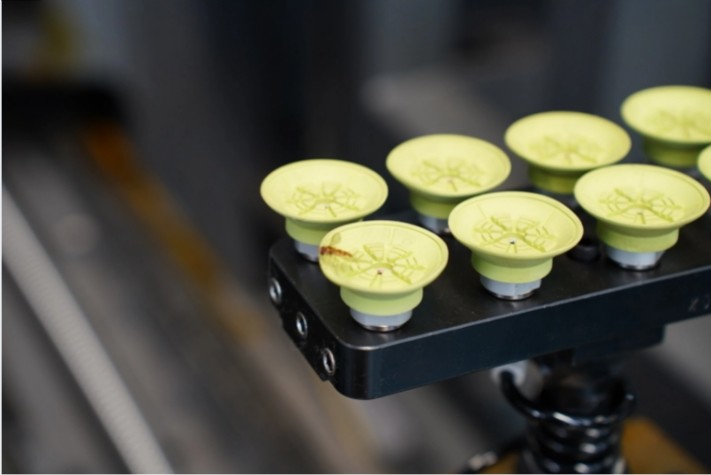

| Feeding method | Suction cup |
| Positioning method | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 1000mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 25Kw |
| Average power | about 1.1Kw |
| Noise | 50dB |
| Machine size | 285*150*280cm |
| Total machine weight | about 7t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | |
| UST 265N/ mm2 aluminum panel 1.6mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140*210mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 1000* 1000mm |
| Axis qty. | standard synchronized 9 axis |
| Hinge knife | common hinge knife |
