WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |

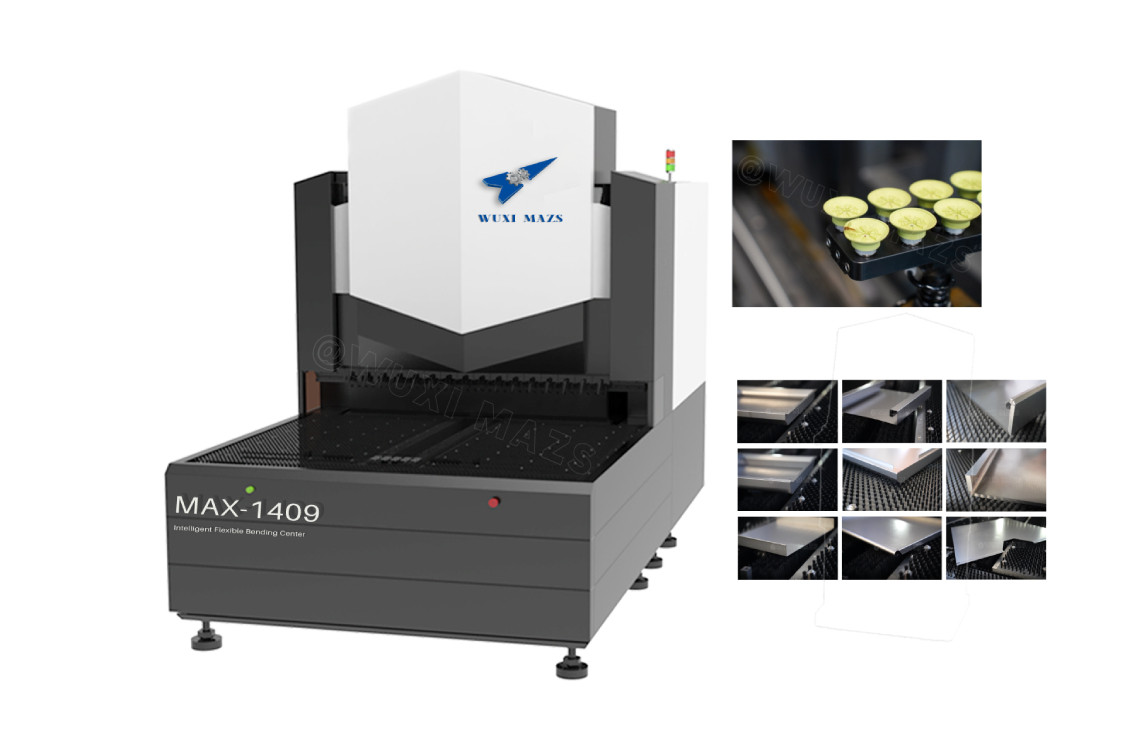

| Model Number: | MAX-1409 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Feeding Method: | Suction Cup | Waterproof Rating: | IPX-7 |
|---|---|---|---|
| Position Method: | Y Axis Three Positioning Rulers | Work Table Structure: | Brush |
| Suitable Material: | Aluminum, Carbon Steel, Stainless Steel | Panel Sheet Thickness: | 0.35-1.6mm |
| Sheet Size: | Max. 1400*1400mm | Noise: | 50dB |
| Highlight: | 1400mm Automatic Bending Center,Aluminum Automatic Bending Center,Automatic Panel Bender 1400x1400mm |
||
| Items | Technical Parameters |

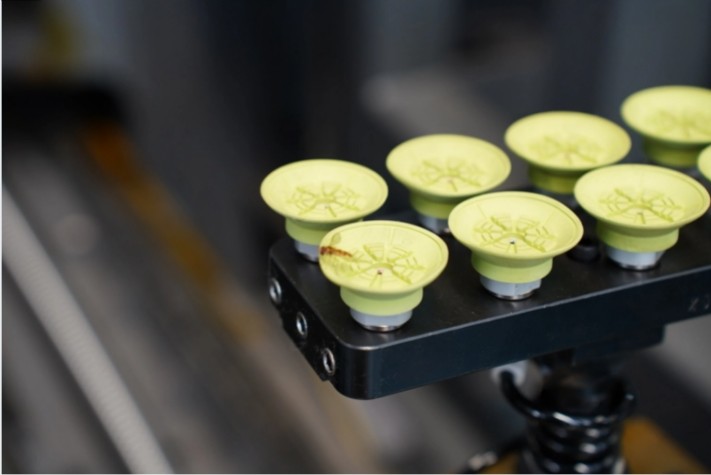

| Feeding method | Suction cup |
| Positioning method | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 1400mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 34Kw |
| Average power | about 1.5Kw |
| Noise | 50dB |
| Machine size | 365*190*290cm |
| Total machine weight | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | |
| UST 265N/mm2 aluminum panel 1.6mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140*210mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 1400* 1400mm |
| Axis qty. | standard synchronized 9 axis |
| Hinge knife | common hinge knife |

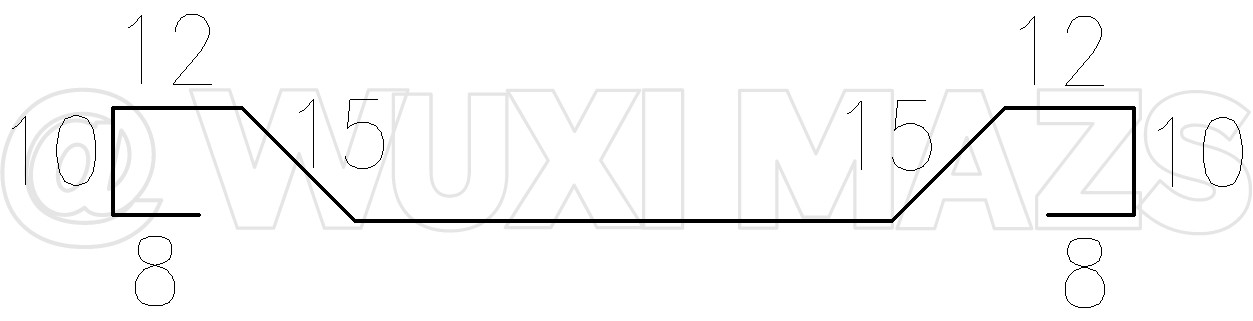

CNC Sheet Metal Panel Bender can be tailored to your specific requirements. From material type and thickness to bend angle and radius, you have the flexibility to customize each operation, such as circular arc, crushed edge, loop type, closed type, complex sheet, etc.
The Automatic Bending Center should be inspected prior to shipping and should be securely packaged to avoid damage during shipping. The box should be sealed with heavy-duty tape to ensure that the box is secure during transit.
It is recommended that the customer purchase insurance for the Automatic Bending Center to ensure that it is protected in the event of damage or loss during shipping.
