WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1411 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | Automatic Bending Center | Waterproof Rating: | IPX-5 |
|---|---|---|---|
| Feeding Method: | Suction Cup | Position Method: | Y Axis Three Positioning Rulers |
| Work Table Structure: | Brush | Suitable Material: | Stainless Steel, Aluminum Plate, Cold Plate |
| Panel Requirement: | Smooth Panel Surface, No Punching Nor Holes, Suction Cup Adsorption | Max. Bending Size: | 1400* 1400mm |
| Highlight: | MAZS 10000kg Automatic Panel Bender,Automatic Panel Bender 0.35mm,MAZS 10000kg CNC Sheet Metal Bender |
||

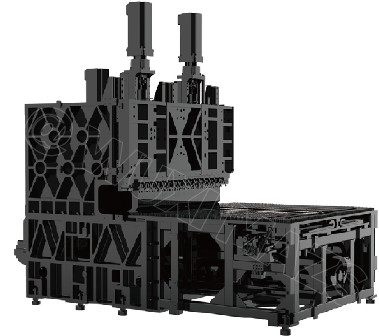

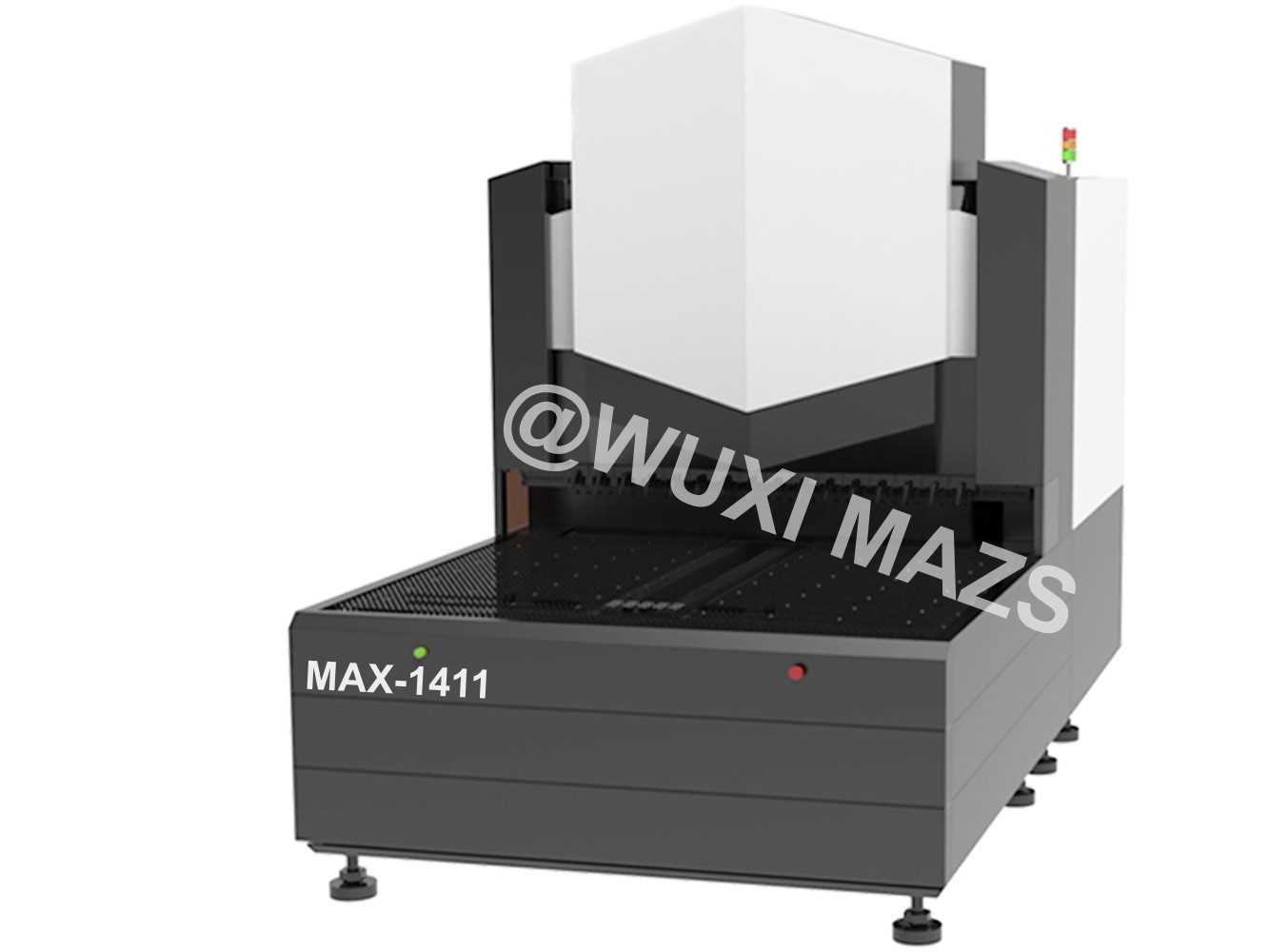

MAX-1411 10000kg Automatic Sheet Bending Machine For 0.35mm Minimum Panel Thickness Bending Center
The special features of this product include advanced software drivers, reliable hardware circuits and solid mechanical structures. It is a very inspiring result for the sheet metal industry. With this center, it is now possible to get a better production outcome.
The Intelligent automatic bending center is a great example of high-tech development and production. It shows what can be achieved by industry with technology today.
| Items |
Technical Parameters |
| Feeding method | suction cup |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Positioning method | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 1400mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 34Kw |
| Average power | about 1.5Kw |
| Noise | 50dB |
| Machine size | 365*190*290cm |
| Total machine weight | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | |
| UST 265N/mm2 aluminum panel 1.6mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140*210mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 1400* 1400mm |
| Axis qty. | standard synchronized 11 axis |
| Power hinge knife | standard |
| Machine color | as photo, customized is accepted |
We offer a full range of technical support and service for our Automatic Bending Center products. Our experienced technicians are available to provide installation, maintenance, repair, and troubleshooting assistance. We also offer training sessions to ensure that users are able to make full use of the features and capabilities of the product.
In addition, we provide 24/7 customer support via phone and email. Our support team is also available to answer any questions or concerns you may have about the product. For more information, please contact us at your convenience.
