WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |

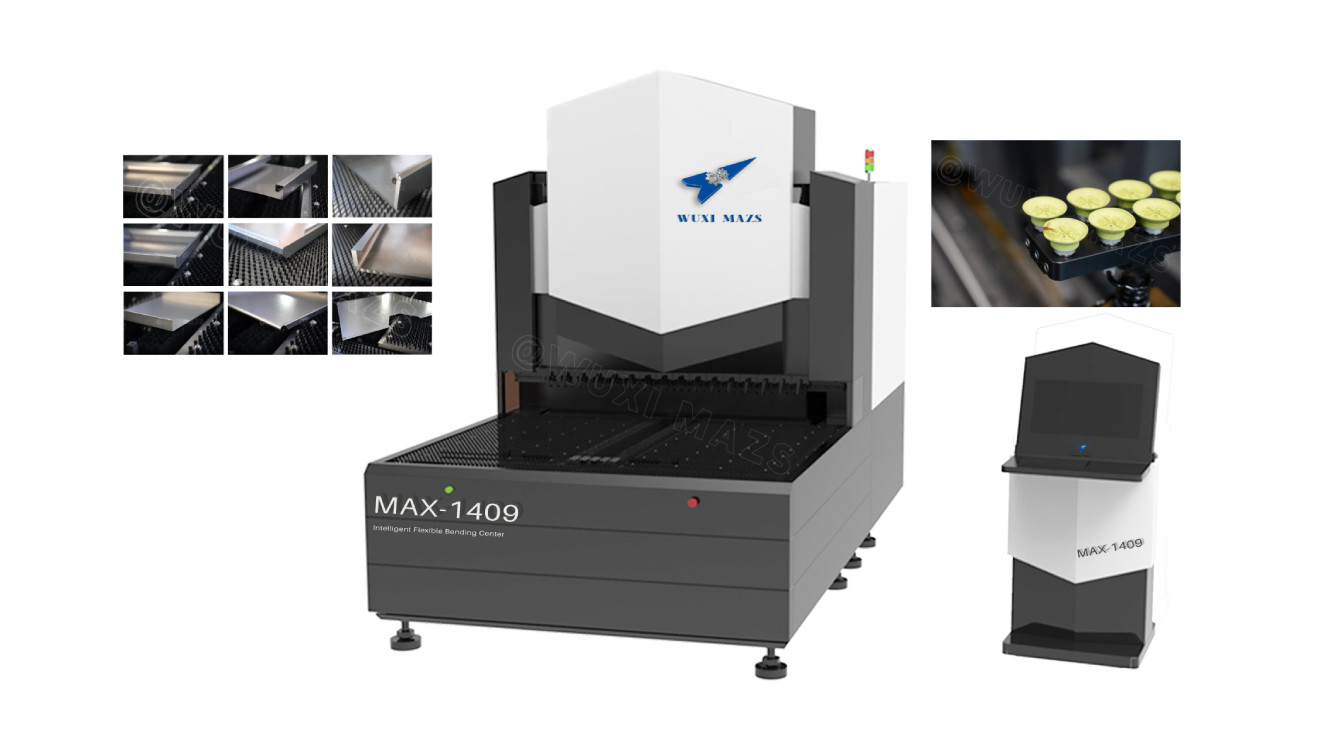

| Model Number: | MAX-1409 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | Automatic Bending Center | Control System: | CNC |
|---|---|---|---|
| Axis Number: | 9 | Rated Bending Speed: | 0.2 Second/time |
| Max Bending Length: | 1400mm | Bending Height: | 170mm |
| Max Bending Capacity: | 1.6mm | Power Consumption: | 1.5KW |
| Highlight: | CNC Automatic Bending Center,Automatic Bending Center 1.6mm Thickness,CNC Sheet Metal Bender 0.2 Second/time |
||
The Intelligent Automatic Bending Center has achieved tremendous success with the introduction of its servo flexible bending center. Developed solely in-house, the products are designed in every aspect of software, hardware or mechanical structures.
The automatic bending center is created specially for the sheet metal industry, aiming to raise productivity, reduce labor intensity and demonstrate the corporation's professional image. It has caught the eyes of the buyers from domestic and overseas market, spreading across up to ten industries. Since its launch, it has spread warm responses from various consumers.
| Item | Technical Parameters |
| Max. bending speed | 0.2 second/time |
| Max. bending width | 1400mm |
| Max. bending hight | 170mm |
| Rated voltage | 380v |
| Motor total power | 34Kw |
| Average power | about 1.5Kw |
| Noise | about 50dB |
| Machine size | 365* 190*290cm |
| Total machine weight | about 10t |
|
Max. bending thickness (thicker panel customizable) |
UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | |
| UST 265N/ mm2 aluminum panel 1 . 6mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming, minimum inner size | 140* 210mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 1400* 1400mm |
| Axis QTY | standard synchronized 9 axises |
| Hinge knife | common hinge knife |
Packaging and Shipping for CNC Bending Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.
