WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1409 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Min. Panel Thickness: | 0.35mm | Bending Height: | 170mm |
|---|---|---|---|
| Weight: | 10000kg | Max Bending Capacity: | 1.6mm |
| Control System: | CNC Control System | Axis Positioning Accuracy: | ±0.02mm |
| Power Supply: | 380V | Max Bending Length: | 1400mm |
| Highlight: | 25KW Panel Bender machine,Panel Bender machine 0.35mm,sheet metal press brake |
||

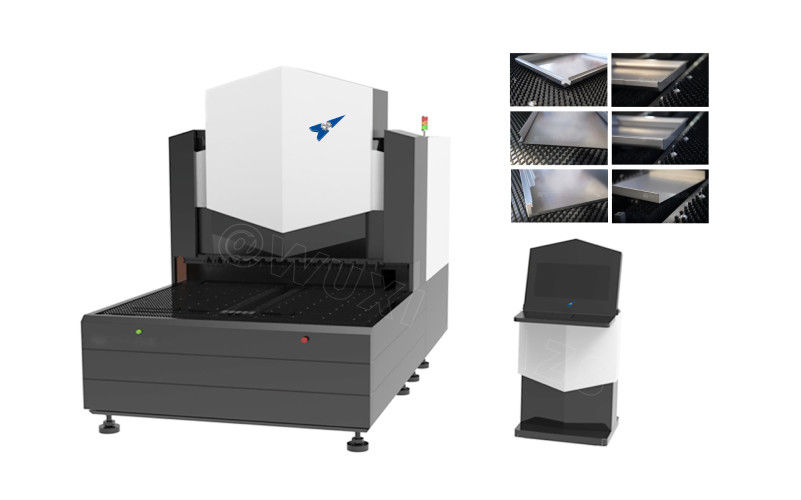

25KW Sheet Metal Panel Bender with Min. Panel Thickness 0.35mm and Bending Height 170mm
|
Item
|
MAX-1409
|
|
Max. bending speed
|
0 . 2 second/time
|
|
Max. bending width
|
1400mm
|
|
Max. bending hight
|
170mm
|
|
Rated voltage
|
380v
|
|
Motor total power
|
34Kw
|
|
Average power
|
about 1.5Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
365* 190*290cm
|
|
Total machine weight
|
about 10t
|
|
Max. bending thickness
(thicker panel customizable)
|
UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm
|
|
UST 4 1 0 N/ mm2 cold panel 1.2 mm
|
|
|
UST 265N/ mm2 aluminum panel 1.6mm
|
|
|
Minimum panel thickness
|
0 . 35mm
|
|
Four sides forming, minimum inner size
|
140* 210mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
1400* 1400mm
|
|
Axis QTY
|
9 axises
|
|
Hinge knife
|
common
|
The Automatic Bending Center is packaged in a standard cardboard box and shipped accordingly. Foam inserts are used to protect the product during transit. The package is sealed and labeled with the customer's name, address, and product information.
To ensure delivery of the Automatic Bending Center in a timely manner, a tracked shipping service is used. Upon delivery, the customer must inspect the product for any visible damage and sign the delivery receipt. In the event of any damage, the customer must contact the shipper immediately.
A: The Brand Name is MAZS.
Q: What is the Model Number?
A: The Model Number is MAX-**09.
Q: What is the Place of Origin?
A: The Place of Origin is China.
Q: What are the Certifications?
A: The Certifications are CE and ISO.
Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 1 set.
