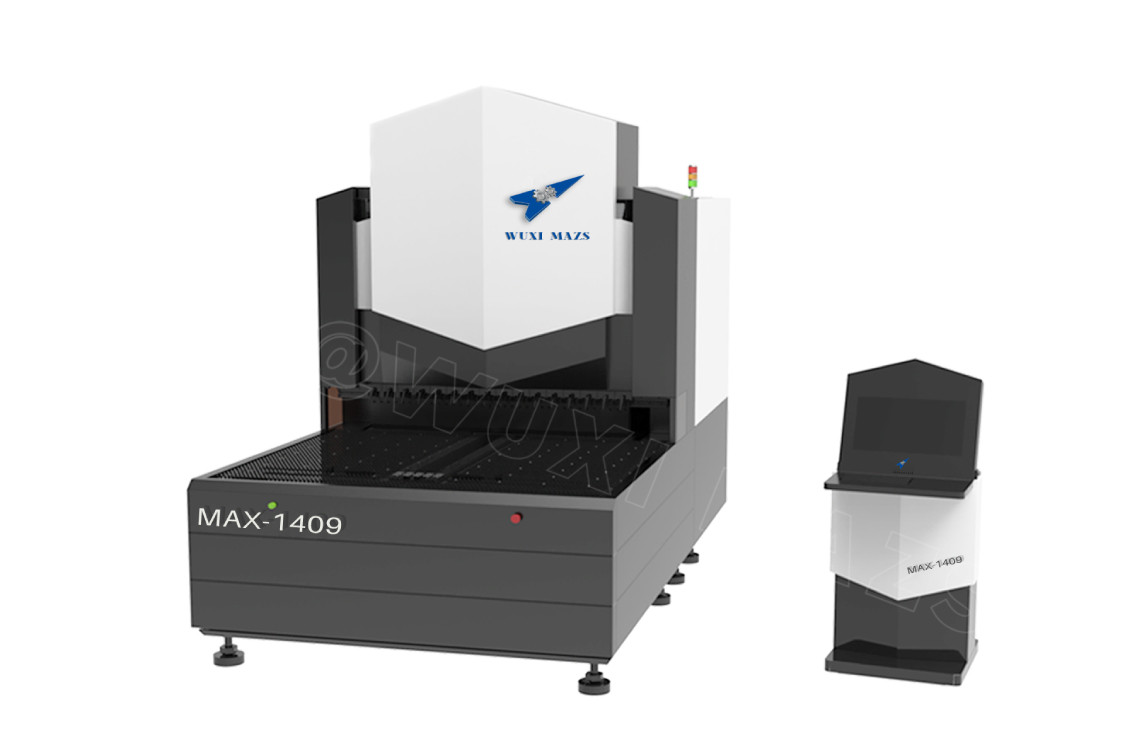

MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine

MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine
MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine
Basic Information
Place of Origin: China
Brand Name: MAZS
Certification: CE, ISO
Model Number: MAX-1409
Minimum Order Quantity: 1 Set
Price: RMB/USD/EURO
Packaging Details: wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time: 60 days to 120 days
Payment Terms: T/T or L/C
Supply Ability: 50 to 60 sets per month
Get Best Price Contact Now
Product Name: Automatic Bending Center Waterproof Rating: IPX-5

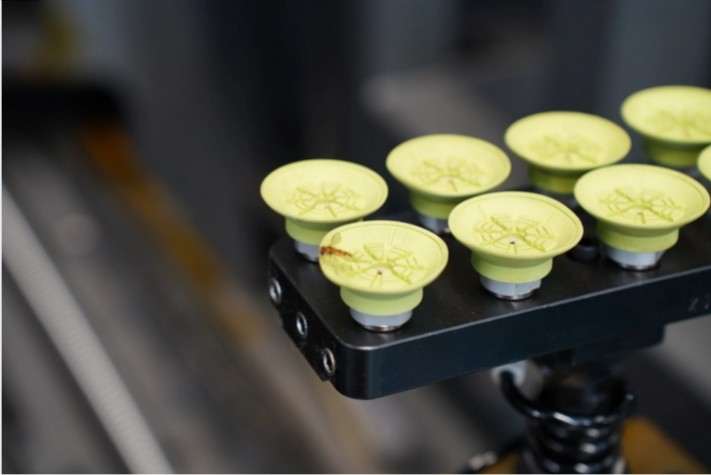

Feeding Method: Suction Cup Position Method: Y Axis Three Positioning Rulers
Max Bending Angle: 180° Axis Positioning Accuracy: ±0.02mm
Rated Bending Speed: 0.2 Second/time Bending Thickness: Aluminum Plate 1.6mm
Highlight:

ISO9001 Automatic Bending Center

,

Automatic Bending Center 0.2 Second/time

,

1.6mm panel bending machine

MAX-1409 AC380V/50Hz Automatic Bending Center 170mm Bending Height

Product Description:

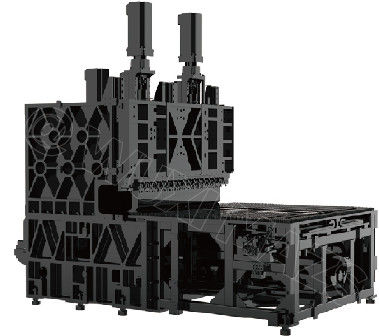

The Intelligent automatic bending center has developed a servo flexible bending center. This product was independently researched and developed, from software drivers, hardware circuits and mechanical structures. It is a high-tech product designed for the sheet metal industry with the purpose of improving production efficiency, reducing labor intensity and presenting a better corporate image.
The automatic bending center has won very good reviews from the domestic and overseas consumers of various industries. It has become a great necessity for many businesses to gain higher profits!



Features:

* Universal bending tool.
* Consistent quality.
* Proprietary algorithm managing tools path.
* Guarantees exact and constant bending movements.
* Reduces scrap.
* Makes machine reliable.
* The automatic, flexible bending solution.
* Easy maintenance and low cost.
* Lower power consumption.



Technical Parameters:

Item MAX-1409
Max. bending speed 0.2 second/time
Max. bending width 1400mm
Max. bending hight 170mm
Rated voltage 380v
Motor total power 34Kw
Average power about 1.5Kw
Noise about 50dB
Machine size 365* 190*290cm
Total machine weight about 10t

Max. bending thickness

(thicker panel customizable)

 UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
UST 265N/ mm2 aluminum panel 1 . 6mm
Minimum panel thickness 0.35mm
Four sides forming, minimum inner size 140* 210mm
Double sides forming minimum inner size 140mm
Max. bending size 1400* 1400mm
Axis QTY standard synchronized 9 axises
Hinge knife common hinge knife

MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine 0

Applications:

The automatic bending center is a machine designed to enable maximum productivity as well as a reduced labor cost for fabricating sheet metal.
This machine is well-suited for a variety of applications ranging from filing cabinets to tool cabinets, and from air conditioning to kitchenware. Furthermore, the automatic bending center is also useful in the door, ventilation, refrigeration, purification, furniture, decoration and elevator industries.
MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine 1

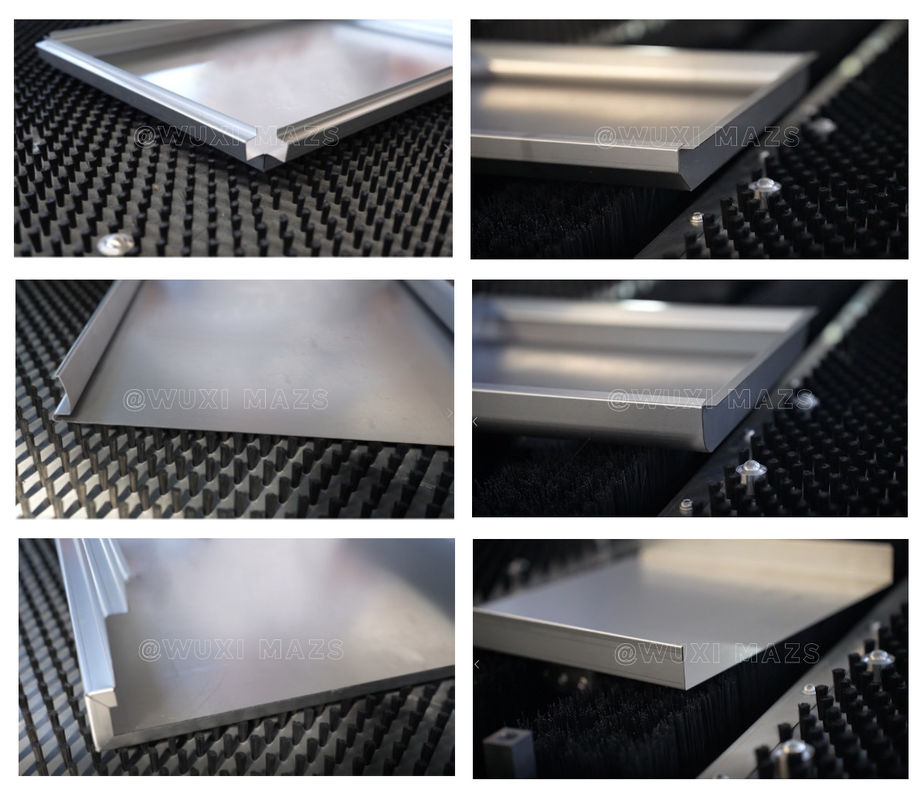

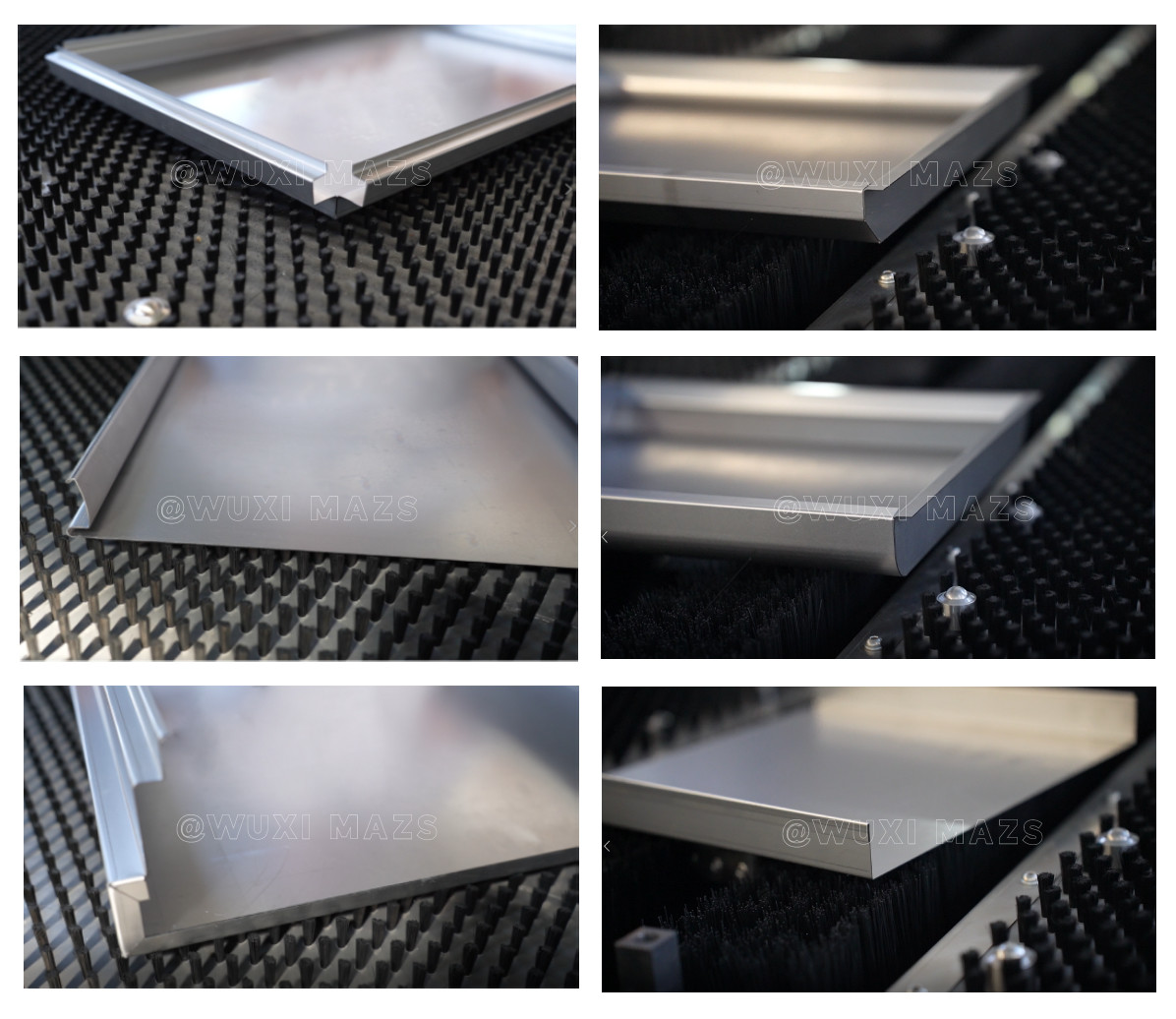

Bending Examples:

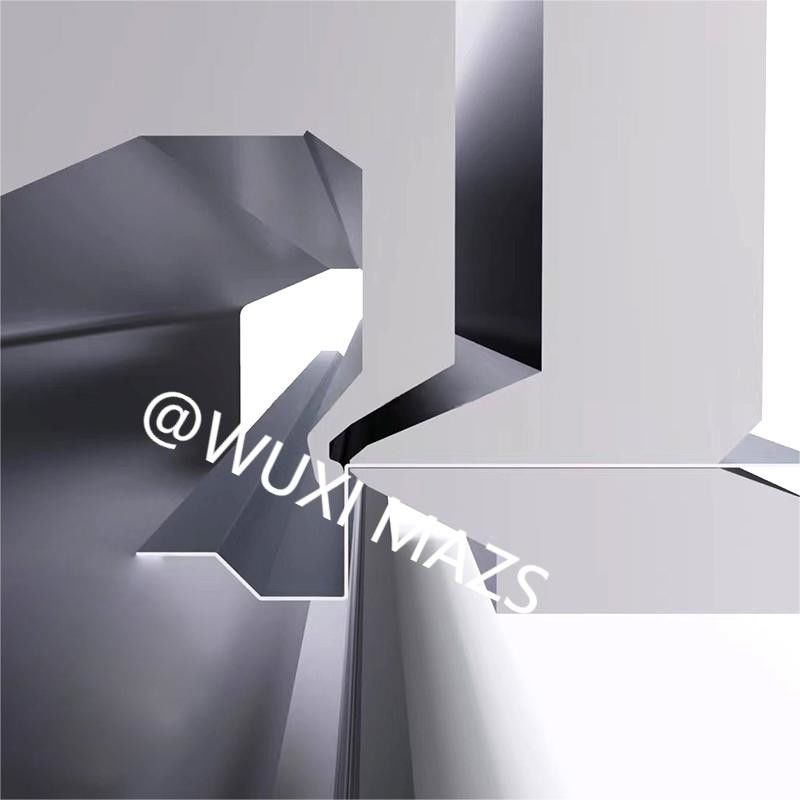

The intelligent flexible bending center uses universal bending mold. Various shapes of bending can be achieved by use of one set of mold. No need to make other customized molds.
It can easily achieve sheet metal bending requirements for circular arc, crushed / pressed edge, loop shape, closed shape, and other complex shapes.
MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine 2


Support and Services:

We provide comprehensive technical support and services for Automatic Bending Center products. Our technical team is composed of experienced professionals who understand the latest technologies and are available to answer your questions and provide solutions to any technical issue you may have.

Technical Support:

Our technical support team can provide assistance with installation, troubleshooting, and maintenance of your Automatic Bending Center products. We can provide technical advice and support regarding system configuration, software installation, use, and upgrades. We can also provide help with hardware components, such as motors, controllers, and sensors.

Service:

We offer a wide range of services for Automatic Bending Centers, including preventive maintenance, emergency repairs, and upgrades. We can also provide assistance with system integration and testing. We can diagnose any problems and provide solutions to ensure the optimal performance of your Automatic Bending Center.



Packing and Shipping:

Packaging and Shipping of Automatic Bending Center:
The Automatic Bending Center will be securely packaged in a protective cardboard box, and shipped with a reliable carrier. The package will include all the necessary materials for assembly, installation, and maintenance.

MAX-1409 Automatic Bending Center With 170mm Bending Height Panel Bending Machine 3



FAQ:

Q1: What is the brand name of the Automatic Bending Center?
A1: The brand name of the Automatic Bending Center is MAZS.
Q2: What is the model number of the Automatic Bending Center?
A2: The model number of the Automatic Bending Center is MAX-**09.
Q3: Where is the Automatic Bending Center manufactured?
A3: The Automatic Bending Center is manufactured in China.
Q4: What certifications does the Automatic Bending Center have?
A4: The Automatic Bending Center has IE and ISO certifications.
Q5: What is the minimum order quantity for the Automatic Bending Center?
A5: The minimum order quantity for the Automatic Bending Center is 1 set.
