WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1409 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Axis Positioning Accuracy: | ±0.02mm | Weight: | 10000kg |
|---|---|---|---|
| Model: | MAX-1409 | Rated Bending Speed: | 0.2 Second/time |
| Max Bending Length: | 1400mm | Motor Power: | 25KW |
| Min. Panel Thickness: | 0.35mm | Power Consumption: | 1.5KW |
| Highlight: | CNC Sheet Metal Panel Bender ODM,Sheet Metal Panel Bender 1.5KW,0.35mm edge bending machine |
||

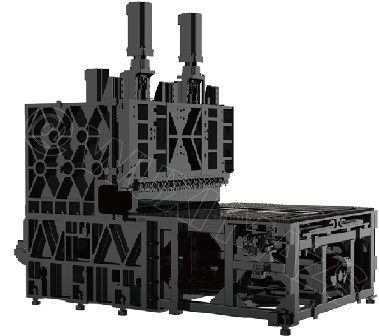

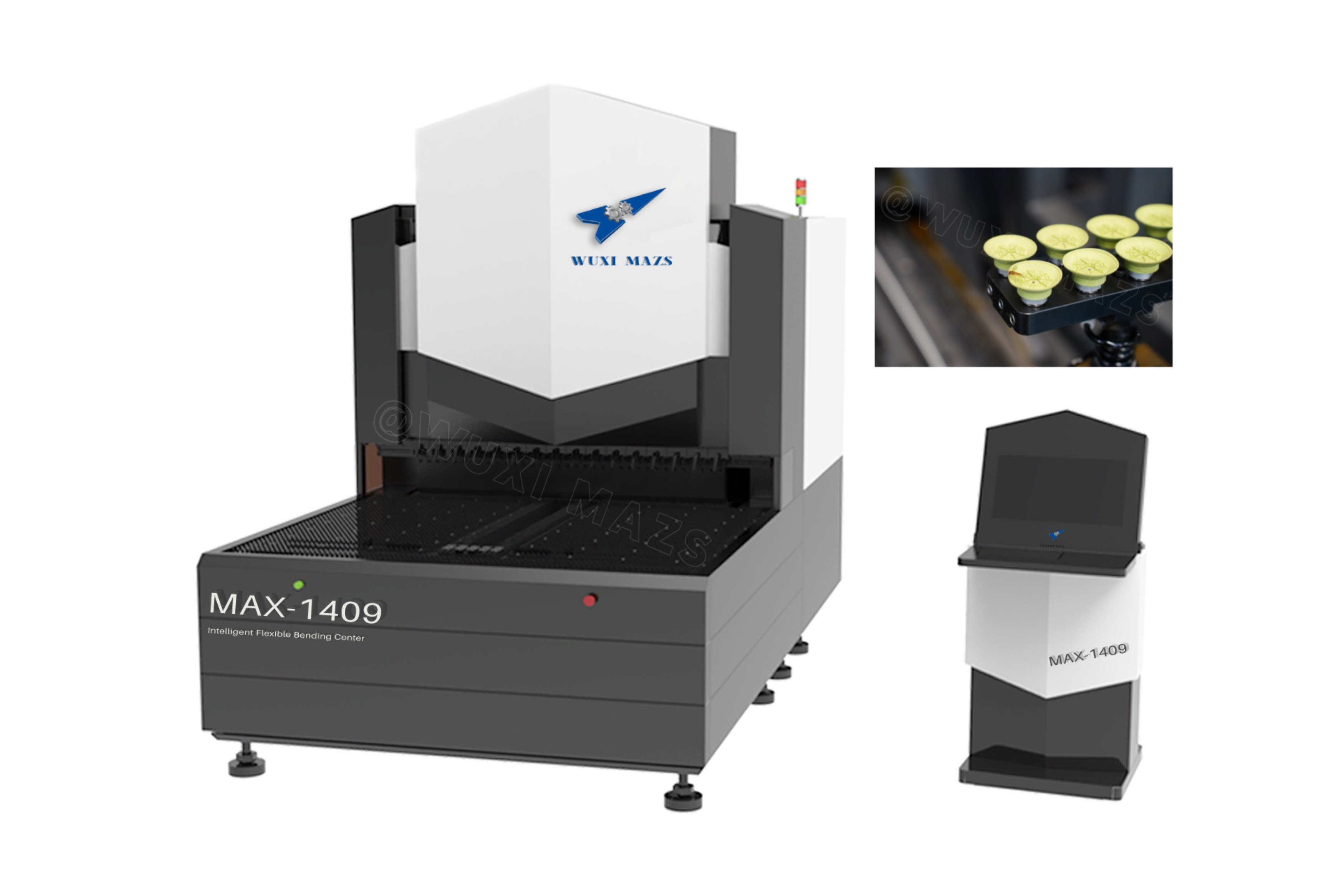

CNC Sheet Metal Panel Bender with 1.5KW Power Consumption and 0.35mm Min. Panel Thickness
|
Item
|
Technical Parameters |
|
Max. bending speed
|
0.2 second/time
|
|
Max. bending width
|
1400mm
|
|
Max. bending hight
|
170mm
|
|
Rated voltage
|
380v
|
|
Motor total power
|
34Kw
|
|
Average power
|
about 1.5Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
365* 190*290cm
|
|
Total machine weight
|
about 10t
|
|
Max. bending thickness
(thicker panel customizable)
|
UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm
|
|
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
|
|
|
UST 265N/ mm2 aluminum panel 1 . 6mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming, minimum inner size
|
140* 210mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
1400* 1400mm
|
|
Axis QTY
|
standard synchronized 9 axises
|
|
Hinge knife
|
common hinge knife
|
