2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle

2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle
2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle
Basic Information
Place of Origin: China
Brand Name: MAZS
Certification: CE, ISO
Model Number: MAY-**15A
Minimum Order Quantity: 1 Set
Price: RMB/USD/EURO
Packaging Details: Wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time: 60 days to 120 days
Payment Terms: T/T or L/C
Supply Ability: 50 to 60 sets per month
Get Best Price Contact Now
Material Thickness: 0.35-3.0mm Max Feeding Length: 2500mm
Average Power: 2.9KW Control System: CNC Control System
Max Bending Angle: 180° Total Power: 79KW
Max Punching Thickness: 3.0mm Rated Voltage: 380V
Highlight:

2500mm 2.9KW Panel Bending Machine

,

Panel Bending Machine 2.9KW

,

Panel Bender Center 180deg

2500mm Feeding Automatic Sheet Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle

Product Description:

This automatic sheet bending machine, also known as an auto bender machine or CNC sheet metal folder, is a type of panel bending machine used to bend and form sheet metal into various shapes. It is powered by a total of 79KW of energy with an average power of 2.9KW. It has a maximum feeding length of 2500mm and a maximum feeding speed of 90m/min, allowing it to quickly form sheet metal into desired shapes. It also features a maximum bending angle of 180°, allowing it to form complex shapes with ease. This panel bending machine is ideal for large-scale industrial applications.

Features:

- Fast speed, only 0.2 seconds per time.
- High safety and consistency.
- Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
- Simple maintenance and low cost.
-Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.

Technical Parameters:

Items
Technical Parameters for Panel Bending Center
MAY-1415
MAY-2015
MAY-2515
Feeding method
Pressing arm
Pressing arm
Pressing arm
Work table structure
Brush
Brush
Brush
System minimum accuracy
0.001mm
0.001mm
0.001mm
Positioning method
Y axis double lift automatic positioning tools
Y axis double lift automatic positioning tools
Y axis double lift automatic positioning tools
Max. bending speed
0.2 s/time
0.2 s/time
0.2 s/time
Max. bending width
1400mm
2000mm
2500mm
Max. bending height
170mm/300mm
170mm/300mm
170mm/300mm
Rated voltage
380V
380V
380V
Total motor power
38Kw
77Kw
79Kw
Average power
about 1.9Kw
about 2.6Kw
about 2.9Kw
Noise
50dB
50dB
50dB
Machine size
440*190*290cm
510*265* 330cm
565* 300* 340cm
Total machine weight
about 15t
about 18t
about 23t
Max. bending thickness (thicker panel customized)
UST 515N/ mm2 304 stainless steel 1 . 5 mm
UST 515N/ mm2 304 stainless steel 1 . 5 mm
UST 515N/ mm2 304 stainless steel 1 . 5 mm
UST 410N/mm2 cold panel 2 . 0 mm
UST 4 10 N/ mm2 cold panel 2 . 0 mm
UST 410N/mm2 cold panel 2 . 0 mm
UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm
UST 265N/ mm2 aluminum panel3.0mm
UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm
Minimum panel thickness
0.35mm
0.35mm
0.35mm
Four sides forming minimum inner size
140* 190mm
140* 190mm
140* 190mm
Double sides forming minimum inner size
140mm
140mm
140mm
Max. bending size
1400* 1400mm
2000*1500mm
2500*1500mm
Axis qty.
standard synchronized 15 axis
standard synchronized 15 axis
standard synchronized 15 axis
Power hinge knife
standard
standard
standard

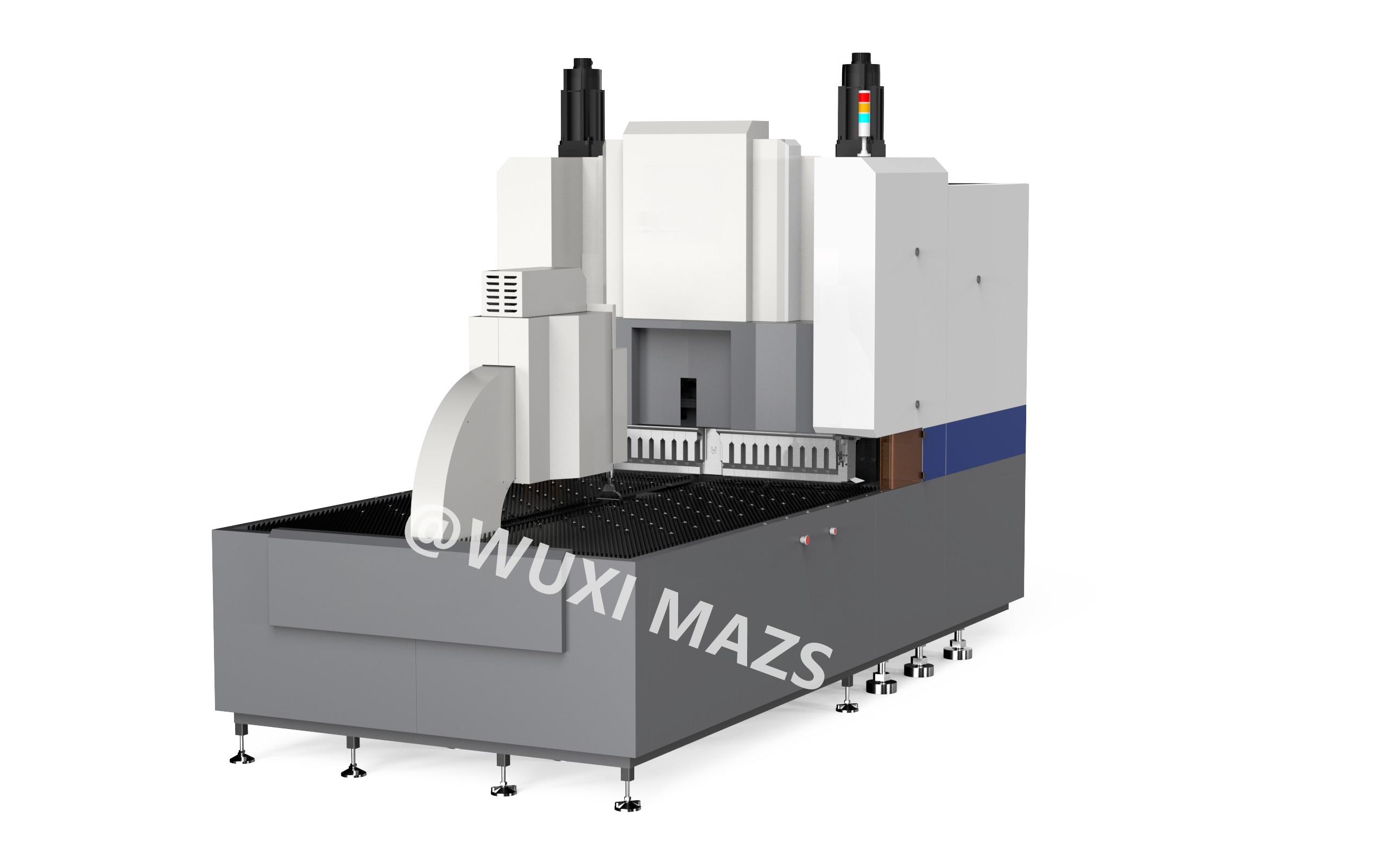

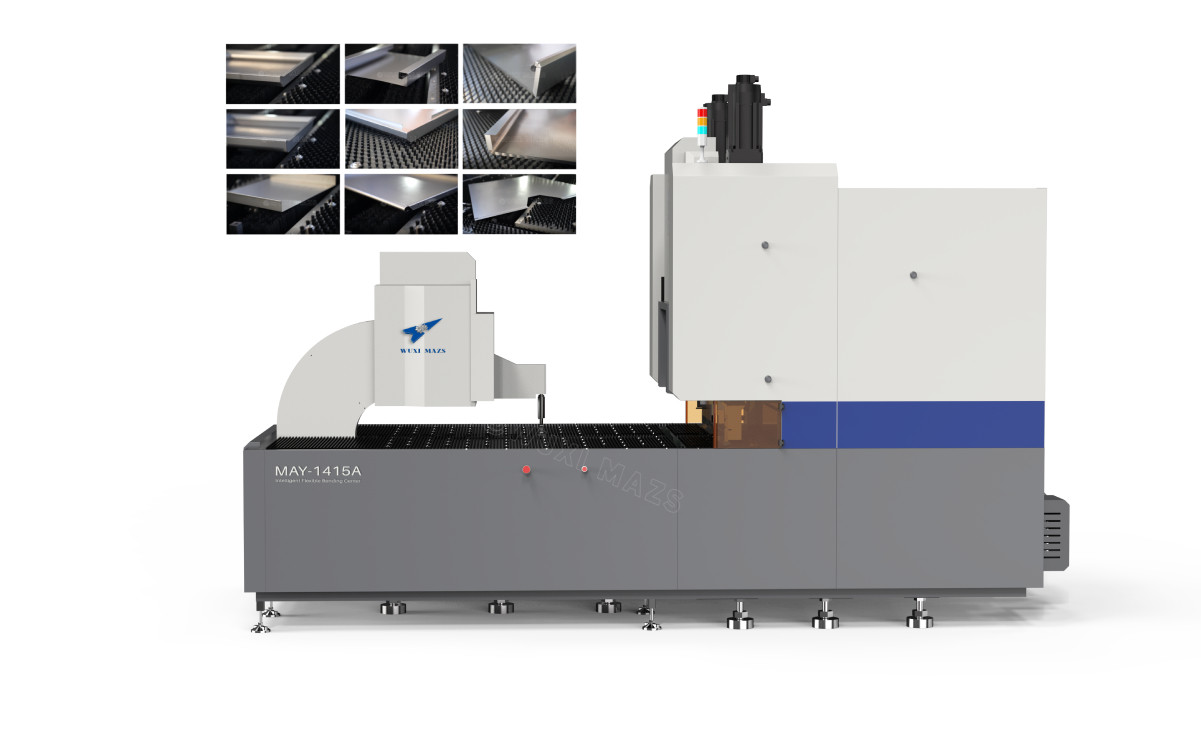

Machine photo for reference only:

2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 0

2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 1



Applications:

The Automatic Bending Center is a special designed high-performance machine, which is made to maximize productivity and consequentially minimize labor costs when it comes to sheet metal fabrication.
It’s application, not only in sheet metal fabrication, are numerous; such as in cabinets(eg. file cabinets, tool cabinets, outer guard covers, electrical cabinets, communication cabinets, gas cabinets, water meter cabinets, etc..), kitchenware(refrigerators, air conditioners, stoves, etc...), furniture, ventilation, purification, door industry, decoration, elevators and many other related metal forming fields.
2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 2

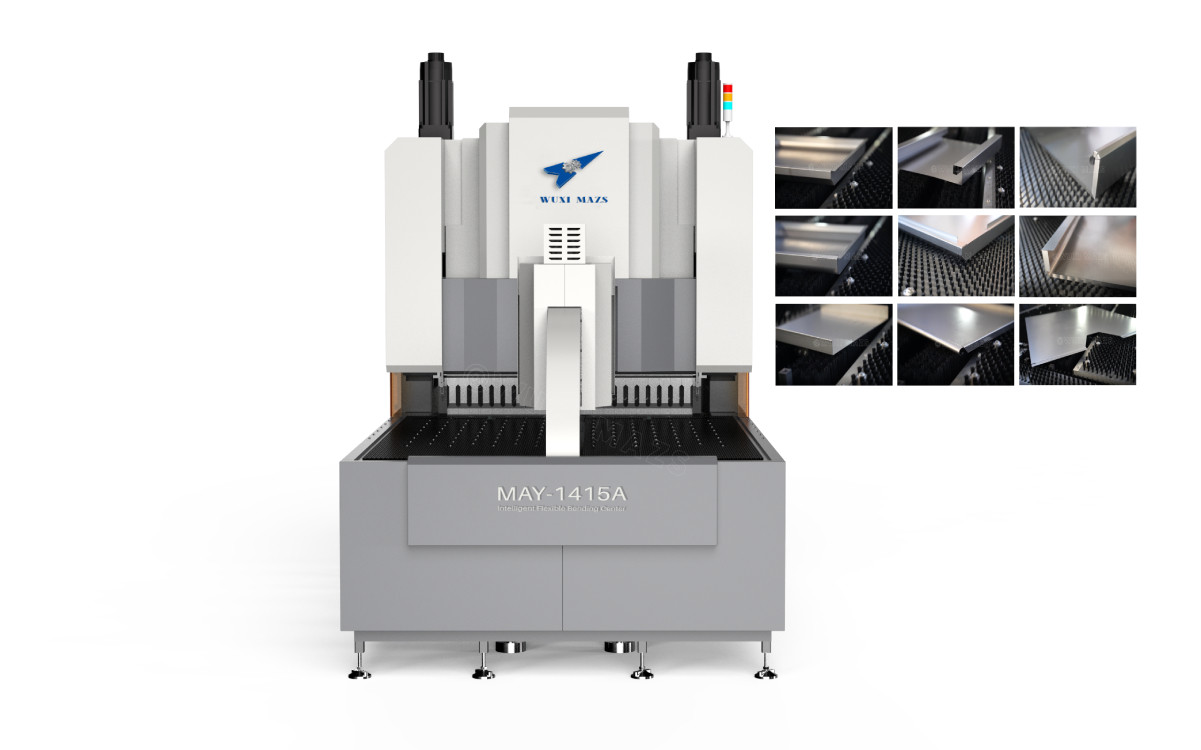

Bending Examples:

The flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.

2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 3





Support and Services:

MAZS provides:
* Safe stock spare parts
Provide users with a complete inventory of accessories, ensure that accessories and wearing parts are replaced in time, and escort users' daily production.
* 7x24 Online service
Provide 7x24 hours of after-sales online services, maximize the protection of user’s daily production plans, realizing worryfree after-sale service.
* Lifetime service tracking
Establish a uniquely encoded user profile tracking and recording the details of the operation of the device, and providing lifelong maintenance services for cooperative users.



Packing and Shipping:

Packaging and Shipping for Panel Bending Machine
The panel bending machine is shipped in a box containing the machine, a user manual and all necessary accessories. The box is then securely sealed and strapped down to a pallet for shipping.
The pallet is then wrapped in a protective material and secured with straps to ensure that it does not move during transit. The pallet is then placed on a truck or other carrier and shipped to the customer's location.
The customer must unpack the machine and accessories, read the user manual, and perform any necessary assembly instructions before using the machine.
2500mm Feeding Automatic Panel Bending Machine 3mm Max Bending Thickness 180° Max Bending Angle 4



FAQ:

Q1: What is the feeding type of CNC Bending Machine?
A1: MAY-**15 series intelligent panel bender adopts pressing arm feeding method.
Q2: How many axis it uses?
A2: Standard axis quantity is 15.
Q3: What kind of work pieces are the CNC Bending Machine suitable for?
A3: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.
Q4: What is the packaging details of the CNC Bending Machine?
A4: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q5: What certification does it have?
A5: ISO 9001:2000, ISO 9001:2008, CE.
Q6: Is it accepted the customized size?
A6: Yes, it could be designed and developed according to your specifications.
Q7: What functions do it have?
A7: It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application.
Q7: What is the warranty time?
A7: one year.
