WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15A |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Feeding Method: | Pressing Arm | Axis Quantity: | 15 |
|---|---|---|---|
| Work Table Structure: | Brush | System Minimum Accuracy: | 0.001mm |
| Positioning Method: | Y Axis Double Lift Automatic Positioning Tools | Material Thickness: | 0.35-3mm |
| Max Feeding Speed: | 90m/min | Max Bending Angle: | 180° |
| Highlight: | 2.5KW Panel Bending Machine,Panel Bending Machine 15 Axies,90m/Min CNC Sheet Metal Bender |
||
The full-auto bending process of the intelligent flexible bending center can reach maximum 0.2 seconds per time, which greatly reduces the cycle time of multilateral and multi-fold bending.
The intelligent flexible bending center does not require manual holding of the work pieces, and the bending process is fully automatic, which greatly reduces the safety hazards caused by workers' misoperation.
The intelligent flexible bending center can achieve automatic positioning of sheets and panel, with the positioning accuracy of 0.001mm. The formed products have higher consistency and are more suitable for mass production.
The intelligent flexible bending center reserves rich interfaces for convenient docking with upstream and downstream production lines. It can dock with the robotic arm to achieve automatic integrated loading and unloading.
The intelligent flexible bending center adopts a universal bending mold and achieves bending of various shapes through multi axis concurrent linkage and full servo control.
The intelligent flexible bending center has low technical requirements for workers, and ordinary workers can work after training without the need to hire experienced and skilled workers. At the same time, the bending process is fully automated, greatly saving labor and reducing the labor intensity of workers.
|
Items
|
Technical Parameters for MAY-2015A
|
|
Max. bending speed
|
0 . 2 second/time
|
|
Max. bending width
|
2000mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380v
|
|
Total motor power
|
77Kw
|
|
Average power
|
about 2. 5Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
510*265* 330cm
|
|
Total machine weight
|
about 1 8 t
|
|
Max. bending thickness
(thicker panel customizable)
|
UST 515N/ mm2 304 stainless steel 2.0 mm
|
|
UST 410N/ mm2 cold panel 3.0 mm
|
|
|
Minimum panel thickness
|
0 . 35mm
|
|
Four sides forming minimum inner size
|
160* 210mm
|
|
Two sides forming minimum inner size
|
160mm
|
|
Max. bending size
|
2000* 1500mm
|
|
Axis QTY
|
standard synchronized 15 axis
|
|
Power hinge knife
|
standard
|

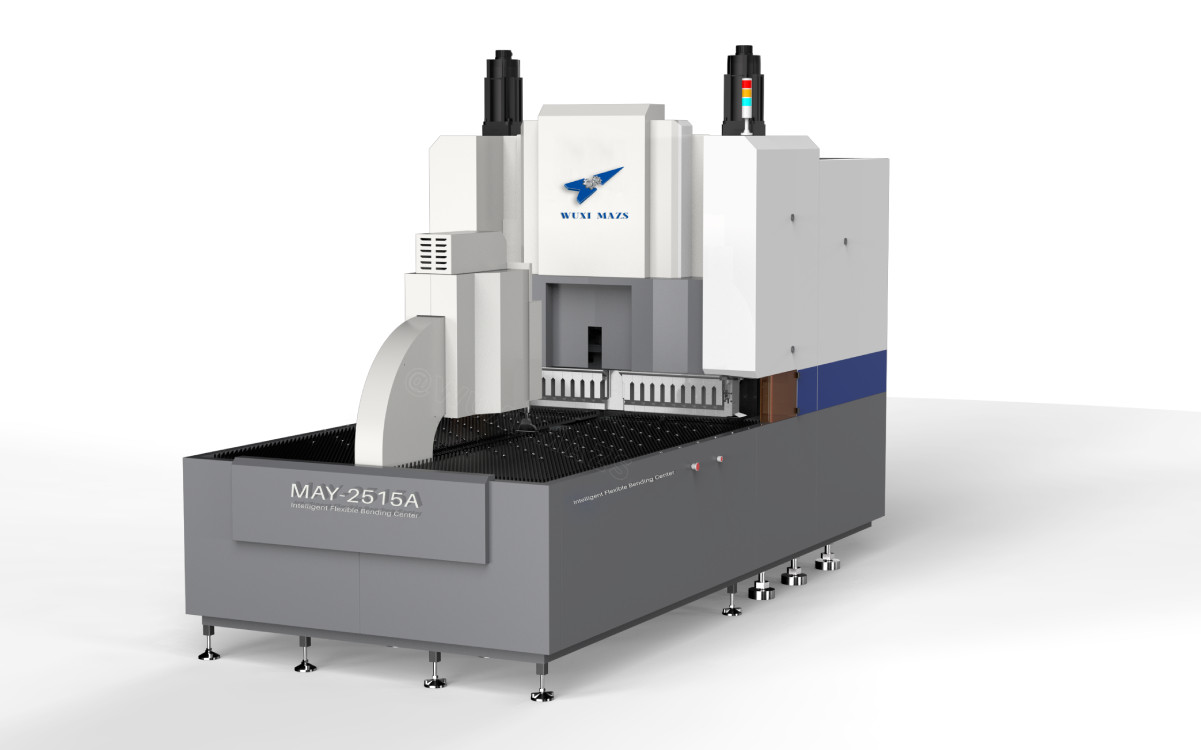

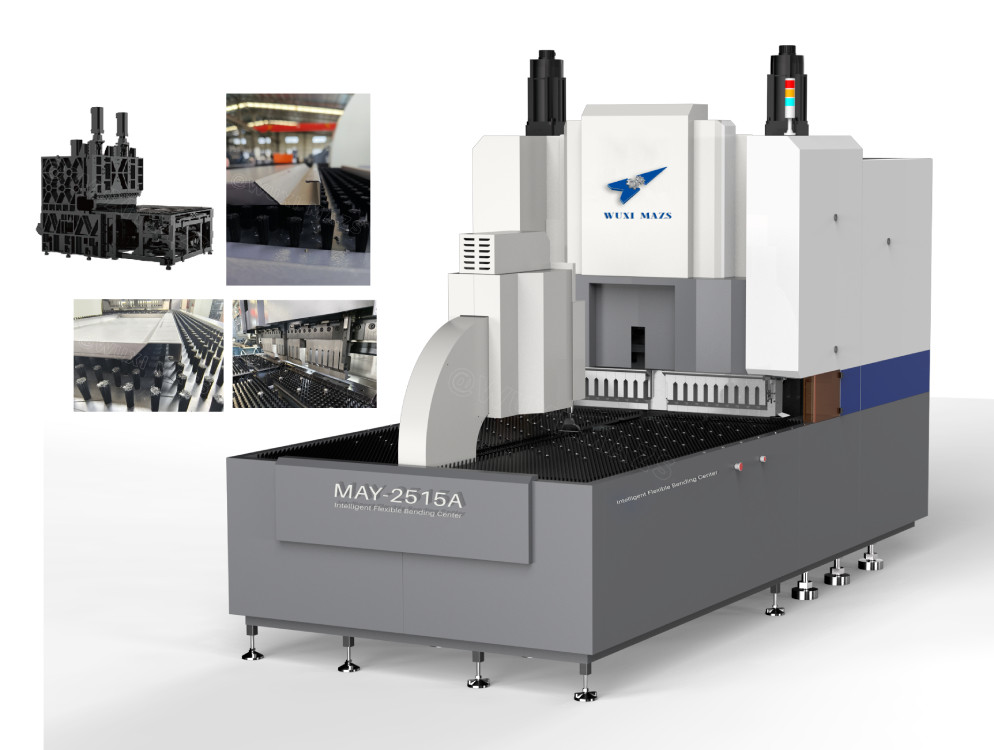

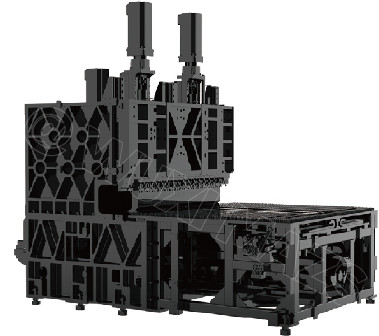

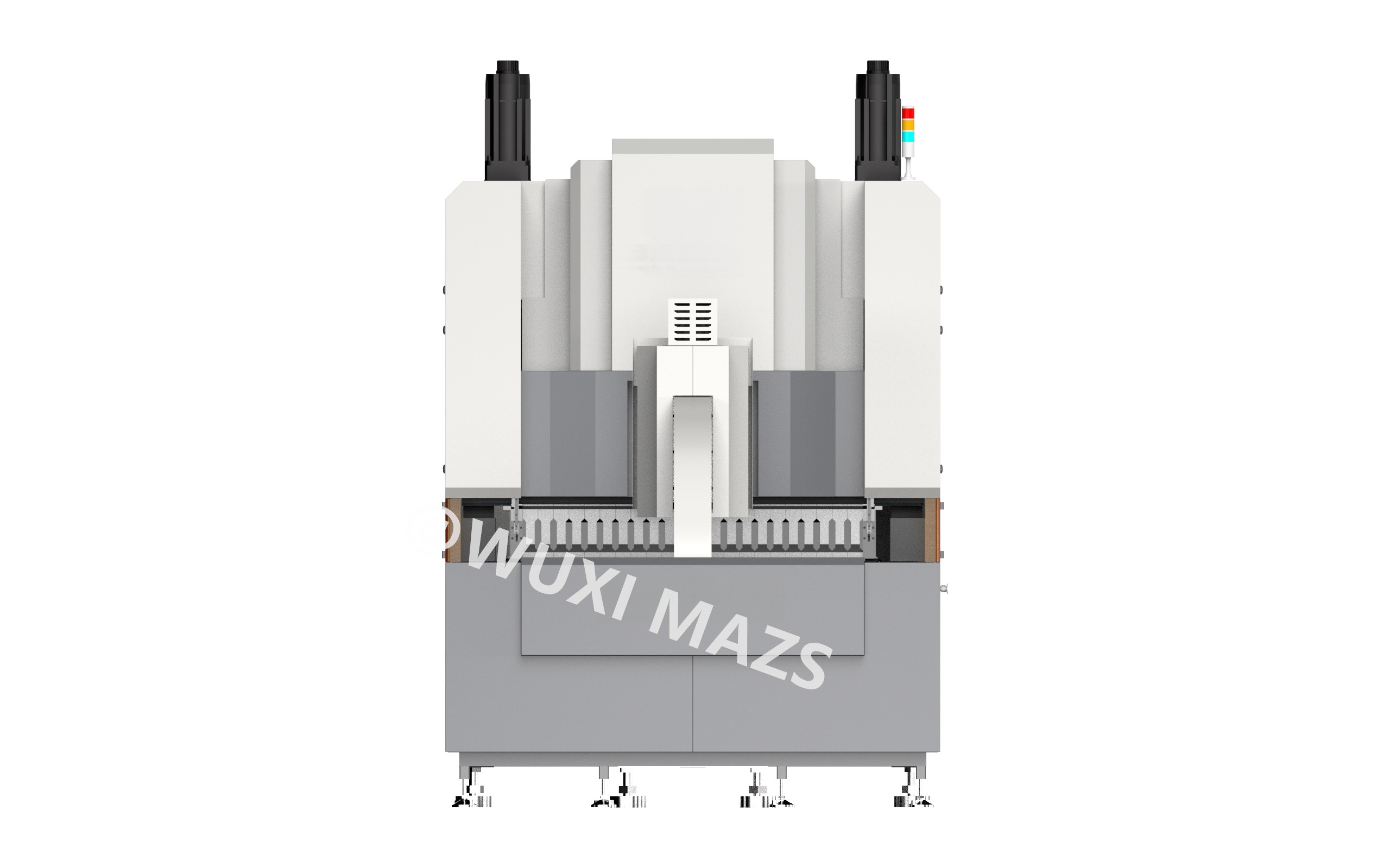

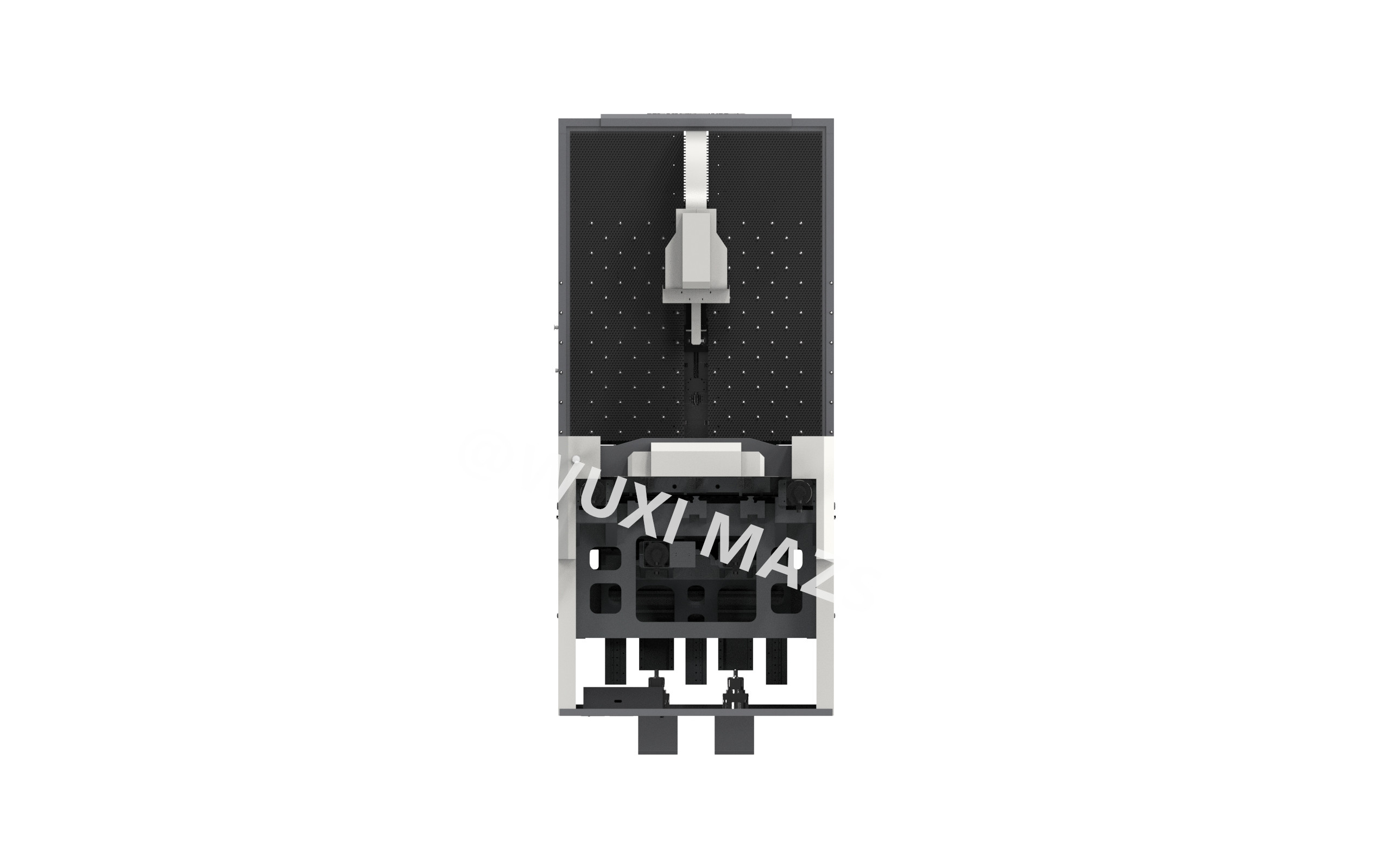

Machine photo for reference only:
