WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15A |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Bending Height: | 170mm | Max Feeding Length: | 2500mm |
|---|---|---|---|
| Product Name: | Panel Bending Machine | Max Bending Thickness: | 3mm |
| Material Thickness: | 0.35-3mm | Max Feeding Speed: | 90m/min |
| Average Power: | 2.9KW | Max Bending Width: | 2500mm |
| Highlight: | 2500mm Panel Bending Machine,Panel Bending Machine 170mm,2500mm Automatic Panel Bender |
||
The fully automatic bending process of the intelligent flexible bending center can achieve as fast as 0.2 seconds per tooling, greatly reducing the cycle time of multilateral and multi-fold bending.
The intelligent flexible bending center has low technical requirements for workers, and ordinary workers can work after training without the need to hire experienced and skilled workers. At the same time, the bending process is fully automatic, greatly saving labor and reducing the labor intensity of workers.
The intelligent flexible bending center does not require manual holding of workpieces, and the bending process is fully automatic, greatly reducing the safety hazards caused by workers' misoperation.

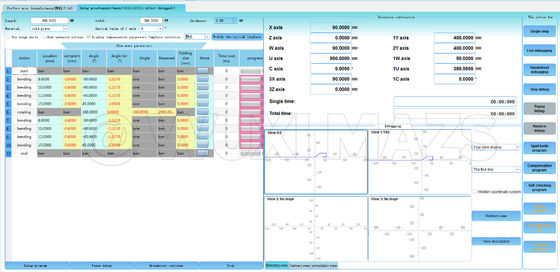

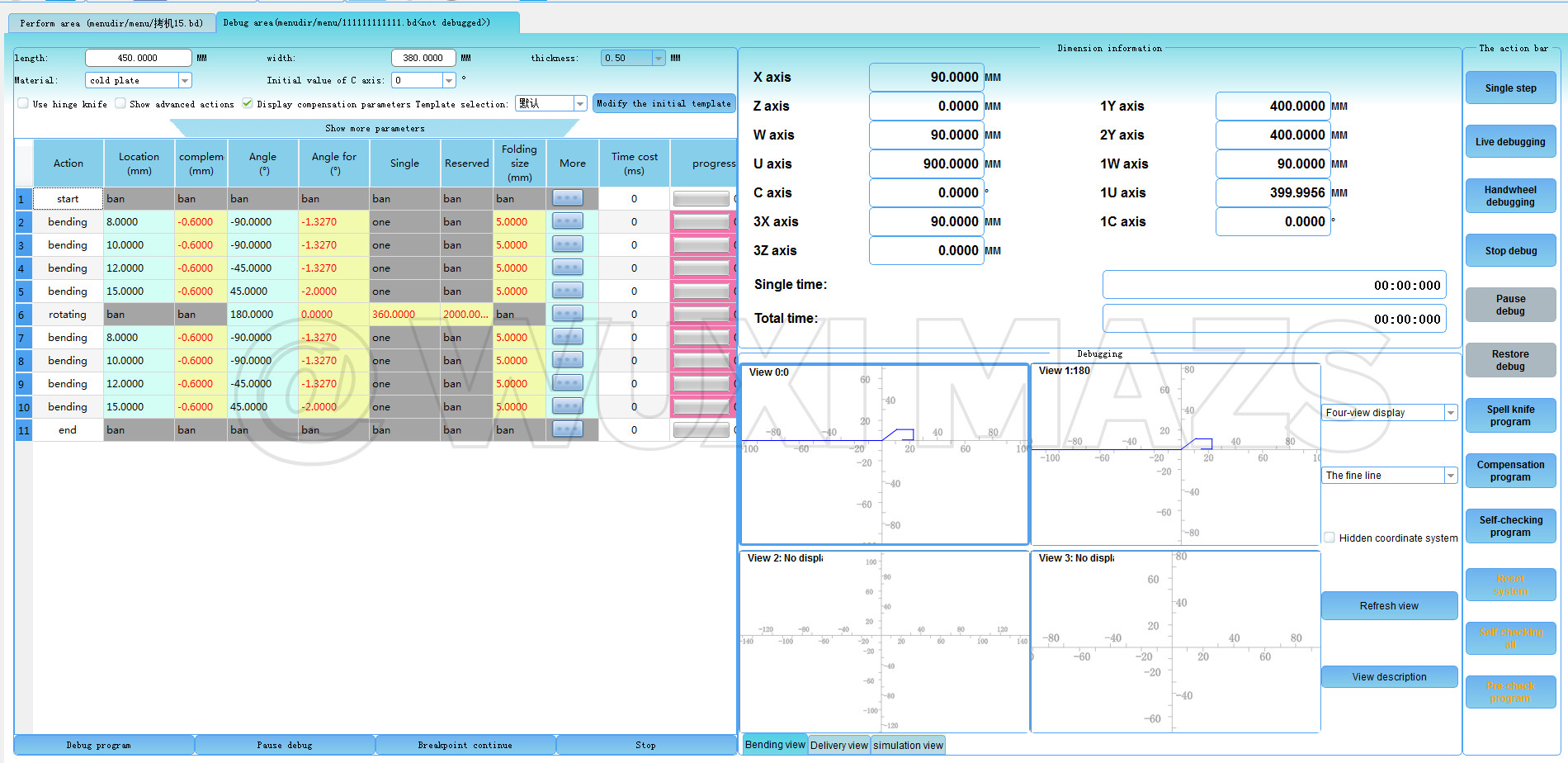

The intelligent flexible bending center adopts graphic visualization programming. Workers only need to input bending data based on the workpiece, and the system automatically generates bending instructions without the need for code programming. Ordinary workers can master it in 2 hours.

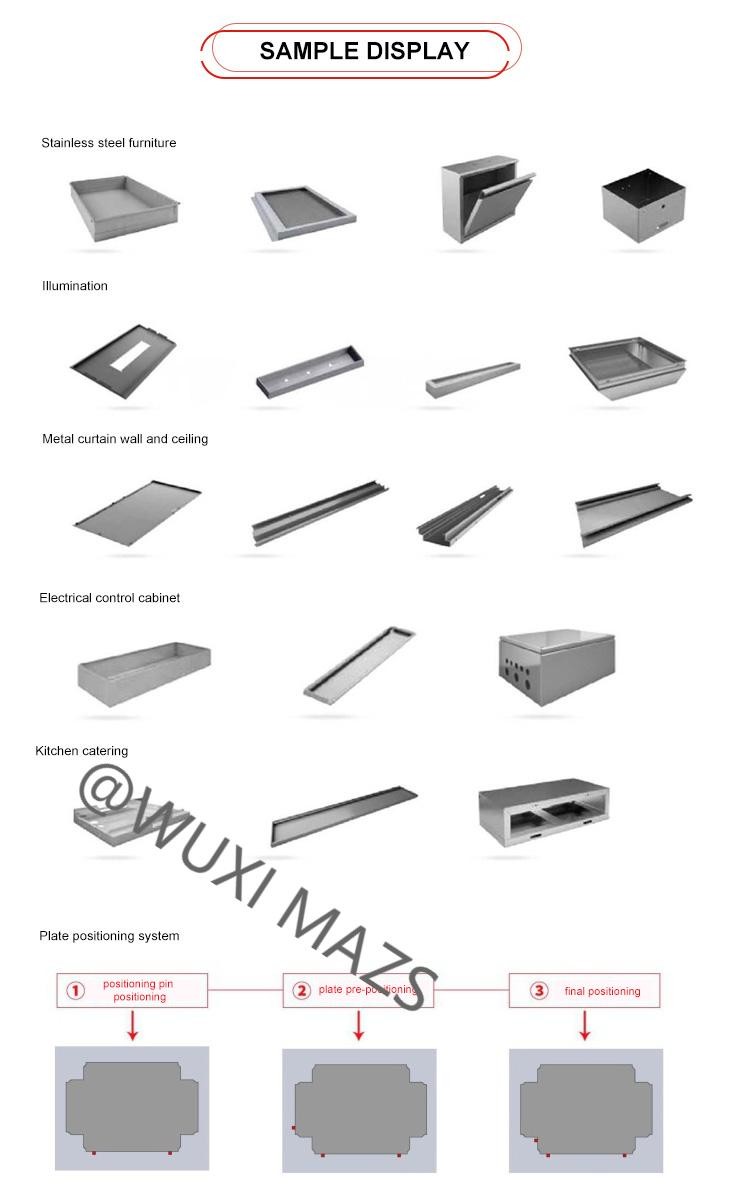

The intelligent flexible bending center can achieve automatic positioning of sheets, with a positioning accuracy of 0.001mm. The formed products have higher consistency and are more suitable for mass production.
The intelligent flexible bending center reserves rich interfaces for convenient docking with upstream and downstream production lines. It can dock with the robotic arm to achieve automatic integrated loading and unloading.
|
Items
|
Technical Parameters for Panel Bending Center
|
||
|
MAY-1415
|
MAY-2015
|
MAY-2515
|
|
|
Feeding method
|
Pressing arm
|
Pressing arm
|
Pressing arm
|
|
Work table structure
|
Brush
|
Brush
|
Brush
|
|
System minimum accuracy
|
0.001mm
|
0.001mm
|
0.001mm
|
|
Positioning method
|
Y axis double lift automatic positioning tools
|
Y axis double lift automatic positioning tools
|
Y axis double lift automatic positioning tools
|
|
Max. bending speed
|
0.2 s/time
|
0.2 s/time
|
0.2 s/time
|
|
Max. bending width
|
1400mm
|
2000mm
|
2500mm
|
|
Max. bending height
|
170mm/300mm
|
170mm/300mm
|
170mm/300mm
|
|
Rated voltage
|
380V
|
380V
|
380V
|
|
Total motor power
|
38Kw
|
77Kw
|
79Kw
|
|
Average power
|
about 1.9Kw
|
about 2.6Kw
|
about 2.9Kw
|
|
Noise
|
50dB
|
50dB
|
50dB
|
|
Machine size
|
440*190*290cm
|
510*265* 330cm
|
565* 300* 340cm
|
|
Total machine weight
|
about 15t
|
about 18t
|
about 23t
|
|
Max. bending thickness (thicker panel customized)
|
UST 515N/ mm2 304 stainless steel 1 . 5 mm
|
UST 515N/ mm2 304 stainless steel 1 . 5 mm
|
UST 515N/ mm2 304 stainless steel 1 . 5 mm
|
|
UST 410N/mm2 cold panel 2 . 0 mm
|
UST 4 10 N/ mm2 cold panel 2 . 0 mm
|
UST 410N/mm2 cold panel 2 . 0 mm
|
|
|
UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm
|
UST 265N/ mm2 aluminum panel3.0mm
|
UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm
|
|
|
Minimum panel thickness
|
0.35mm
|
0.35mm
|
0.35mm
|
|
Four sides forming minimum inner size
|
140* 190mm
|
140* 190mm
|
140* 190mm
|
|
Double sides forming minimum inner size
|
140mm
|
140mm
|
140mm
|
|
Max. bending size
|
1400* 1400mm
|
2000*1500mm
|
2500*1500mm
|
|
Axis qty.
|
standard synchronized 15 axis
|
standard synchronized 15 axis
|
standard synchronized 15 axis
|
|
Power hinge knife
|
standard
|
standard
|
standard
|
