2.5KW Edge Bending Machine Metal Sheet Bending Machine For Kitchenware

Name: 2.5KW Edge Bending Machine Metal Sheet Bending Machine For Kitchenware
Brand: MAZS
SKU: MAY-2015A
Rating: 4.7 (168 reviews)

Basic Information

Place of Origin:	China
Brand Name:	MAZS
Certification:	CE, ISO
Model Number:	MAY-2015A

Minimum Order Quantity:	1 Set
Price:	RMB/USD/EURO
Packaging Details:	wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time:	60 days to 120 days
Payment Terms:	T/T or L/C
Supply Ability:	50 to 60 sets per month

Get Best Price Contact Now

Product Name:	Panel Bending Machine	Axis Quantity:	15
Bending Height:	170mm	Max Feeding Speed:	90m/min
Max Feeding Length:	2500mm	Rated Voltage:	380V
Max Bending Width:	2500mm	Average Power:	2.5KW
Highlight:	2.5KW edge bending machine , 2500W edge bending machine , Metal Sheet Bending Machine For Kitchenware

High-Performance 2.5KW Panel Bending Machine for Kitchenware application

Product Description:

Panel Bending Machine is a high-speed, sheet metal panel bending machine that offers maximum bending thickness of 3mm and maximum feeding speed of 90m/min. With 77KW of total power, its average power is 2.5KW, which makes it highly efficient and productive. It is designed with the highest standards, ensuring high-speed panel bending and excellent performance. It is ideal for bending sheet metal panels and other materials with ease and accuracy. With its advanced features and reliable performance, this machine provides a cost effective solution for bending panels.

Features:

* High speed, with 0.2 s/time maximum bending speed.

* Cost saving, lower power consumption.

* Rapid prototyping of sheets, high consistency.

* MAZS intelligent bending center has rich software and hardware interfaces, laying a good foundation for intelligent factories.

* The control system realizes 15-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.

* The unbalanced load detection system can effectively protect the machine and the sheets.

* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.

* The cloud operation and maintenance management system can monitor the operation of the machine in real time, and can carry out all-round customized management of the company's business.

* Friendly man-machine interface, easy to understand, flexible programming.

* For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming.

Technical Parameters:

Items	Technical Parameters for Panel Bending Center
Model No.	MAY-2015A
Feeding method	Pressing arm
Work table structure	Brush
System minimum accuracy	0.001mm
Positioning method	Y axis double lift automatic positioning tools
Max. bending speed	0.2 s/time
Max. bending width	2000mm
Max. bending height	170mm/300mm
Rated voltage	380V
Total motor power	77Kw
Average power	about 2.6Kw
Noise	50dB
Machine size	510265 330cm
Total machine weight	about 18t
Max. bending thickness (thicker panel customized)	UST 515N/ mm2 304 stainless steel 1 . 5 mm
	UST 4 10 N/ mm2 cold panel 2 . 0 mm
	UST 265N/ mm2 aluminum panel3.0mm
Minimum panel thickness	0.35mm
Four sides forming minimum inner size	140* 190mm
Double sides forming minimum inner size	140mm
Max. bending size	2000*1500mm
Axis qty.	standard synchronized 15 axis
Power hinge knife	standard

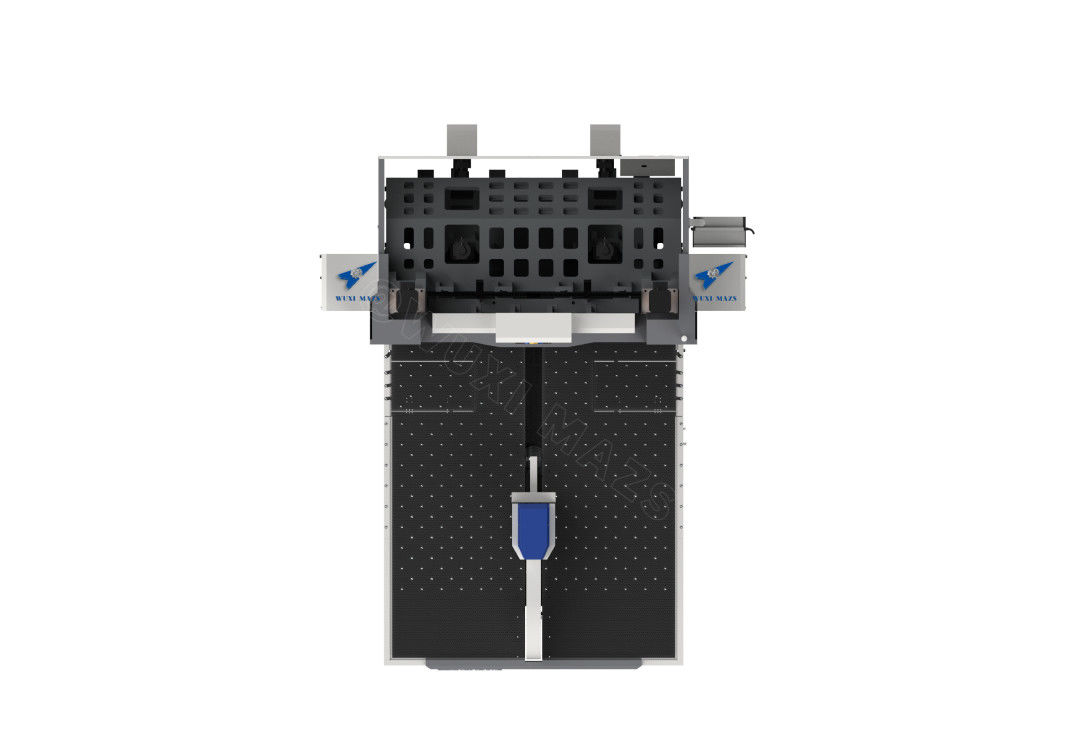

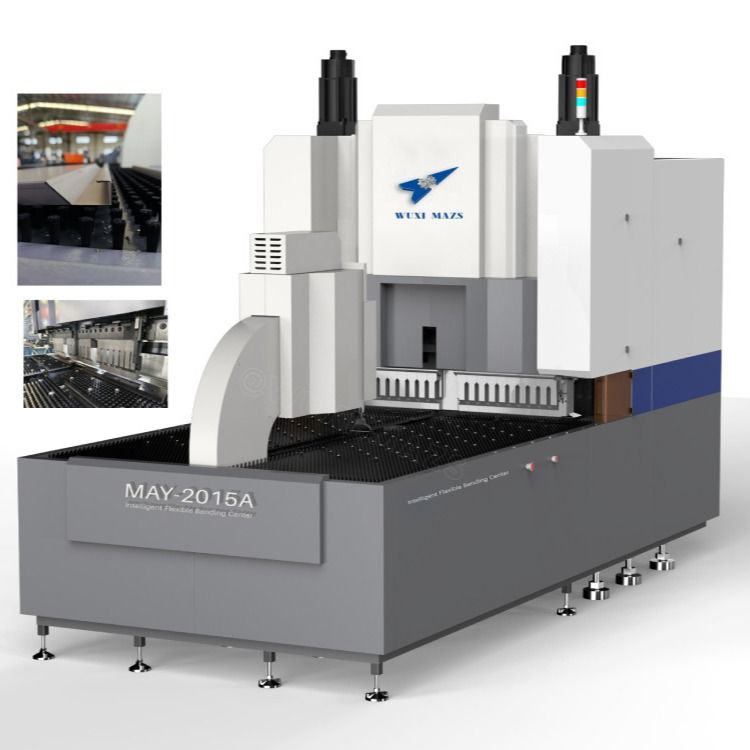

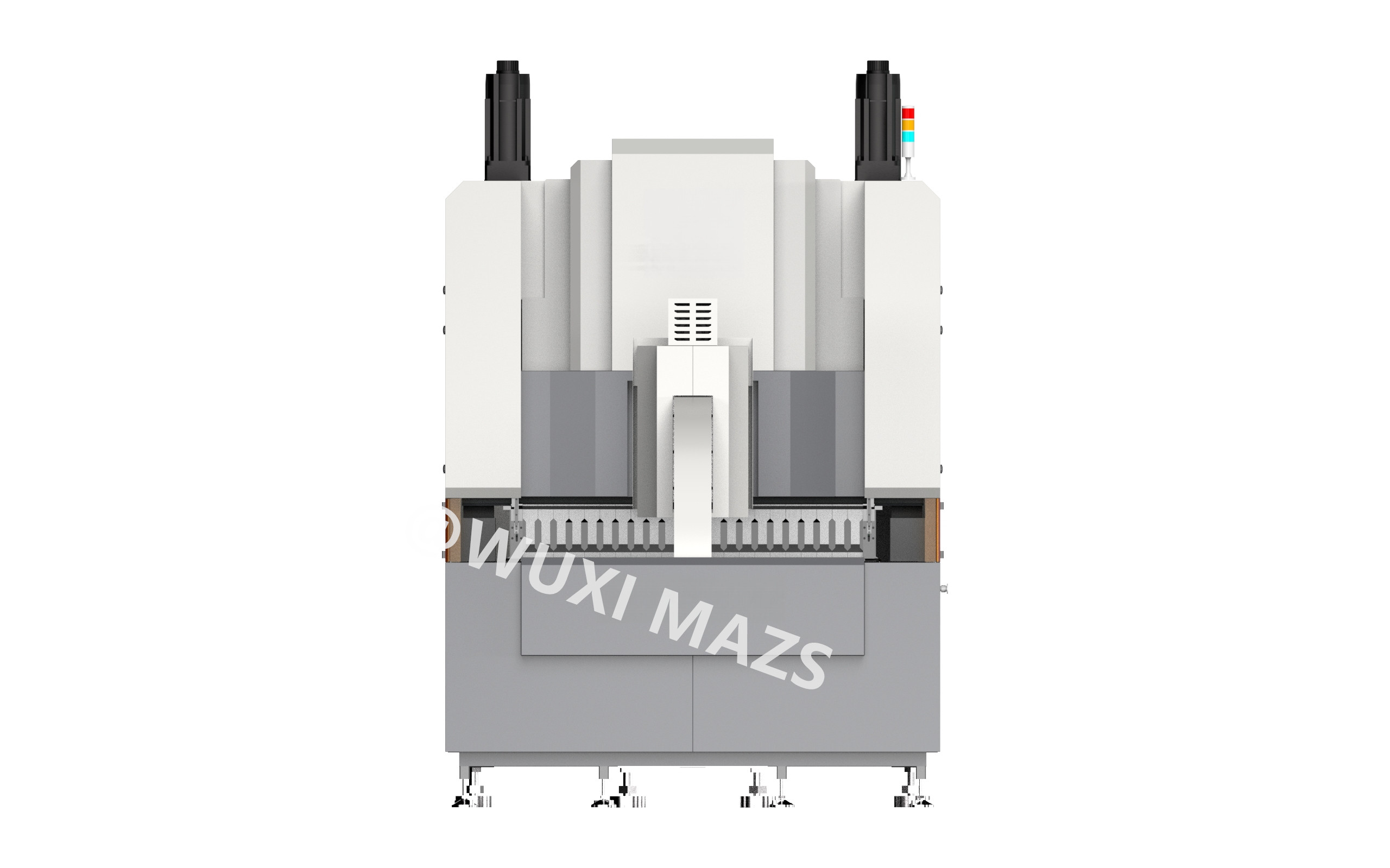

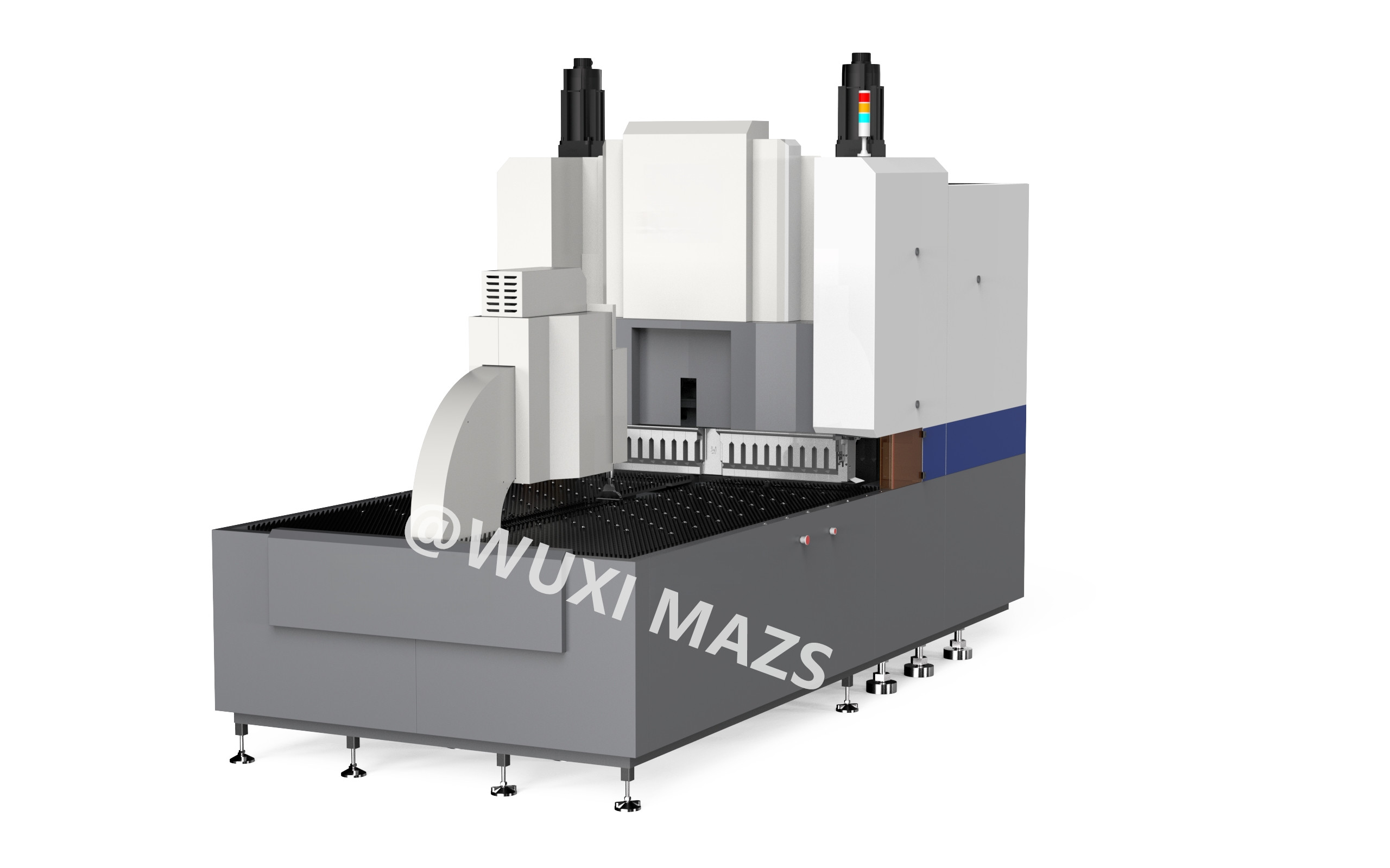

Machine photo for reference only:

Applications:

This automatic intelligent bending center can be widely used in steel cabinet shell (eg. file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...), kitchenware (refrigerator, air conditioner, stove...), metal forming problems in furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related fields.

2.5KW Edge Bending Machine Metal Sheet Bending Machine For Kitchenware 1

Bending Examples:

MAZS intelligent panel bender adopts universal bending mold, cost-saving and better efficiency . It could be used for various types of panel shape.

Support and Services:

MAZS provides:

* Safe stock spare parts

Provide users with a complete inventory of accessories, ensure that accessories and wearing parts are replaced in time, and escort users' daily production.

* 7x24 Online service

Provide 7x24 hours of after-sales online services, maximize the protection of user’s daily production plans, realizing worryfree after-sale service.

* Lifetime service tracking

Establish a uniquely encoded user profile tracking and recording the details of the operation of the device, and providing lifelong maintenance services for cooperative users.

Packing and Shipping:

Packaging and Shipping for Panel Bending Machine:

* The CNC Bending Machine will be packed in wooden crates or cases.

* The package is designed to protect the machine from humidity and physical damage during transportation.

* The packing will meet international shipping standard.

* The machine can be shipped by air, sea, truck, or train.

FAQ:

Q1: What is the feeding type of CNC Bending Machine?

A1: MAY-**15 series intelligent panel bender adopts pressing arm feeding method.

Q2: How many axis it uses?

A2: Standard axis quantity is 15.

Q3: What kind of work pieces are the CNC Bending Machine suitable for?

A3: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.

Q4: What is the packaging details of the CNC Bending Machine?

A4: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.

Q5: What certification does it have?

A5: ISO 9001:2000, ISO 9001:2008, CE.
