15 Axis Panel Bender Machine For 0.35 - 3mm Material Thickness 380V Rated Voltage

Name: 15 Axis Panel Bender Machine For 0.35 - 3mm Material Thickness 380V Rated Voltage
Brand: MAZS
SKU: MAY-**15A
Rating: 4.7 (185 reviews)

Basic Information

Place of Origin:	China
Brand Name:	MAZS
Certification:	CE, ISO
Model Number:	MAY-**15A

Minimum Order Quantity:	1 Set
Price:	RMB/USD/EURO
Packaging Details:	Wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time:	60 days to 120 days
Payment Terms:	T/T or L/C
Supply Ability:	50 to 60 sets per month

Get Best Price Contact Now

Axis Quantity:	15	Max Bending Width:	2500mm
Bending Speed:	0.2 Second/time	Rated Voltage:	380V
Bending Height:	170mm	Max Feeding Speed:	90m/min
Total Power:	79KW	Max Bending Length:	2500mm
Highlight:	15 Axis Panel Bender machine , Panel Bender machine 3mm sheet , 380V Press Brake Machine

15-Axis Panel Bending Machine for 0.35-3mm Material Thickness 380V Rated Voltage

Product Description:

High-end Sheet Metal Automatic Machine

The all-new sheet metal automatic machine is a revolutionary development for industry 4.0. It brings numerous benefits to users, such as low power consumption, fast speed, simple maintenance and low cost. With a 0.2 second time requirement per operation, it is amazingly fast and efficient.

It comes with features like rapid prototyping of sheets and high consistency. A high degree of automation also means simple operation and minimal labour requirements. Complex shapes such as right angles and non-right angles which can be folded up or down can be easily designed and produced at any time, without needing molds. Able to work with various materials such as aluminum, stainless steel and cold rolled sheets, this machine further justifies its position as a leading machine in its field.

This machine comes with a number of beneficial extras such as multiple loading and unloading methods including manual and robotic arm methods. For sheets with non-standard sizes, positioning datums are available according to shape to ensure that precision and accuracy are maintained after the metal is formed.
Rich software and hardware interfaces make this machine ideal for using in intelligent factories and the company has made sure that user friendliness is paramount by setting up a friendly man-machine interface that is easy to use. The unbalanced load detection system provides extra protection to the machine and the sheets alike, while the real time cloud monitoring system helps maintain the machines during operation. With all of these features combined, it is no surprise that this machine is one of the best on the market.

Features:

The MAY-15A axis panel bending machine adopts a pressing arm loading method and is designed and developed according to the standard of high-precision machine tools.

It is suitable for a variety of flat or special-shaped work pieces including mesh, corrugated or hollow work pieces.

This model of May-15 also has more functions like automatic reposition, oblique reposition, double C-axis rotation that allows a wider range of applications.

It has outstanding performance in terms of stability, reliability and more.

Technical Parameters:

Item	Techncial Parameters for MAY-2515A
Max. bending speed	0 . 2 second/time
Max. bending width	2500mm
Max. bending height	170mm
Rated voltage	380v
Total motor power	79Kw
Average power	about 2.9Kw
Noise	about 50dB
Machine size	565* 300* 340cm
Total machine weight	about 23 t
Max. bending thickness (thicker panel customizable)	UST 515N/ mm2 304 stainless steel 2.0 mm
Max. bending thickness (thicker panel customizable)	UST 410N/ mm2 cold panel 3.0 mm
Minimum panel thickness	0 . 35mm
Four sides forming minimum inner size	160* 210mm
Two sides forming minimum inner size	160mm
Max. bending size	2500* 1500mm
Axis QTY	standard synchronized 15 axis
Power hinge knife	standard

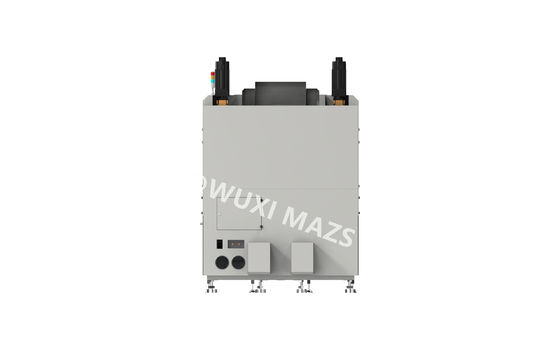

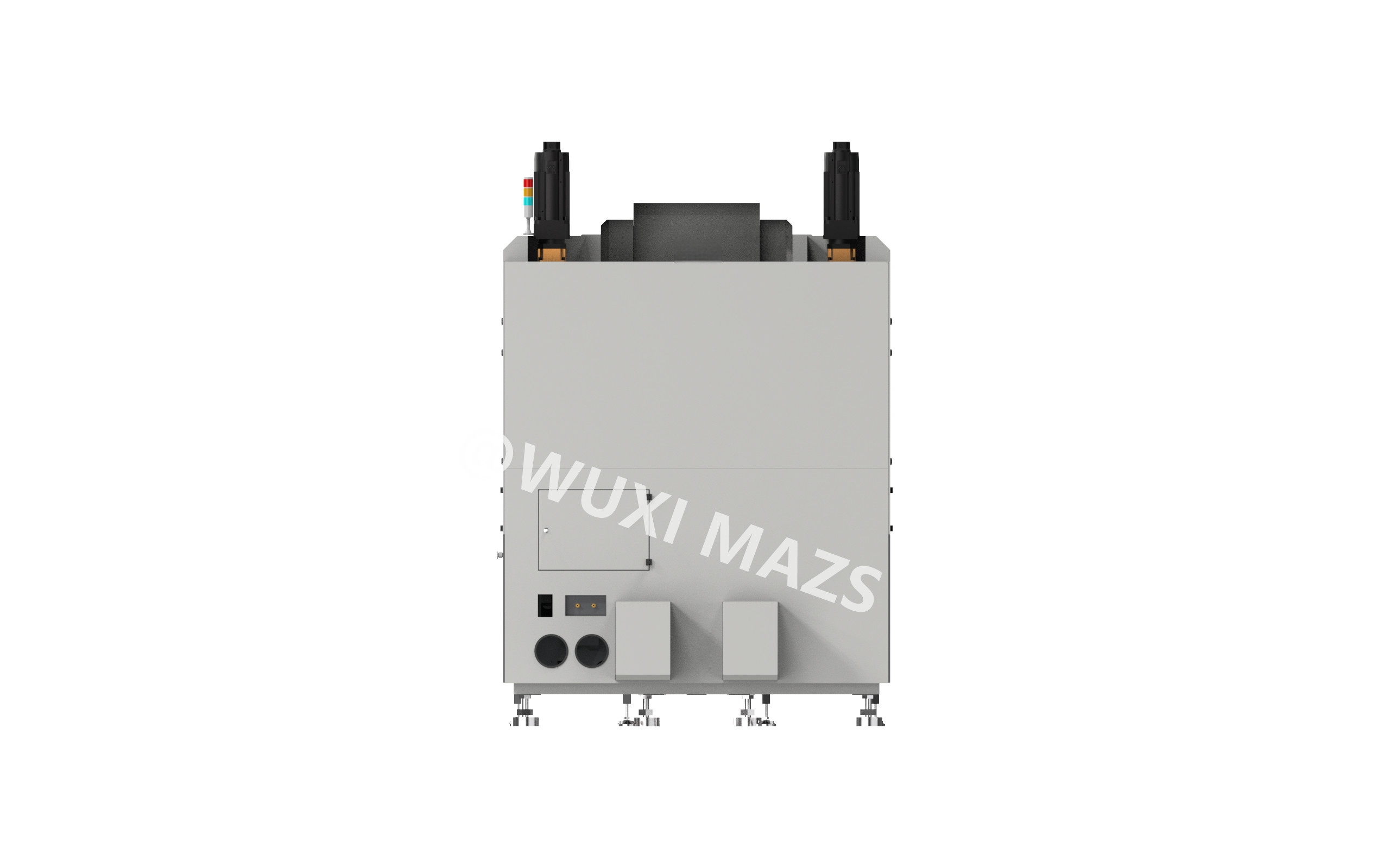

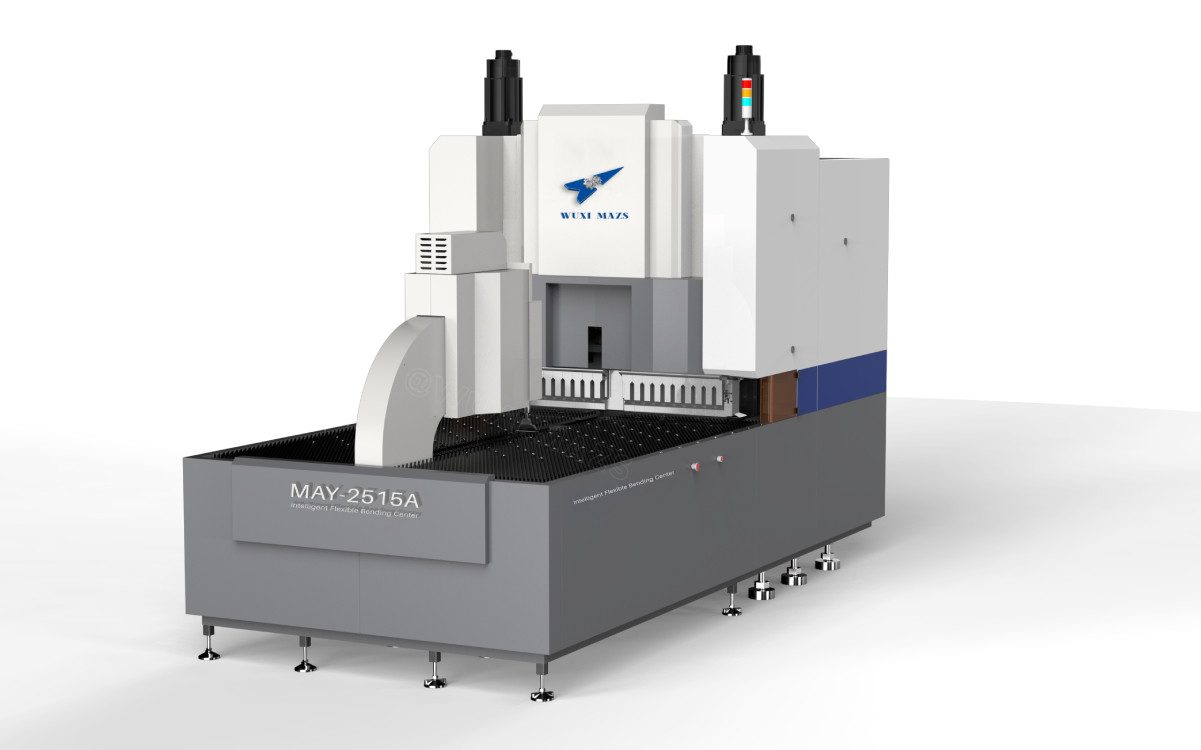

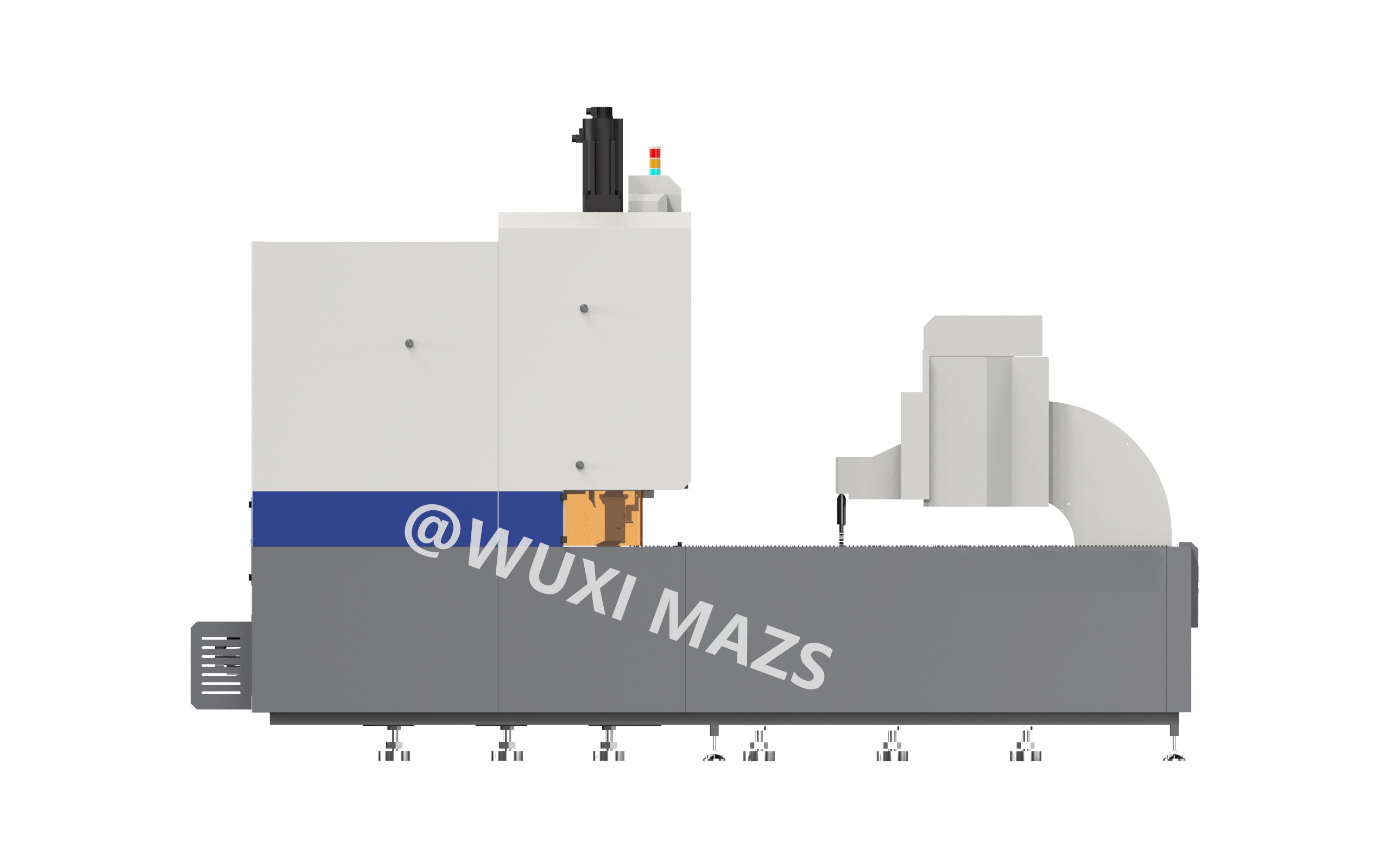

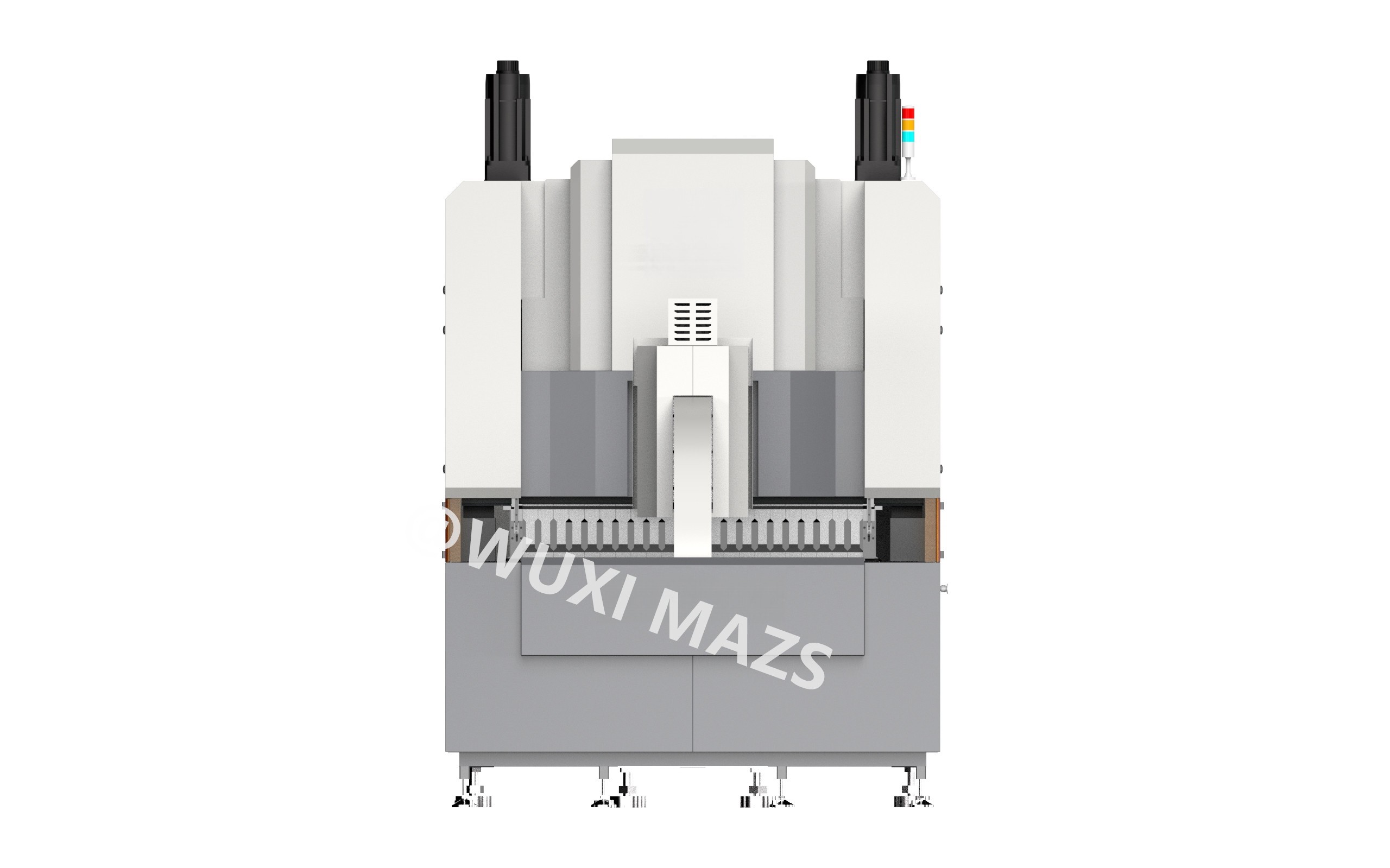

Machine photo for reference only:

15 Axis Panel Bender Machine For 0.35 - 3mm Material Thickness 380V Rated Voltage 0

Applications:

A intelligent panel bending machine can be a valuable tool in various industries and fields. It can be used to create components for file cabinets, tool cabinets and outer protective covers. The machine can also be used to produce parts for different electrical cabinets, gas cabinets and communication cabinets.

In addition, the intelligent panel bending machine can be used for creating kitchenware items such as refrigerators, stoves and air conditioning units. On top of that, it can also be used in the process of Ventilation, refrigeration, purification, door industry, decoration and elevator manufacturing.

In conclusion, the intelligent panel bending machine can be widely applied in a lot of fields including cabinetry, kitchenware, furniture, ventilation, refrigeration, purification, door industry, decoration, and elevators.

Bending Examples:

Customized design is acceptable.

15 Axis Panel Bender Machine For 0.35 - 3mm Material Thickness 380V Rated Voltage 2

Support and Services:

- Panel Bending Machine Technical Support and Service;

- Provide pre-sale and after-sale technical services;

- Provide lifetime maintenance and repair services;

- Provide quality assurance services;

- Provide a 24/7 online technical support service;

- Provide on-site installation and commissioning services;

- Provide free training on the operation and maintenance of the machine;

- Provide a wide range of replacement parts.

Packing and Shipping:

Packaging and Shipping for Panel Bending Machine:

The Panel Bending Machine will be packaged in a wooden crate.

The crate will be secured with straps, then shrink-wrapped.

The Panel Bending Machine will be shipped via a trusted carrier.

FAQ:

Q1: What is the Brand Name of the Panel Bending Machine?

A1: The Brand Name of the Panel Bending Machine is MAZS.

Q2: What is the Model Number of the Panel Bending Machine?

A2: The Model Number of the Panel Bending Machine is MAY-**15A.

Q3: Where is the Panel Bending Machine made?

A3: The Panel Bending Machine is made in China.

Q4: What are the Certifications of the Panel Bending Machine?

A4: The Certifications of the Panel Bending Machine are IE and ISO.

Q5: What is the Minimum Order Quantity of the Panel Bending Machine?

A5: The Minimum Order Quantity of the Panel Bending Machine is 1 set.
