WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |

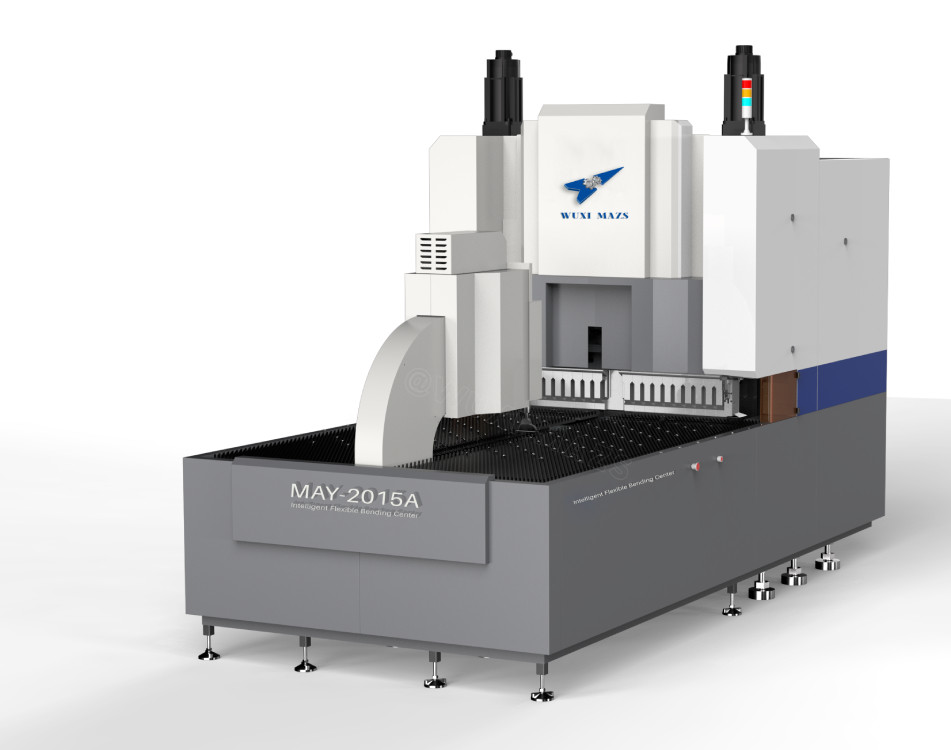

| Model Number: | MAY-2015A |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Max Bending Thickness: | 3mm | Max Bending Width: | 2000mm |
|---|---|---|---|
| Bending Height: | 170mm | Max Punching Thickness: | 3mm |
| Max Feeding Speed: | 90m/min | Rated Voltage: | 380V |
| Total Power: | 77KW | Bending Speed: | 0.2 Second/time |
| Highlight: | 2000mm Panel Bending Machine,Panel Bending Machine 3mm,2000mm CNC Panel Bender |
||
|
Items
|
Technical Parameters |
|
Max. bending speed
|
0 . 2 second/time
|
|
Max. bending width
|
2000mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380v
|
|
Total motor power
|
77Kw
|
|
Average power
|
about 2. 5Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
510*265* 330cm
|
|
Total machine weight
|
about 1 8 t
|
|
Max. bending thickness
(thicker panel customizable)
|
UST 515N/ mm2 304 stainless steel 2.0 mm
|
|
UST 410N/ mm2 cold panel 3.0 mm
|
|
|
Minimum panel thickness
|
0 . 35mm
|
|
Four sides forming minimum inner size
|
160* 210mm
|
|
Two sides forming minimum inner size
|
160mm
|
|
Max. bending size
|
2000* 1500mm
|
|
Axis QTY
|
standard synchronized 15 axis
|
|
Power hinge knife
|
standard
|
Panel Bending Machine will be shipped in a secure, wooden crate. The crate will be fitted with cushioning materials inside to ensure the machine arrives safely to its destination.
The crate will be labeled with the correct address and will include all necessary documentation, such as the bill of lading, assembly instructions, and safety warnings. The crate will be strapped and secured to prevent any movement during transit.
The machine will be sent via a reliable shipping service to ensure it reaches its destination in a timely manner. We will take full responsibility for any damages that occur during shipping.
