WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-**11 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packaging for sea transportation |
| Delivery Time: | 60 days to 80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Description: | CNC Panel Bender | Waterproof Rating: | IPX-5 |
|---|---|---|---|
| Loading Method: | Suction Cup | Position Method: | Y Axis Three Positioning Rulers |
| System Minimum Accuracy: | 0.001mm | Suitable Material: | Stainless Steel, Aluminum Plate, Cold Plate |
| Panel Sheet Thickness: | 0.35-1.6mm | Sheet Size: | Max. 1400*1400mm |
| Highlight: | 0.35mm CNC Panel Bender,1.6mm CNC Panel Bender,automatic panel bender For Metal Plates |
||

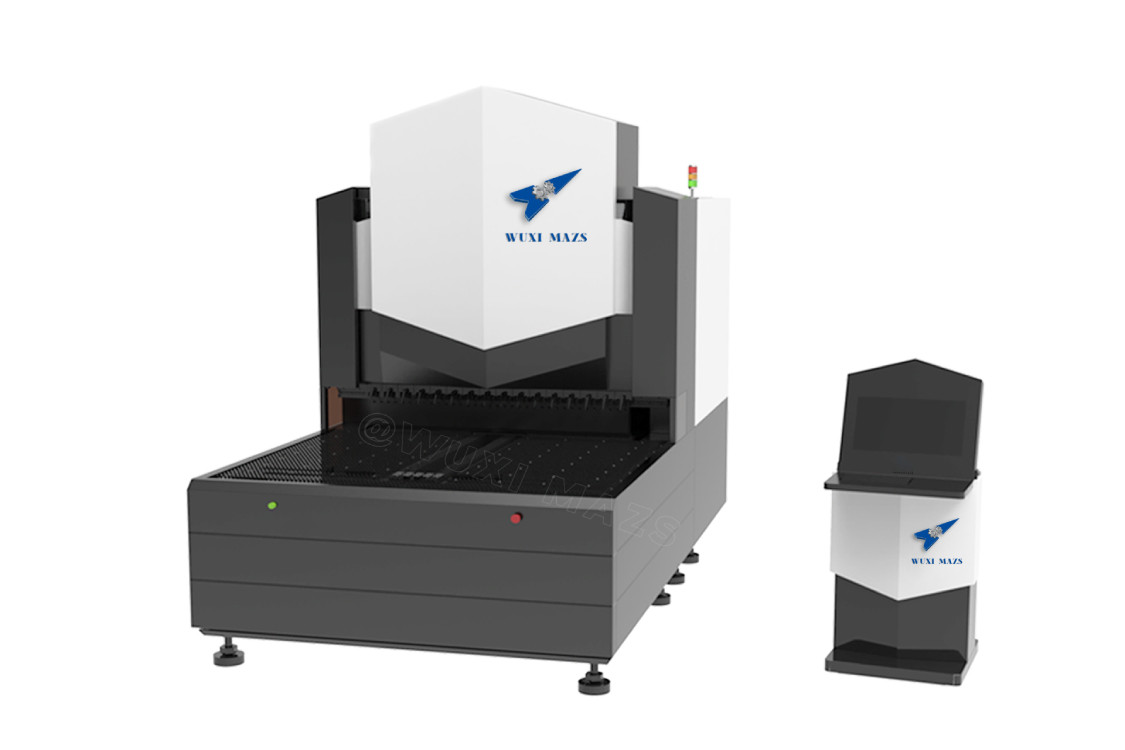

MAX-**11 computer numerical control (CNC) bending and panel bending helps fabricate a variety of metal components. When determining whether this fabrication method is ideal for a particular product, it’s important to understand what panel bending is and how it works. MAZS offers a range of CNC metal forming services for our clients’ unique specifications.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.

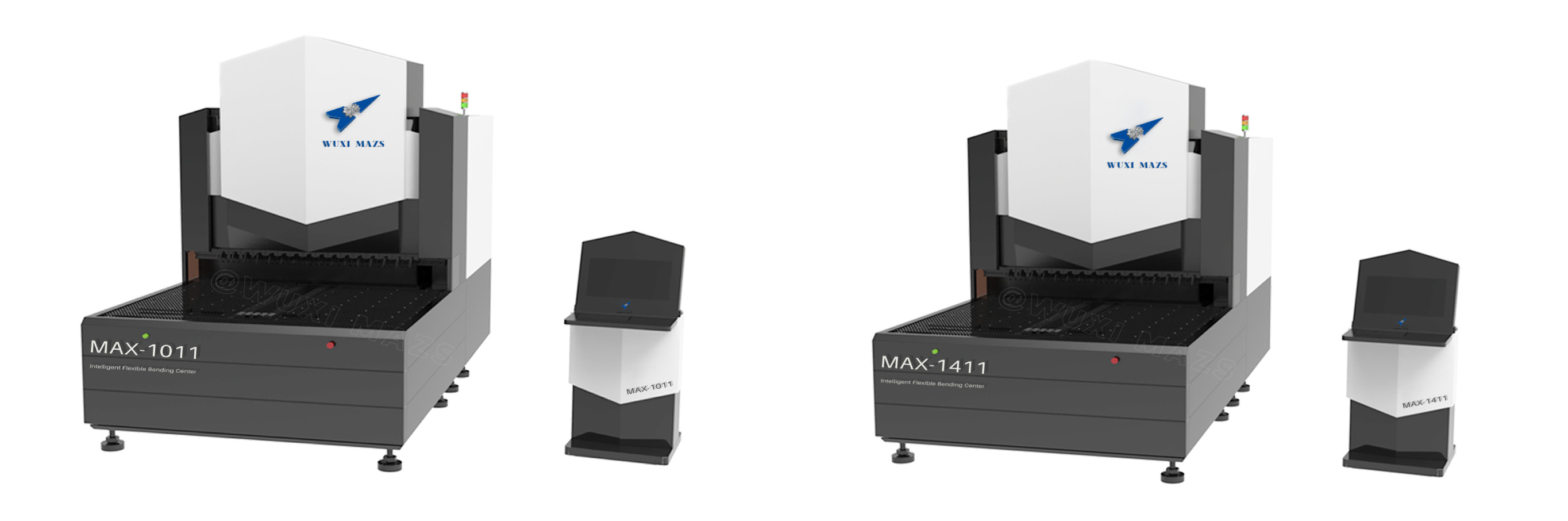

| Items | Technical Parameters for Panel Bending Center | |
| MAX-1011 | MAX-1411 | |

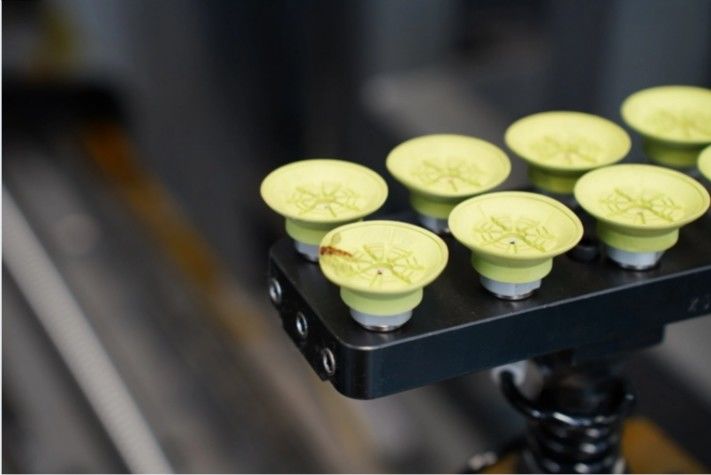

| Feeding method | Suction cup | Suction cup |
| Work table structure | brush | brush |
| System minimum accuracy | 0.001mm | 0.001mm |
| Positioning method | Y axis three positioning rulers | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time | 0.2 s/time |
| Max. bending width | 1000mm | 1400mm |
| Max. bending height | 170mm | 170mm |
| Rated voltage | 380V | 380V |
| Total motor power | 25Kw | 34Kw |
| Average power | about 1.1Kw | about 1.5Kw |
| Noise | 50dB | 50dB |
| Machine size | 285*150*280cm | 365*190*290cm |
| Total machine weight | about 7t | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | |
| UST 265N/ mm2 aluminum panel 1.6mm | UST 265N/mm2 aluminum panel 1.6mm | |
| Minimum panel thickness | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 140*210mm | 140*210mm |
| Double sides forming minimum inner size | 140mm | 140mm |
| Max. bending size | 1000* 1000mm | 1400* 1400mm |
| Axis qty. | standard synchronized 11 axis | standard synchronized 11 axis |
| Power hinge knife | standard | standard |

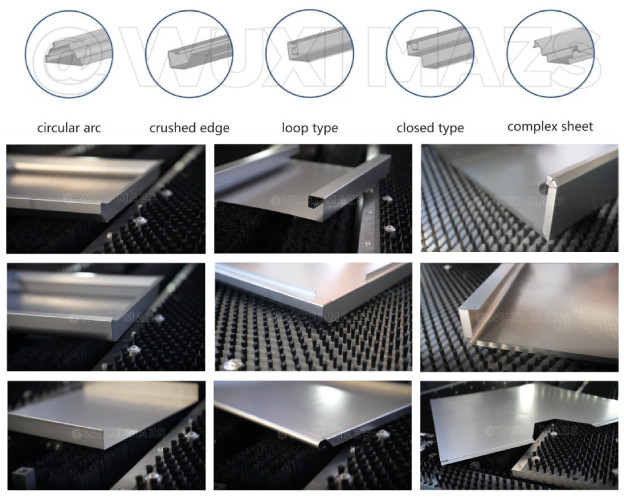

MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
MAZS metal sheet bender can be widely applied in following industried:
√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
√ Kitchenware: refrigerator, air conditioning, stove...
√ Furniture
√ Electrical cabinets
√ Decorations
