WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1409 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 to 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | CNC Panel Bender | Model: | MAX-1409 |
|---|---|---|---|
| Max Bending Thickness: | 1.6MM | Voltage: | 380KV |
| Max Bending Width: | 1400mm | Max Feeding Speed: | 0.2 Sec/time |
| Max Bending Height: | 170mm | Weight: | 10000 KGS |
| Highlight: | 10000KGS cnc sheet metal folding machine,cnc sheet metal folding machine 170mm,metal bending machine 0.2s/time |
||

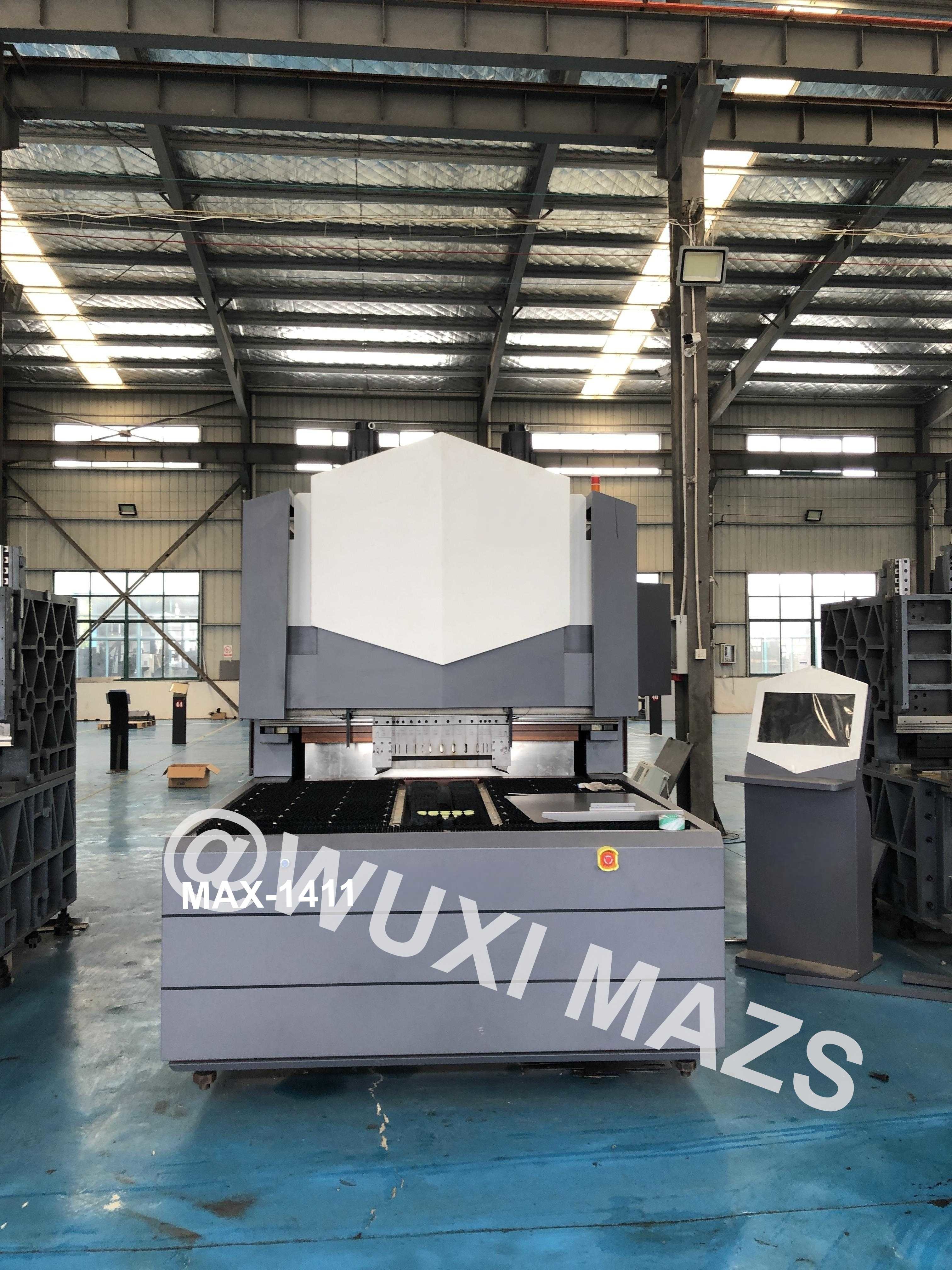

MAY-1409 intelligent flexible bending center is used for sheet metal fabrication. Automated and semi-automated processes such as CNC panel bending, which use CAD and CAM drawings, produce metal pieces with tight tolerances.
|
Items
|
Technical Parameters for MAX-1409Panel Bending Center
|
|
Feeding method
|
Suction cup
|
|
Positioning method
|
Y axis three positioning rulers
|
|
Max. bending speed
|
0.2 s/time
|
|
Max. bending width
|
1400mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380V
|
|
Total motor power
|
34Kw
|
|
Average power
|
about 1.5Kw
|
|
Noise
|
50dB
|
|
Machine size
|
365*190*290cm
|
|
Total machine weight
|
about 10t
|
|
Max. bending thickness (thicker panel customized)
|
UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm
|
|
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
|
|
|
UST 265N/mm2 aluminum panel 1.6mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*210mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
1400* 1400mm
|
|
Axis qty.
|
standard synchronized 9 axis
|
|
Hinge knife
|
common hinge knife
|

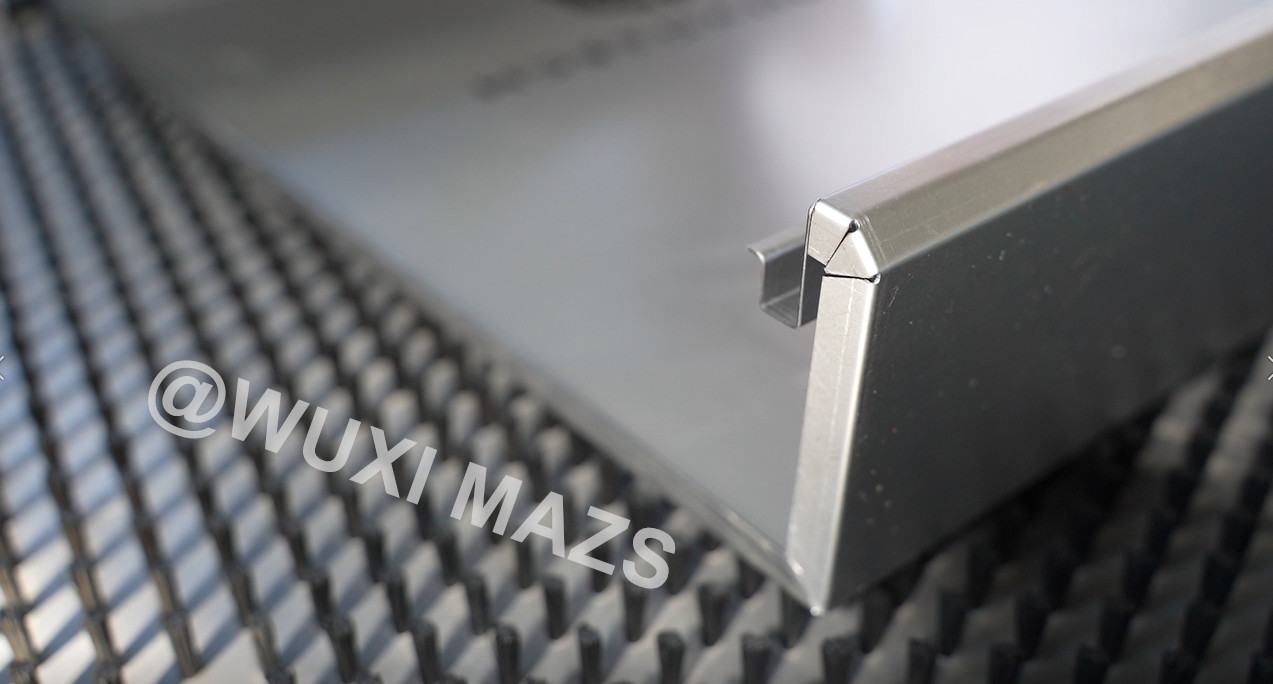

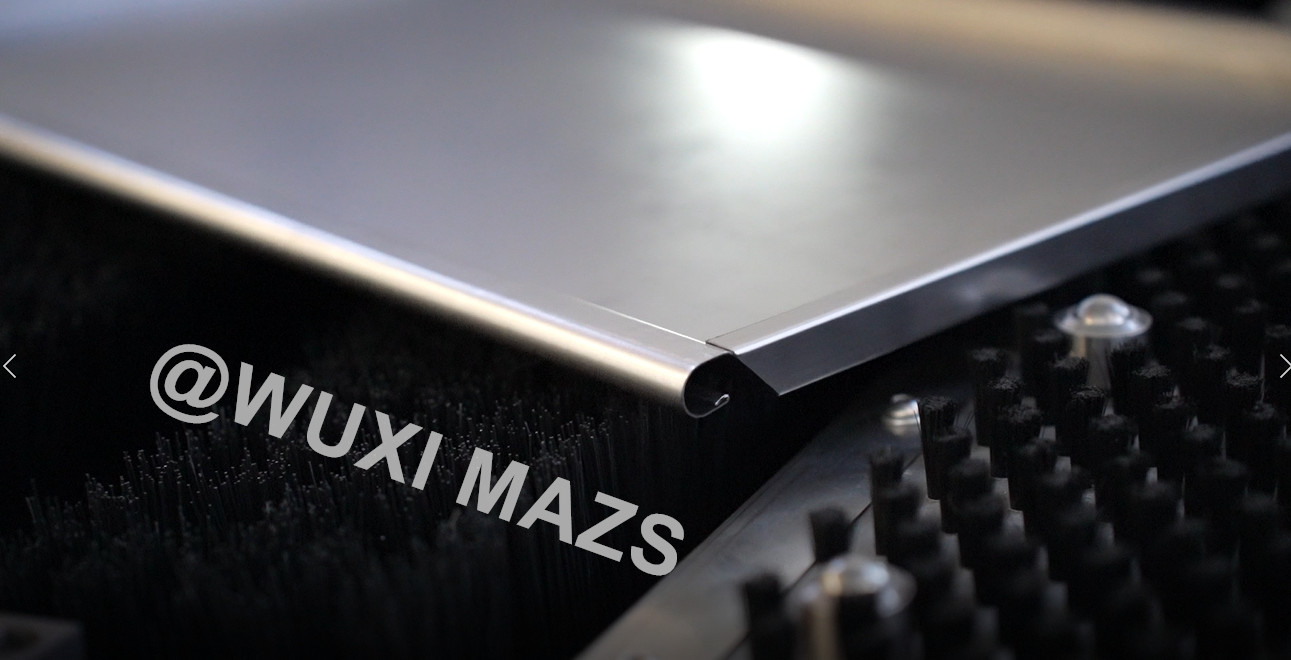

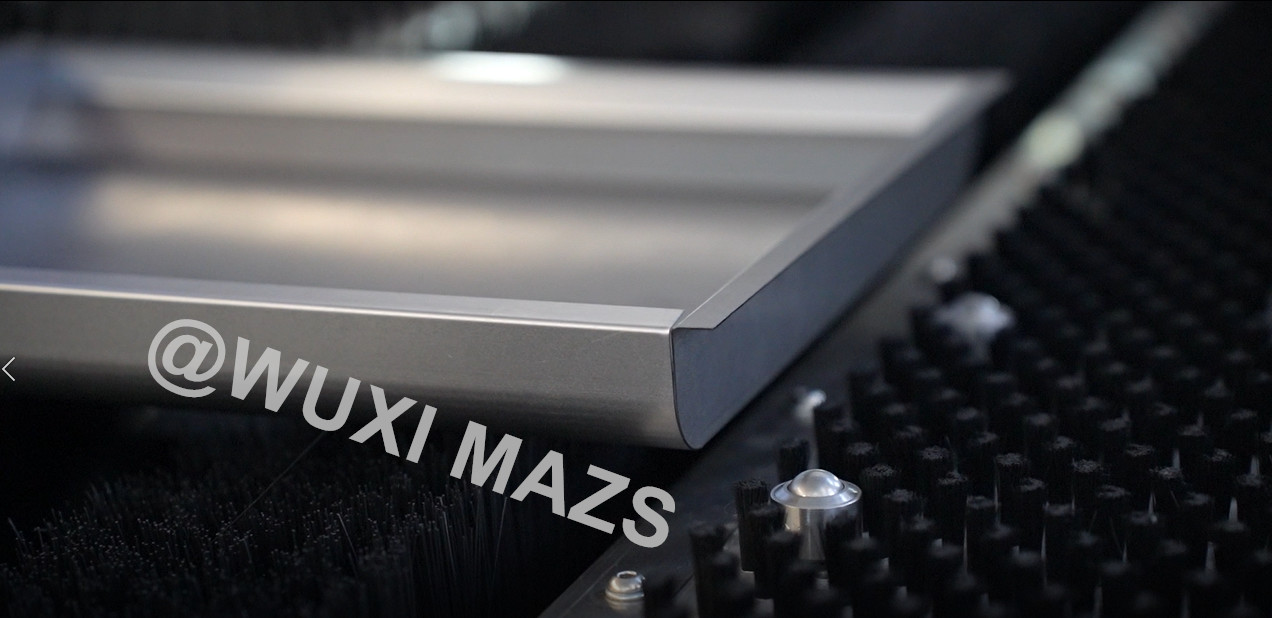

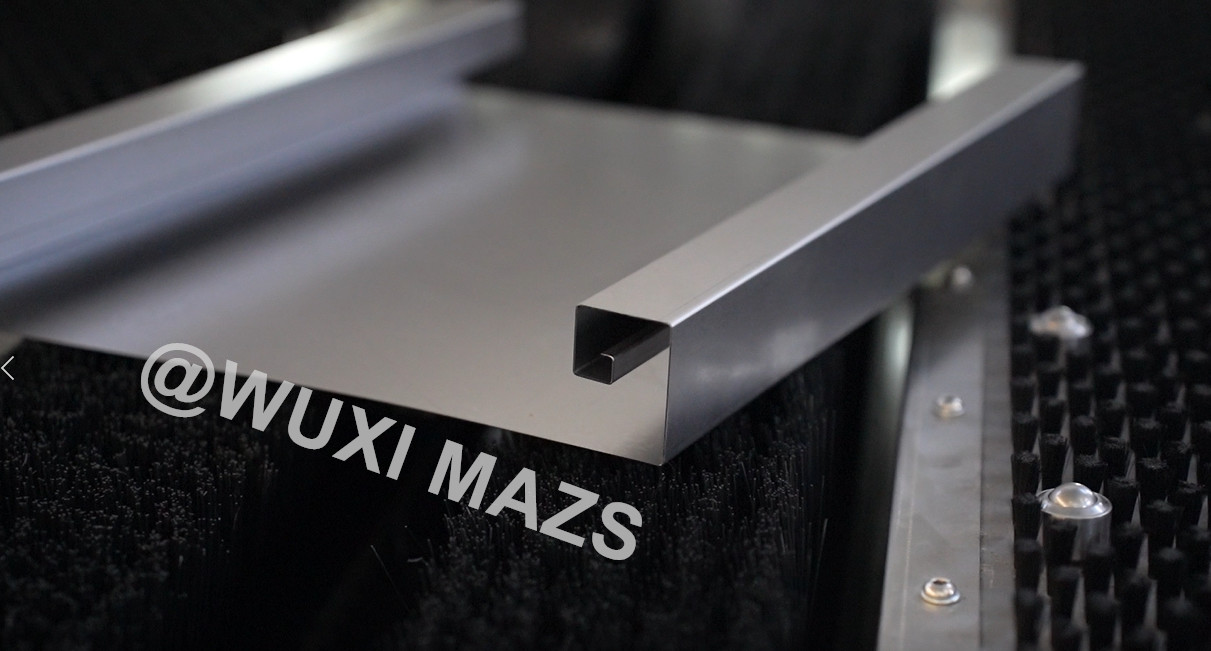

Graphic Bending Case
Bending Graphics
Bending Configuration
MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
