WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**21 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-5 |
|---|---|---|---|
| Suitable Material: | Aluminum, Carbon Steel, Stainless Steel | Feeding Method: | Pressing Arm |
| Standard Axis Quantity: | 21 | Max. Bending Size: | 2500*1500 Mm |
| Max. Bending Thickness: | 3mm | System Minimum Accuracy: | 0.001mm |
| Highlight: | 21 Axis automated sheet metal brake,2500mm automated sheet metal brake,metal folding machine for stainless steel |
||

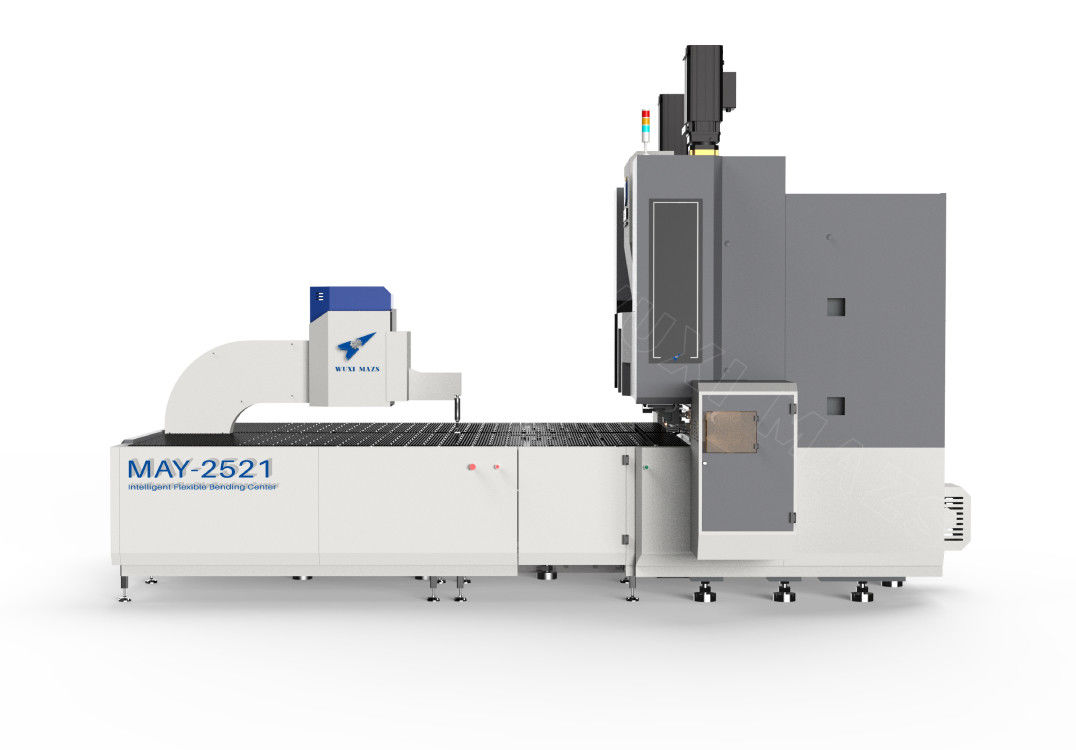

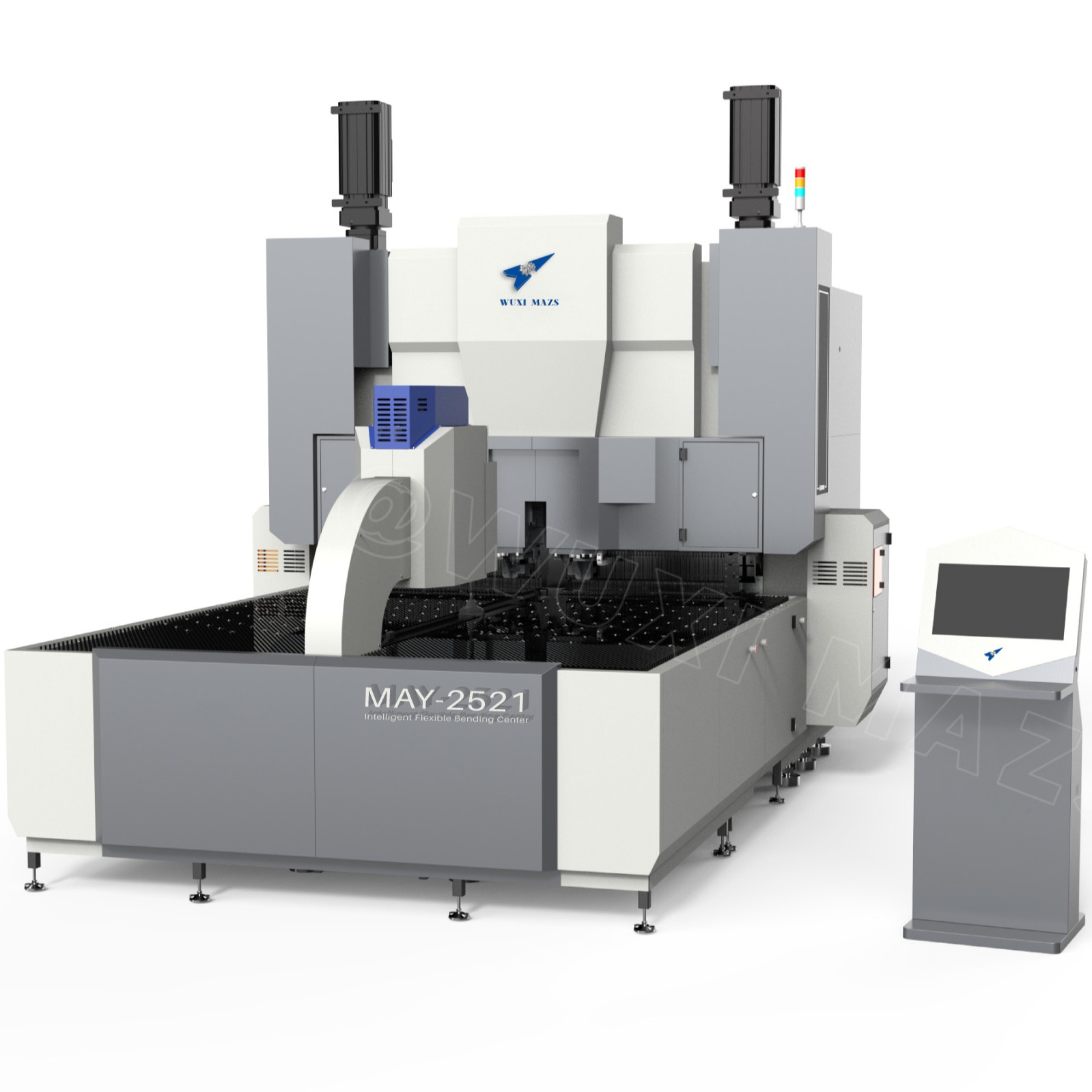

MAY-2521 intelligent flexible bending center is used for sheet metal fabrication. Automated and semi-automated processes such as CNC panel bending, which use CAD and CAM drawings, produce metal pieces with tight tolerances.
|
Items
|
Technical Parameters for Panel Bending Center
|
|
MAY-2521
|
|
|
Feeding method
|
Pressing arm
|
|
Tooling change
|
Automatic tooling change
|
|
Max. bending speed
|
0.2 s/time
|
|
Max. bending width
|
2500mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380V
|
|
Total motor power
|
82Kw
|
|
Average power
|
about 3.0Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
565*320*340cm
|
|
Total machine weight
|
about 19t
|
|
Max. bending thickness (thicker panel customized)
|
UST 515N/mm2 304 stainless steel 1.5mm
|
|
UST 410N/mm2 cold panel 2.0mm
|
|
|
UST 265N/mm2 aluminum panel 3.0mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*190mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
2500*1500mm
|
|
Axis qty.
|
standard synchronized 21 axis
|
|
Power hinge knife
|
standard
|

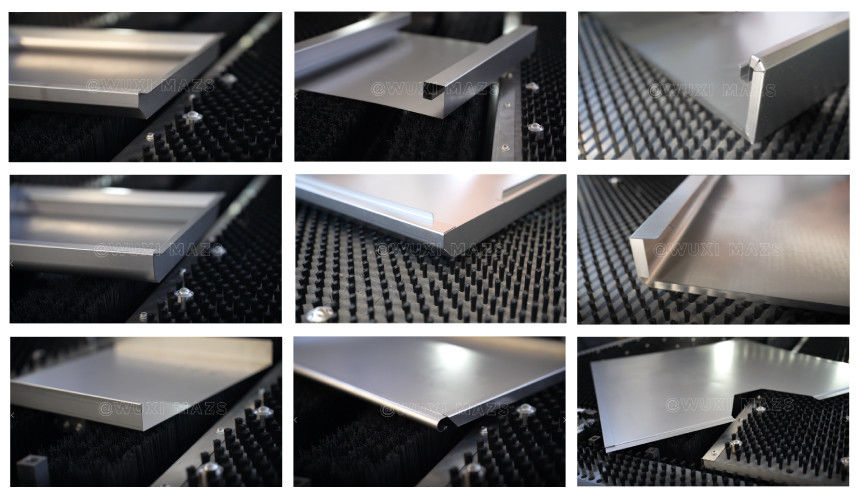

Graphic Bending Case
Bending Graphics
Bending Configuration
MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
