WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**18 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-8 |
|---|---|---|---|
| Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel | Feeding Method: | Pressing Arm |
| Standard Axis Quantity: | 18 | Panel Size: | Max. 3200*1500mm |
| Panel Thickness: | 0.35-3mm | Warranty: | 1 Year |
| Highlight: | Auto Feeding CNC Panel Bender,Copper CNC Panel Bender,Press Brake Bending Machine 3200 x 1500mm |
||

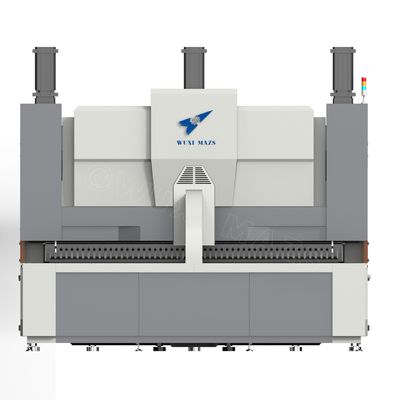

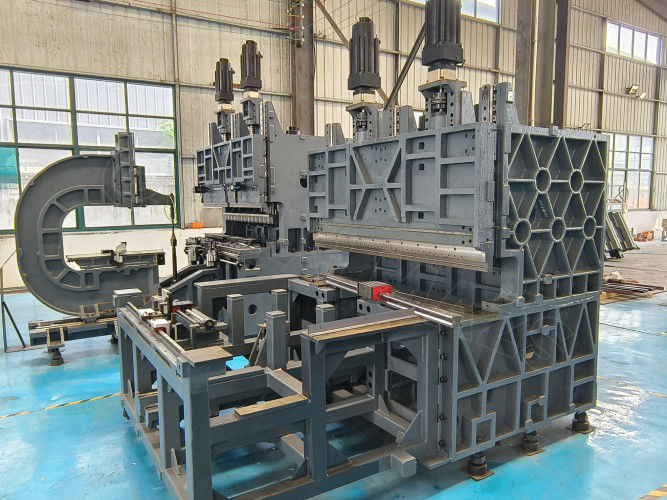

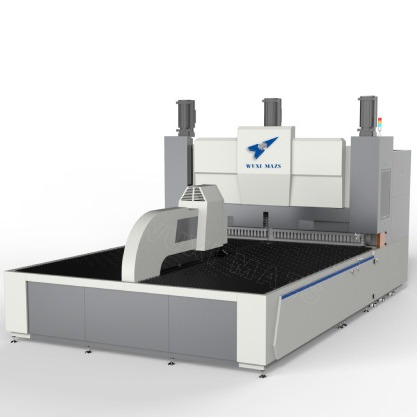

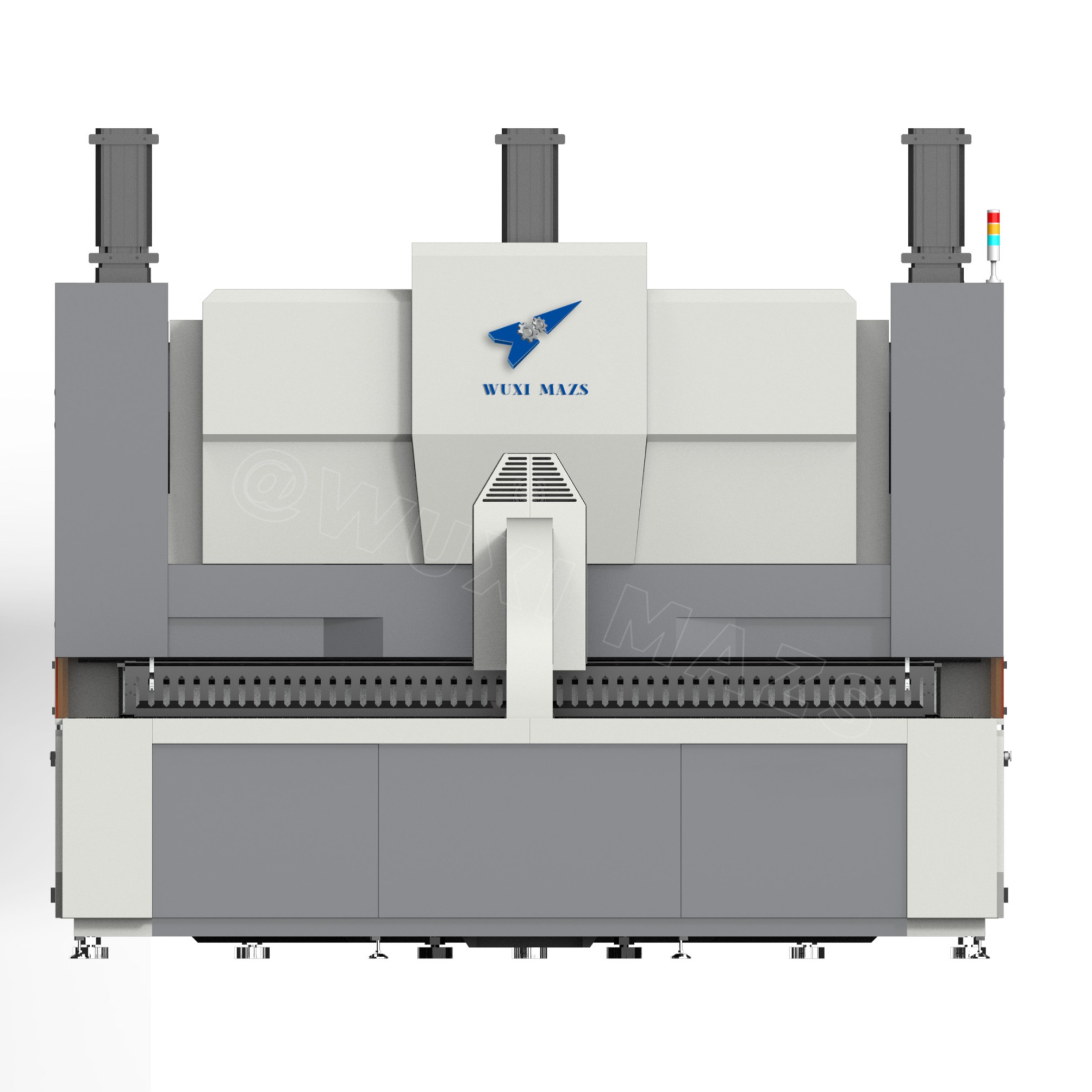

The MAY-**18 series is an intelligent flexible bending center that adopts the pressing arm feeding method. Strengthened with three axises and three motors, the whole machine is designed and produced according to the standard of high-precision machine tools. lt is suitable for mesh, corrugated, hollow and various flat or special shaped work pieces. The deflection compensation can be adjusted by CNC control, the thickness of the bending panel is increased, and the comprehensive bending speed is higher. lt applied fast release and fast installation type upper press tooling.
- Deflection compensation adjustable, panel thickness increased;
- Thick panel bending accuracy increased;
- Fast release and fast installation upper pressing tools;
- Standard power hinge knife.
|
Items
|
Technical Parameters for Panel Bending Center
|
|
|
MAY-2518
|
MAY-3218
|
|
|
Feeding method
|
Pressing arm
|
Pressing arm
|
|
Positioning method
|
Y axis double lift automatic positioning tools
|
Y axis double lift automatic positioning tools
|
|
Max. bending speed
|
0.2 s/time
|
0.2 s/time
|
|
Max. bending width
|
2500mm
|
3200mm
|
|
Max. bending height
|
170mm
|
170mm
|
|
Rated voltage
|
380V
|
380V
|
|
Total motor power
|
244Kw
|
113Kw
|
|
Average power
|
about 5.8Kw
|
about 2.9Kw
|
|
Noise
|
50dB
|
50dB
|
|
Machine size
|
629*300*345cm
|
660*440*328cm
|
|
Total machine weight
|
about 19t
|
about 27t
|
|
Max. bending thickness (thicker panel customized)
|
UST 515N/mm2 304 stainless steel 1.5mm
|
UST 515N/mm2 304 stainless steel 1.5mm
|
|
UST 410N/mm2 cold panel 2.0mm
|
UST 410N/mm2 cold panel 2.0mm
|
|
|
UST 265N/mm2 aluminum panel 3.0mm
|
UST 265N/mm2 aluminum panel 3.0mm
|
|
|
Minimum panel thickness
|
0.35mm
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*190mm
|
140*190mm
|
|
Double sides forming minimum inner size
|
140mm
|
140mm
|
|
Max. bending size
|
2500*1500mm
|
3200*1500mm
|
|
Axis qty.
|
standard synchronized 18 axis
|
standard synchronized 18 axis
|
|
Power hinge knife
|
standard
|
standard
|

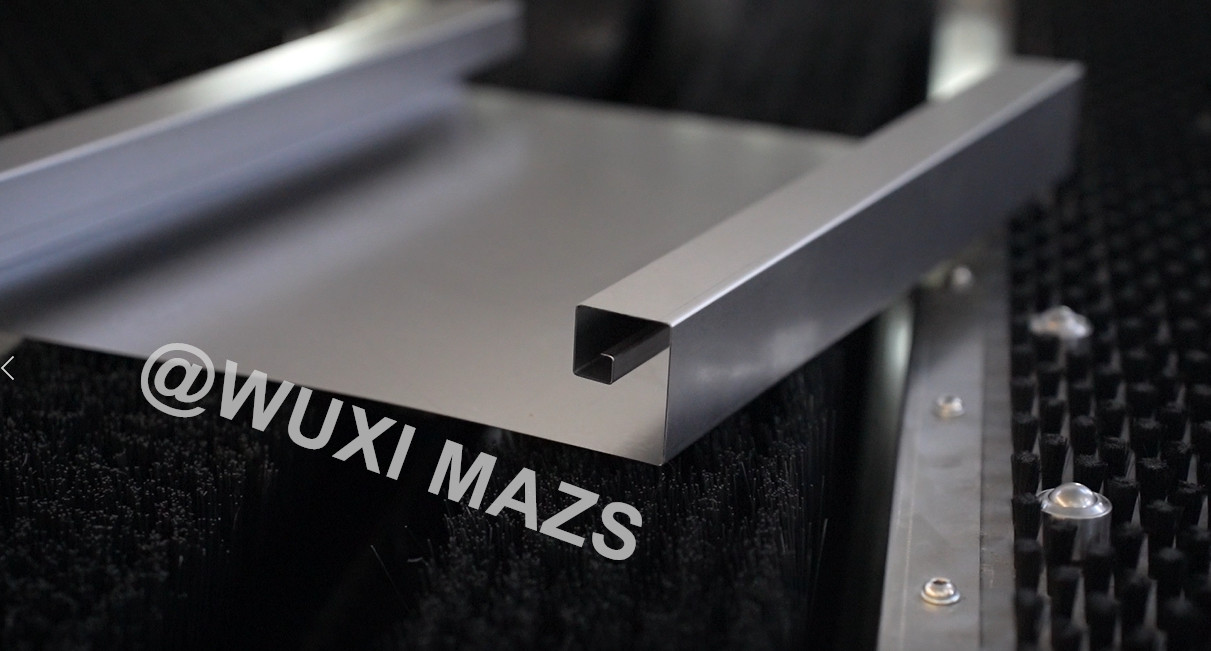

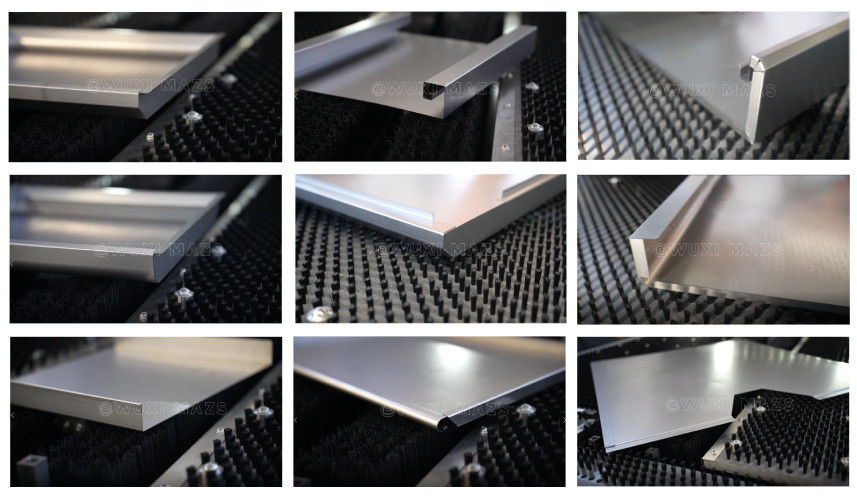

Graphic Bending Case
Bending Graphics
Bending Configuration
