WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-8 |
|---|---|---|---|
| Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel | Positioning Method: | Y Axis Double Lift Automatic Positioning Tools |
| Feeding Method: | Pressing Arm | Standard Axis Quantity: | 15 |
| Max. Bending Size: | 2500*1500mm | Warranty: | 1 Year |
| Highlight: | Multi Purpose cnc metal brake,cnc metal brake 2500X1500mm,stainless steel cnc sheet bending machine |
||

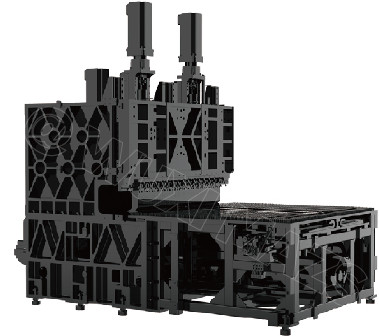

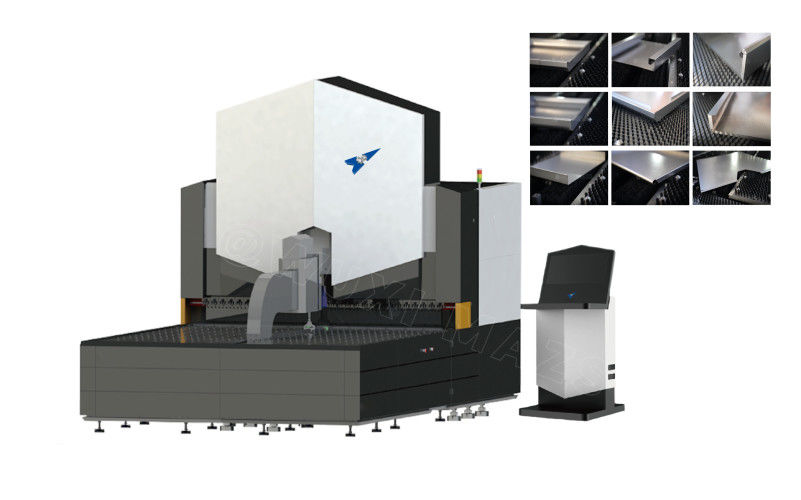

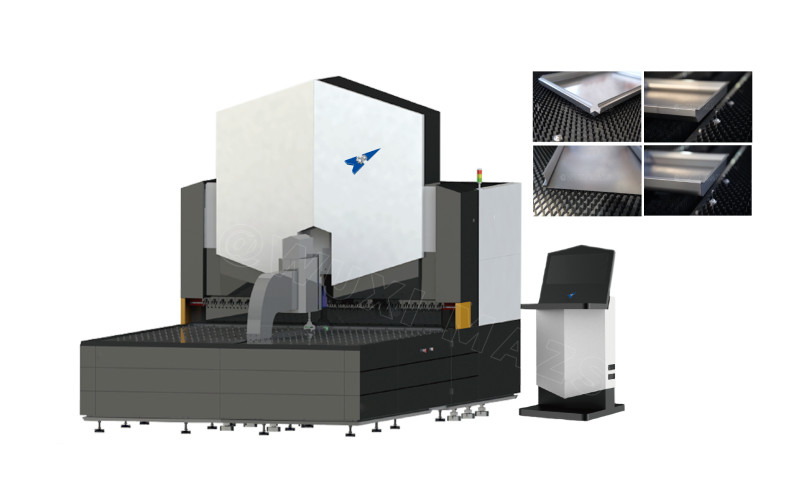

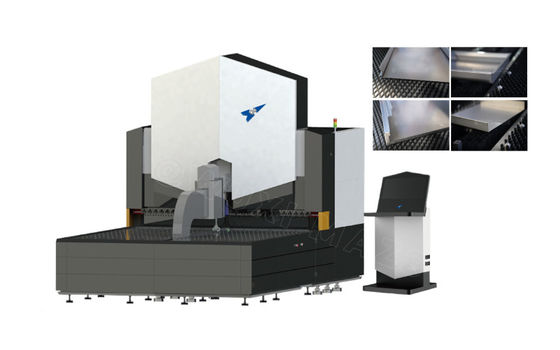

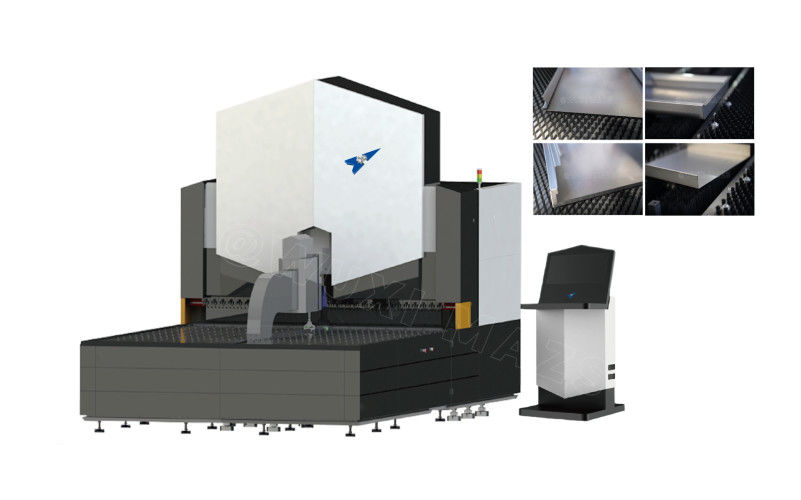

MAZS MAY-2515 intelligent panel bender is designed with the pressing arm as feeding method and with high grade one-piece casting body. The whole machine is designed and manufactured in accordance with the standard of high-precision machine tools.
This type of panel bender is applied for the mesh, corrugated, hollow and various flat and special-shaped work pieces. It has such functions as automatic borrowing, oblique borrowing, and C-axis rotation strengthening, with a wider range of applications and superior performance in stability, accuracy, reliability, and other aspects.
| Items | Technical Parameters for Panel Bending Center |
| Model No. | MAY-2515 |
| Feeding method | Pressing arm |
| Positioning method | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 2500mm |
| Max. bending height | 170mm/300mm |
| Rated voltage | 380V |
| Total motor power | 79Kw |
| Average power | about 2.9Kw |
| Noise | 50dB |
| Machine size | 565* 300* 340cm |
| Total machine weight | about 23t |
| Max. bending thickness (thicker panel customized) | UST 515N/ mm2 304 stainless steel 1 . 5 mm |
| UST 410N/mm2 cold panel 2 . 0 mm | |
| UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140* 190mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 2500*1500mm |
| Axis qty. | standard synchronized 15 axis |
| Power hinge knife | standard |

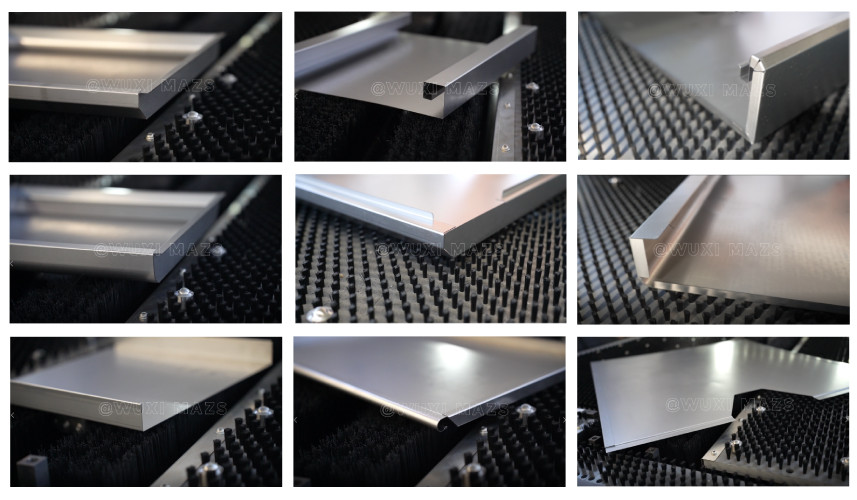

Graphic Bending Case
Bending Graphics
Bending Configuration
No moulds are required for MAZS MAY-2515 intelligent flexible panel bender.
Various complex shapes can be folded, such as circular arc, crushed edge, loop type, closed type, etc.
Complex shapes of various combinations can be folded, e.g. right angles, non-right angles, arcs, upper and lower folds, and is applied for the metal forming of different sheets in different industries.
