WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-8 |
|---|---|---|---|
| Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel | Feeding Method: | Pressing Arm |
| Standard Axis Quantity: | 15 | Max. Bending Size: | 1400* 1400mm |
| Min. Panel Thickness: | 0.35mm | Warranty: | 1 Year |
| Highlight: | 380V CNC Panel Bender,77KW CNC Panel Bender,cnc press brake machine For Automation |
||
- Automatic reset, tilting reset;
- Improved C-axis rotating speed and precision;
- Standard power hinge knife;
- Special tooling construction and pneumatic upper press tooling for bending thicker panels;
- Friendly human-machine interface, easy to understand, and flexible programming;
- Compatible with various loading and unloading methods: manual type, self-propelled robotic arm type, docking robotic arm type, all types are optional;
- For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming.
| Items | Technical Parameters for MAY-2015 Panel Bending Center |
| Feeding method | Pressing arm |
| Positioning method | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 2000mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 77Kw |
| Average power | about 2.5Kw |
| Noise | 50dB |
| Machine size | 510*265* 330cm |
| Total machine weight | about 18t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 2.0mm |
| UST 410N/mm2 cold panel 3.0mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 160* 210mm |
| Double sides forming minimum inner size | 160mm |
| Max. bending size | 2000*1500mm |
| Axis qty. | standard synchronized 15 axis |
| Power hinge knife | standard |

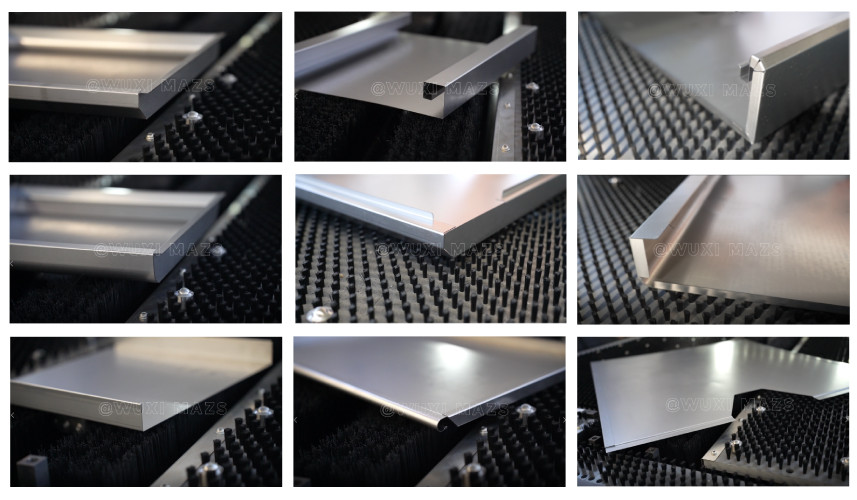

Graphic Bending Case
Bending Graphics
Bending Configuration
For MAZS MAY-2015 intelligent panel bender, no molds are required. It can bend various complex shapes, such as circular arc, crushed edge, loop type, closed type, etc. It can bend complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
