WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-8 |
|---|---|---|---|
| Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel | Feeding Method: | Pressing Arm |
| Standard Axis Quantity: | 15 | Max. Bending Size: | 2000*1500mm |
| Min. Panel Thickness: | 0.35mm | Warranty: | 1 Year |
| Highlight: | Adjustable cnc sheet metal bending machine,cnc sheet metal bending machine 77Kw,sheet metal panel benders 50dB |
||

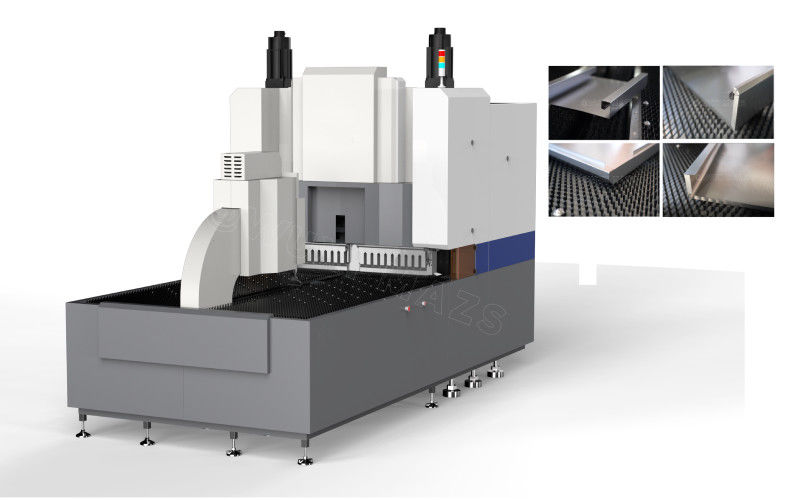

MAZS MAY-2015 intelligent panel bender is equipped with the pressing arm feeding method. The whole machine is designed and manufactured according to the standard of high-precision machine tools.
This kind of panel bender is suitable for mesh, corrugated, hollow and various flat or special-shaped workpieces. There're more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance as to stability, reliability, etc.
| Items | Technical Parameters for MAY-2015 Panel Bending Center |
| Feeding method | Pressing arm |
| Positioning method | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 2000mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 77Kw |
| Average power | about 2.5Kw |
| Noise | 50dB |
| Machine size | 510*265* 330cm |
| Total machine weight | about 18t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 2.0mm |
| UST 410N/mm2 cold panel 3.0mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 160* 210mm |
| Double sides forming minimum inner size | 160mm |
| Max. bending size | 2000*1500mm |
| Axis qty. | standard synchronized 15 axis |
| Power hinge knife | standard |

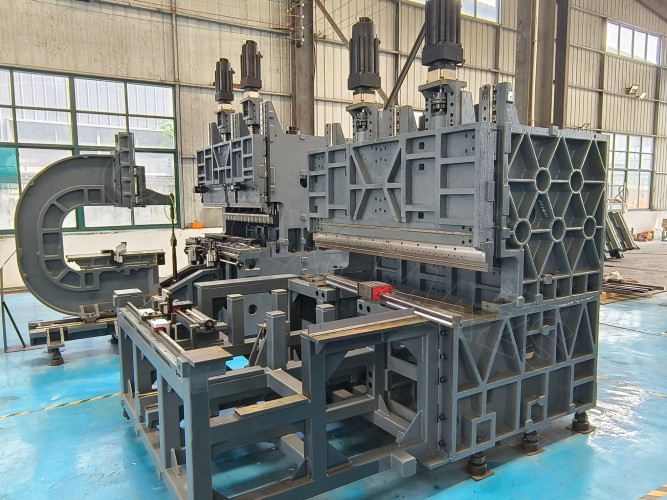

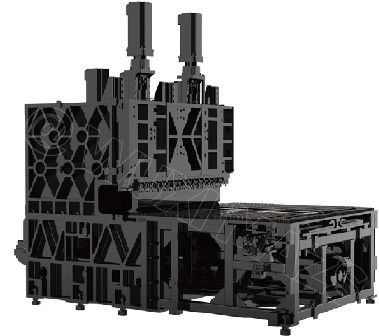

High-grade Cast Body

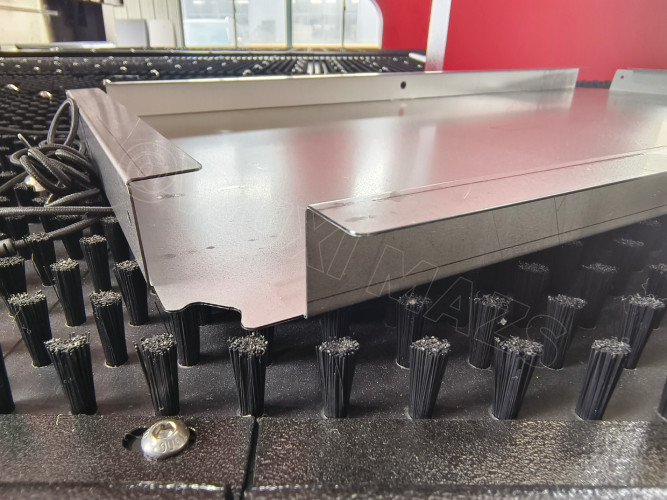

Graphic Bending Case 1

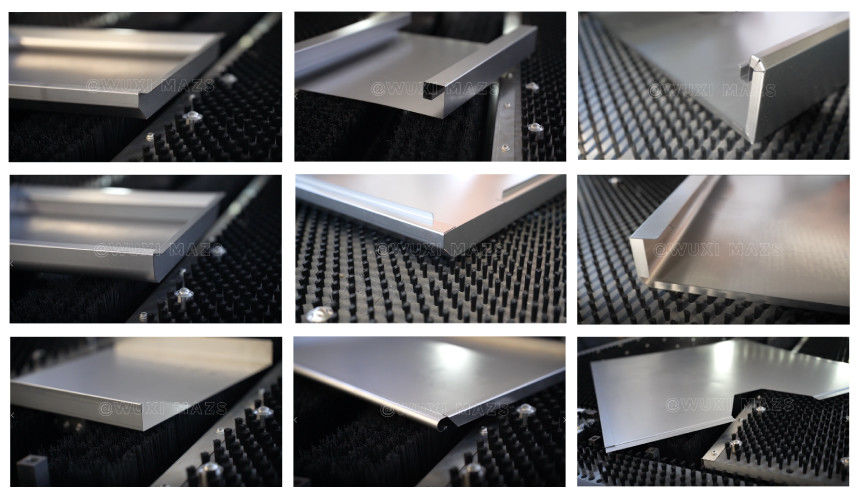

Bending Graphics 1
For MAZS MAY-2015 intelligent panel bender, no molds are required. It can bend various complex shapes, such as circular arc, crushed edge, loop type, closed type, etc. It can bend complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
