High Precision CNC Panel Bender Metal Press Brake 170mm 300mm For Metal Fabrication

Name: High Precision CNC Panel Bender Metal Press Brake 170mm 300mm For Metal Fabrication
Brand: MAZS
SKU: MAY-**15
Rating: 4.5 (181 reviews)

Basic Information

Place of Origin:	China
Brand Name:	MAZS
Certification:	CE, ISO
Model Number:	MAY-**15

Minimum Order Quantity:	1 Set
Price:	RMB/USD/EURO
Packaging Details:	Pallet, wooden case and other standard export packaging
Delivery Time:	60~120 days
Payment Terms:	T/T, L/C
Supply Ability:	50 ~60 sets per month

Get Best Price Contact Now

Product Name:	CNC Bending Machine	Waterproof Rating:	IPX-8
Suitable Material:	Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel	Feeding Method:	Pressing Arm
Standard Axis Quantity:	15	Max. Bending Size:	2500*1500mm
Max. Feeding Speed:	90 M/min.	Warranty:	1 Year
Highlight:	High Precision CNC Panel Bender ODM , CNC Panel Bender 170mm , metal press brake 300mm

CNC Automatic High Precision Sheet Panel Bender Bending Machine for Metal Fabrication

Product Description:

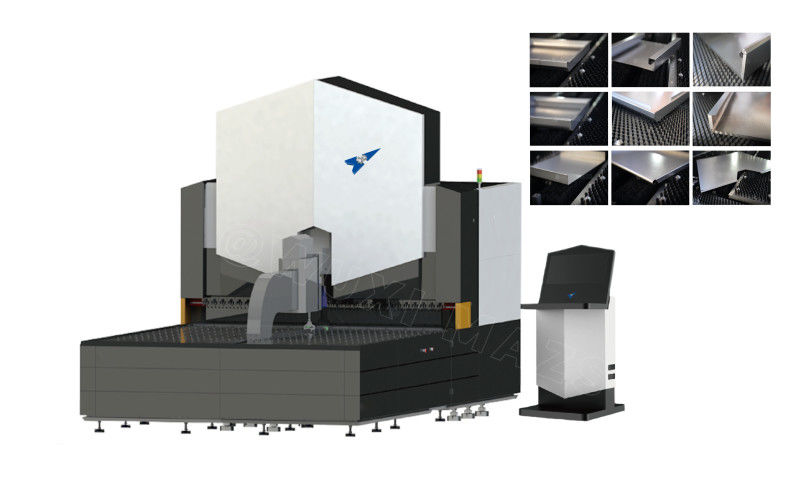

MAY-**15 Intelligent Panel Bender

The entire machine is designed and produced according to high-precision machine tools, with upgraded upper press blade structure and standard bending thickness of 2.0mm cold-rolled sheet.

Equipped with the patented power hinge blade as standard to avoid scraping and scratches;

Adopting dual mobile brackets, it can flexibly achieve left and right software compensation;

Standard patented quick clip upper press knife for easy disassembly;

This series has more functions such as automatic borrowing, oblique borrowing, and C-axis rotation strengthening, with a wider range of applications and superior performance in stability, accuracy, reliability, and other aspects.

Features:

* Industry 4.0 architecture, which can be upgraded smoothly.

* Fast speed, only 0.2 seconds per time.

* Rapid prototyping of sheets, high consistency.

* Low power consumption.

* Simple maintenance and low cost.

* High degree of automation, simple operation, low labor requirements.

* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.

* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.

* Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, docking robotic arm loading and unloading are optional.

* MAZS intelligent bending center has rich software and hardware interfaces, laying a good foundation for intelligent factories.

* The control system realizes 15-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.

* The unbalanced load detection system can effectively protect the machine and the sheets.

* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.

* The cloud operation and maintenance management system can monitor the operation of the machine in real time, and can carry out all-round customized management of the company's business.

* Friendly man-machine interface, easy to understand, flexible programming.

* For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming.

Technical Parameters:

Description	Technical Parameters for Panel Bending Center
	MAY-1415	MAY-2015	MAY-2515
Feeding method	Pressing arm
Positioning method	Y axis double lift automatic positioning tools
Max. bending speed	0.2 s/time
Max. bending width	1400mm	2000mm	2500mm
Max. bending height	170mm/300mm
Rated voltage	380V
Total motor power	38Kw	77Kw	79Kw
Average power	about 1.9Kw	about 2.6Kw	about 2.9Kw
Noise	50dB
Machine size	440190290cm	510265 330cm	565* 300* 340cm
Total machine weight	about 15t	about 18t	about 23t
Max. bending thickness (thicker panel customized)	UST 515N/ mm2 304 stainless steel 1 . 5 mm
	UST 410N/mm2 cold panel 2 . 0 mm
	UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm
Minimum panel thickness	0.35mm
Four sides forming minimum inner size	140* 190mm
Double sides forming minimum inner size	140mm
Max. bending size	1400* 1400mm	2000*1500mm	2500*1500mm
Axis qty.	standard synchronized 15 axis
Power hinge knife	standard

Bending Application Cases:

Graphic Bending Case 1

Bending Graphics 1

High Precision CNC Panel Bender Metal Press Brake 170mm 300mm For Metal Fabrication 1

Bending Configuration 1

High Precision CNC Panel Bender Metal Press Brake 170mm 300mm For Metal Fabrication 2

Graphic Bending Case 2

Bending Graphics 2

Bending Configuration 2

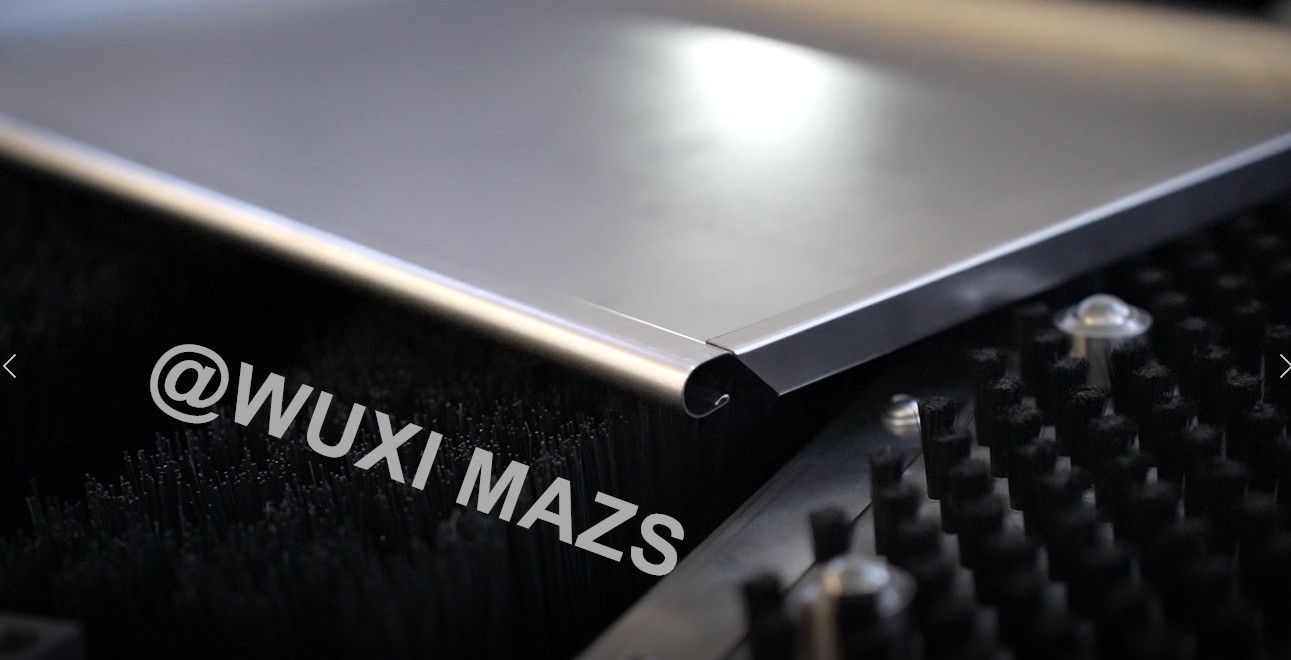

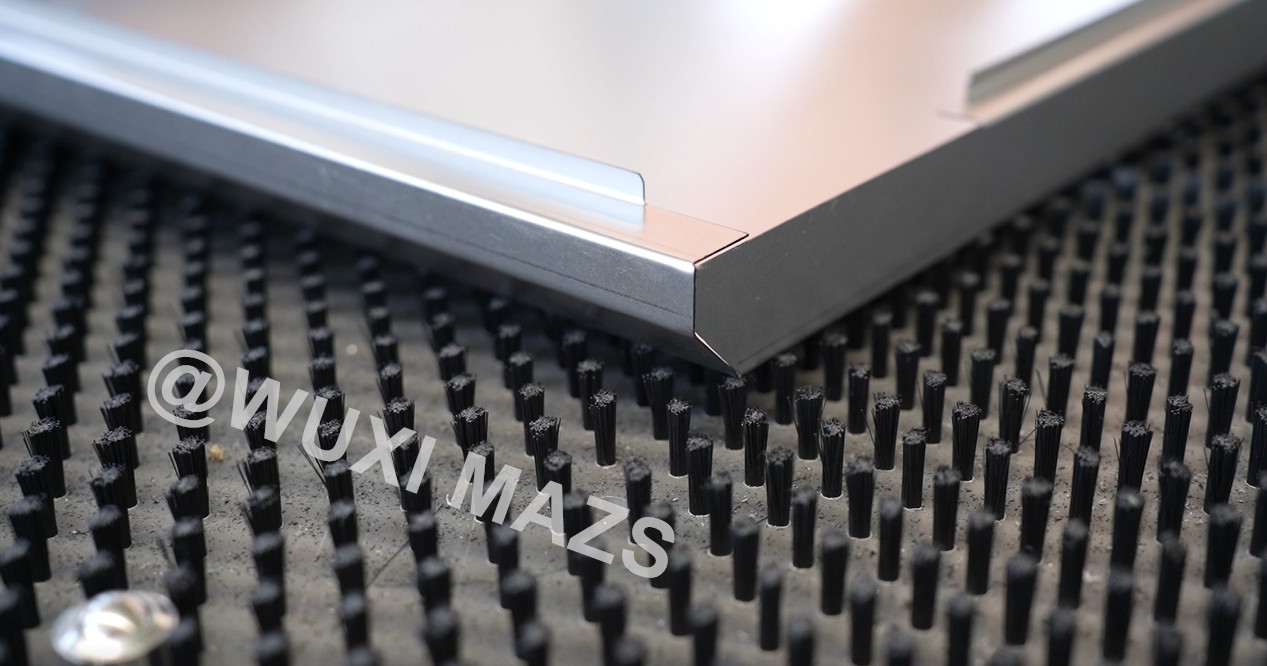

Real Folding Sheets Forming Display:

- No moulds are required for the MAZS MAY-**15 series intelligent plate bending machine.

- It can bend various complex shapes, such as circular arc, crushed edge, loop type, closed type, etc.

- It can bend complex shapes of various combinations, such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of various sheets in different industries.

High Precision CNC Panel Bender Metal Press Brake 170mm 300mm For Metal Fabrication 5

Applications:

MAZS metal sheet bender can be widely used for following industries:

√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...

√ Kitchenware: refrigerator, air conditioning, stove...

√ Furniture

√ Electrical cabinets

√ Decorations

Support and Services:

MAZS provides:

* Safe stock spare parts

Provide users with a complete inventory of accessories, ensure that accessories and wearing parts are replaced in time, and escort users' daily production.

* 7x24 Online service

Provide 7x24 hours of after-sales online services, maximize the protection of user’s daily production plans, realizing worryfree after-sale service.

* Lifetime service tracking

Establish a uniquely encoded user profile tracking and recording the details of the operation of the device, and providing lifelong maintenance services for cooperative users.

Packing and Shipping:

Packaging and Shipping for CNC Bending Machine:

* The CNC Bending Machine will be packed in wooden crates or cases.

* The package is designed to protect the machine from humidity and physical damage during transportation.

* The packing will meet international shipping standard.

* The machine can be shipped by air, sea, truck, or train.

FAQ:

Q1: What is the feeding type of CNC Bending Machine?

A1: MAY-**15 series intelligent panel bender adopts pressing arm feeding method.

Q2: How many axis it uses?

A2: Standard axis quantity is 15.

Q3: What kind of work pieces are the CNC Bending Machine suitable for?

A3: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.

Q4: What functions do it have?

A4: It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application.

Q5: What is the warranty time?

A5: one year.
