WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-8 |
|---|---|---|---|
| Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel | Feeding Method: | Pressing Arm |
| Standard Axis Quantity: | 15 | Positioning Method: | Y Axis Double Lift Automatic Positioning Tools |
| Max. Bending Size: | 2500*1500mm | Warranty: | 1 Year |
| Highlight: | Intelligent CNC Panel Bender,aluminum CNC Panel Bender ODM,hydraulic sheet metal brake 0.2s/time |
||

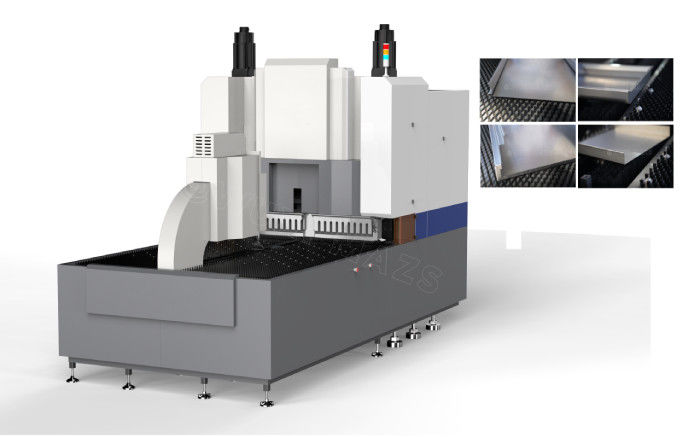

MAZS MAY-**15 series intelligent panel bender is designed and produced according to the standard of high-precision machine tools. It uses pressing arm feeding method and is suitable for the mesh, corrugated, hollow and various flat or special-shaped work pieces.
It has automatic reposition, oblique reposition, double C-axis rotation, wider range of application, etc, and has the outstanding performance in terms of stability, reliability, etc.
| Items | Technical Parameters for Panel Bending Center | ||
| MAY-1415 | MAY-2015 | MAY-2515 | |
| Feeding method | Pressing arm | Pressing arm | Pressing arm |
| Positioning method | Y axis double lift automatic positioning tools | Y axis double lift automatic positioning tools | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time | 0.2 s/time | 0.2 s/time |
| Max. bending width | 1400mm | 2000mm | 2500mm |
| Max. bending height | 170mm | 170mm | 170mm |
| Rated voltage | 380V | 380V | 380V |
| Total motor power | 40Kw | 77Kw | 79Kw |
| Average power | about 1.9Kw | about 2.5Kw | about 2.9Kw |
| Noise | 50dB | 50dB | 50dB |
| Machine size | 440*190*290cm | 510*265* 330cm | 565* 300* 340cm |
| Total machine weight | about 12t | about 18t | about 23t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 2.0mm | UST 515N/mm2 304 stainless steel 2.0mm | UST 515N/mm2 304 stainless steel 2.0mm |
| UST 410N/mm2 cold panel 3.0mm | UST 410N/mm2 cold panel 3.0mm | UST 410N/mm2 cold panel 3.0mm | |
| Minimum panel thickness | 0.35mm | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 160* 210mm | 160* 210mm | 160* 210mm |
| Double sides forming minimum inner size | 160mm | 160mm | 160mm |
| Max. bending size | 1400* 1400mm | 2000*1500mm | 2500*1500mm |
| Axis qty. | standard synchronized 15 axis | standard synchronized 15 axis | standard synchronized 15 axis |
| Power hinge knife | standard | standard | standard |
High-grade Cast Body
The main body of the machin is one-piece molding.

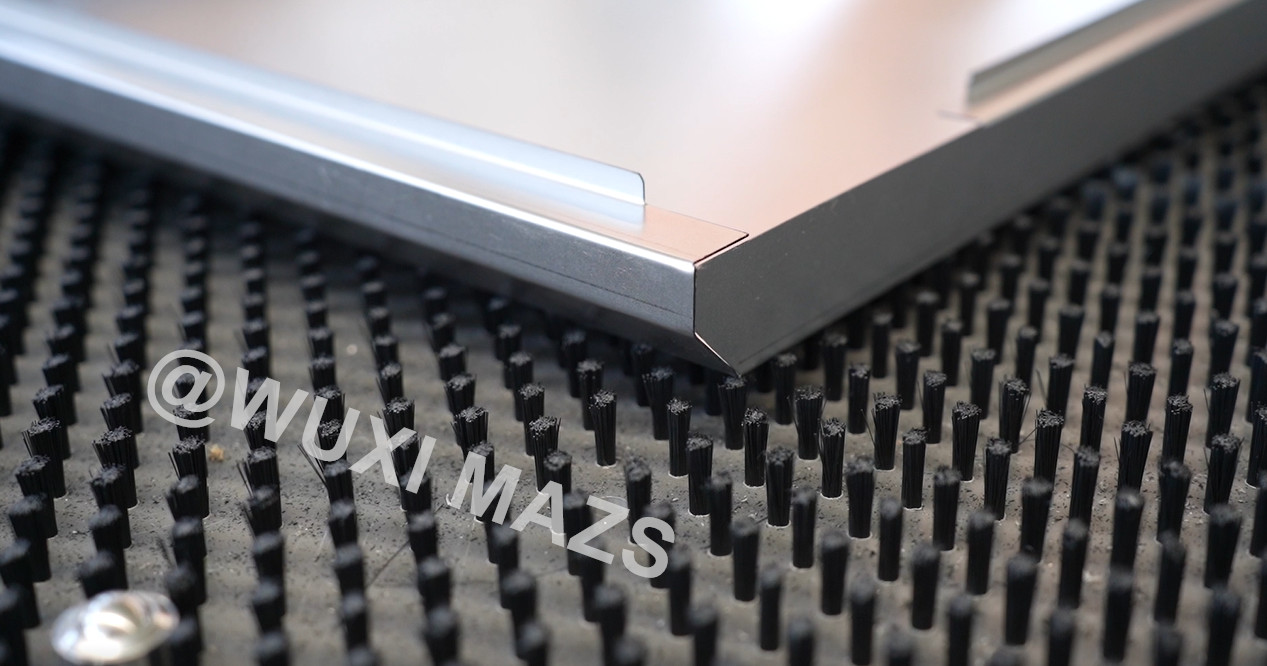

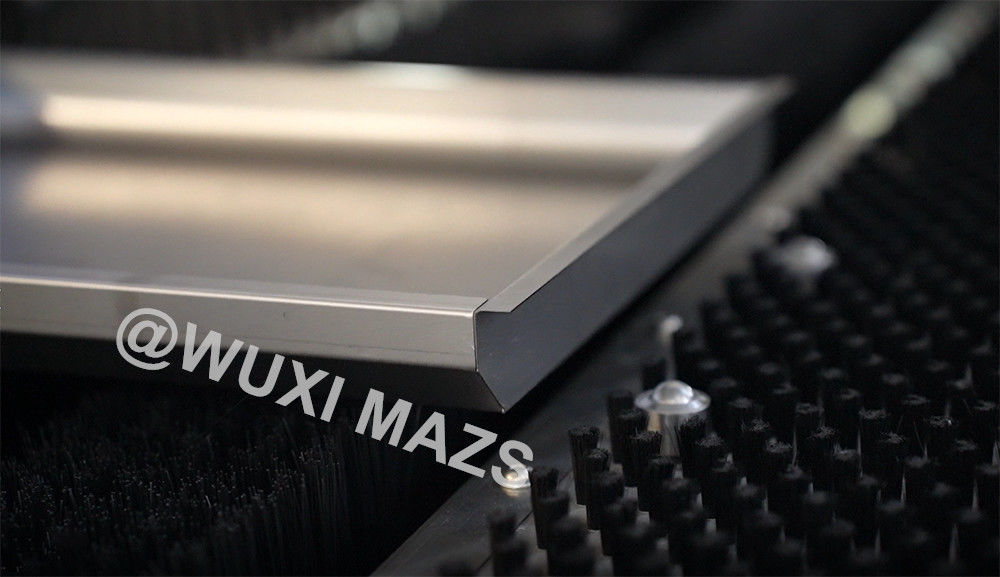

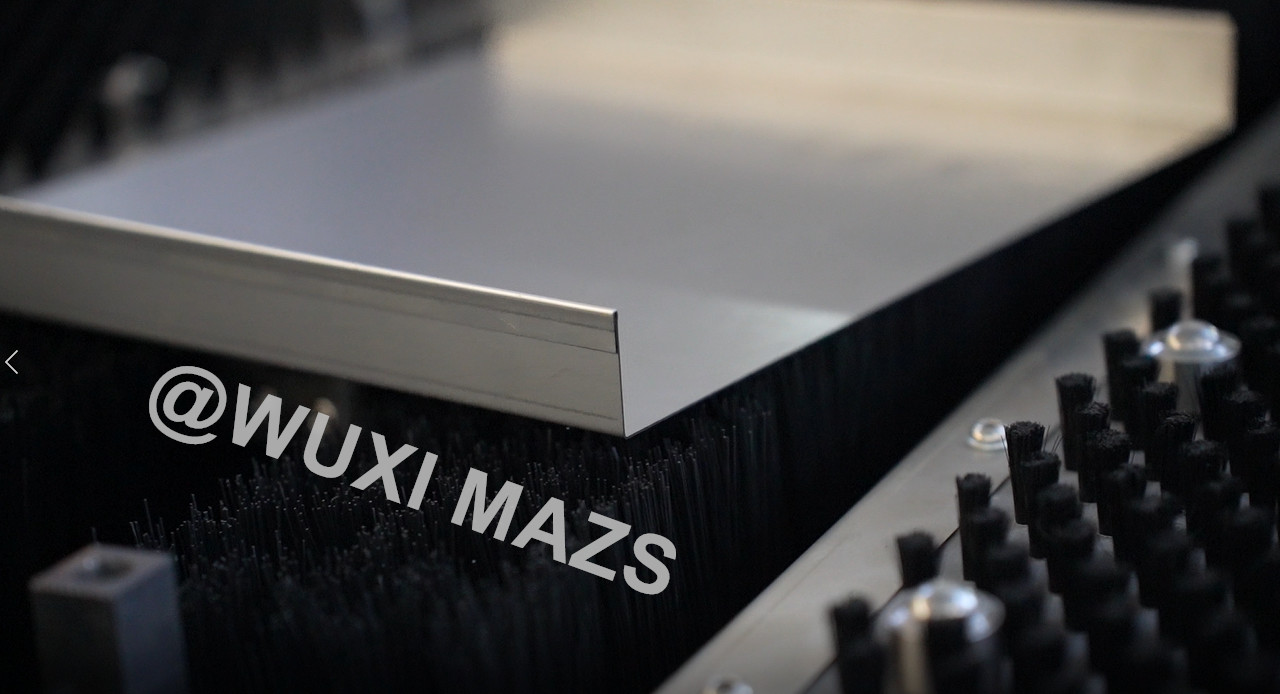

Graphic Bending Case 1

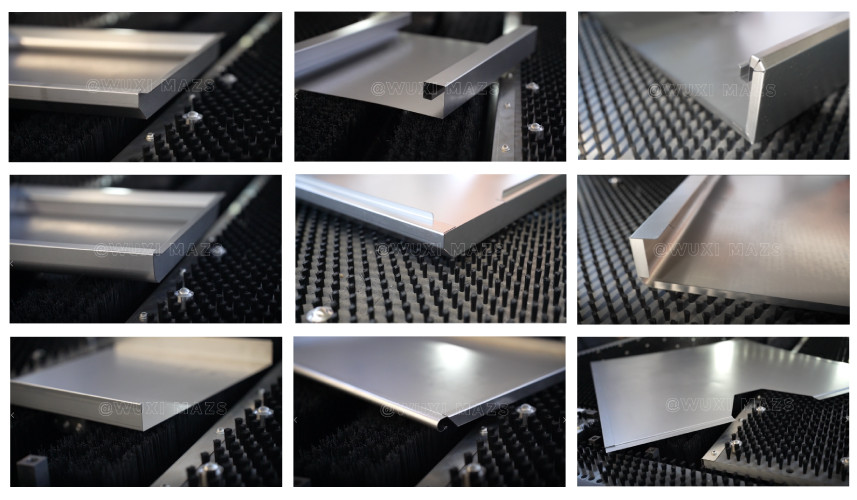

Bending Graphics 1
MAZS flexible intelligent bending center does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
