WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-**09 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 to 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | CNC Panel Bender | Waterproof Rating: | IPX-7 |
|---|---|---|---|
| Feeding Method: | Suction Cup | Position Method: | Y Axis Three Positioning Rulers |
| Suitable Material: | Stainless Steel, Aluminum Plate, Cold Plate | System Minimum Accuracy: | 0.001mm |
| Panel Sheet Thickness: | 0.35-1.6mm | Sheet Size: | Max. 1400*1400mm |
| Highlight: | 0.35mm CNC Press Brake,1.6mm CNC Press Brake,sheet metal bending tools 1400mm |
||

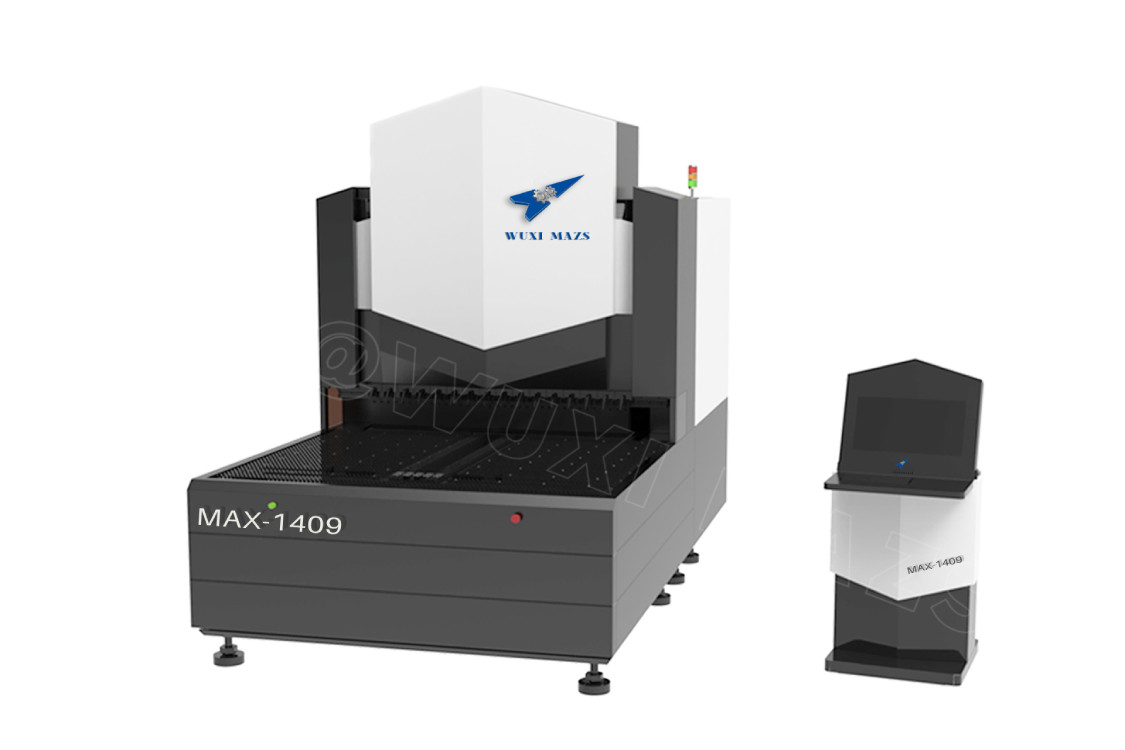

| Items | Technical Parameters for Panel Bending Center | |
| MAX-1009 | MAX-1409 | |
| Feeding method | Suction cup | Suction cup |

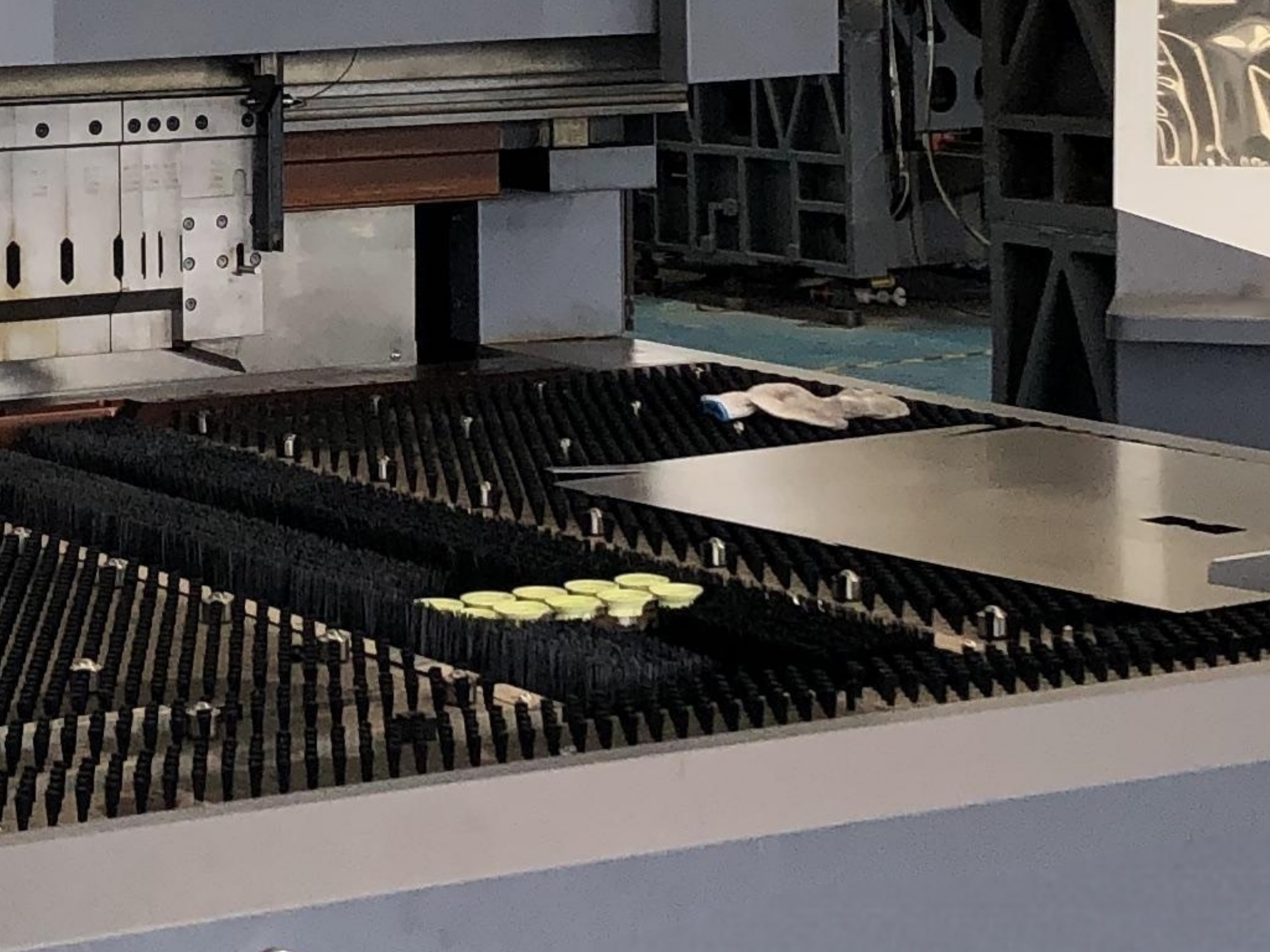

| Work table structure | brush | brush |
| System minimum accuracy | 0.001mm | 0.001mm |
| Positioning method | Y axis three positioning rulers | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time | 0.2 s/time |
| Max. bending width | 1000mm | 1400mm |
| Max. bending height | 170mm | 170mm |
| Rated voltage | 380V | 380V |
| Total motor power | 25Kw | 34Kw |
| Average power | about 1.1Kw | about 1.5Kw |
| Noise | 50dB | 50dB |
| Machine size | 285*150*280cm | 365*190*290cm |
| Total machine weight | about 7t | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | |
| UST 265N/ mm2 aluminum panel 1.6mm | UST 265N/mm2 aluminum panel 1.6mm | |
| Minimum panel thickness | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 140*210mm | 140*210mm |
| Double sides forming minimum inner size | 140mm | 140mm |
| Max. bending size | 1000* 1000mm | 1400* 1400mm |
| Axis qty. | standard synchronized 9 axis | standard synchronized 9 axis |
| Hinge knife | common hinge knife | common hinge knife |

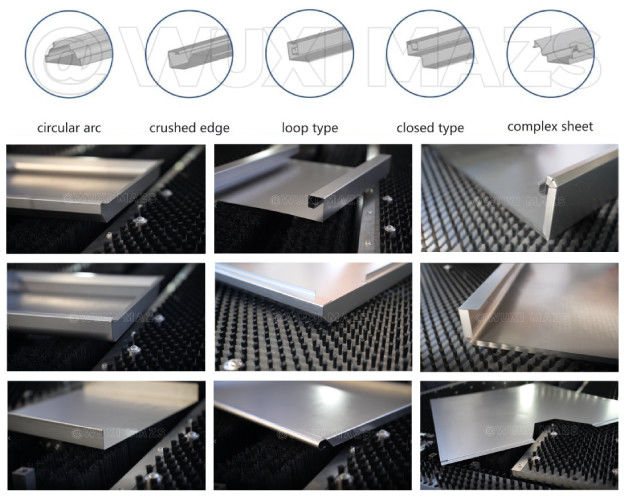

Graphic Bending Case
Bending Graphics
Bending Configuration
MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
