WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2015 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 to 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Four Edge Minimum Inner Size: | 140*190 Mm | Motor Power: | 79KW |
|---|---|---|---|
| Weight: | 20000KG | Double Edge Minimum Inner Size: | 140 Mm |
| Max Bending Length: | 1400mm To 2500mm | Voltage: | 380V/50HZ |

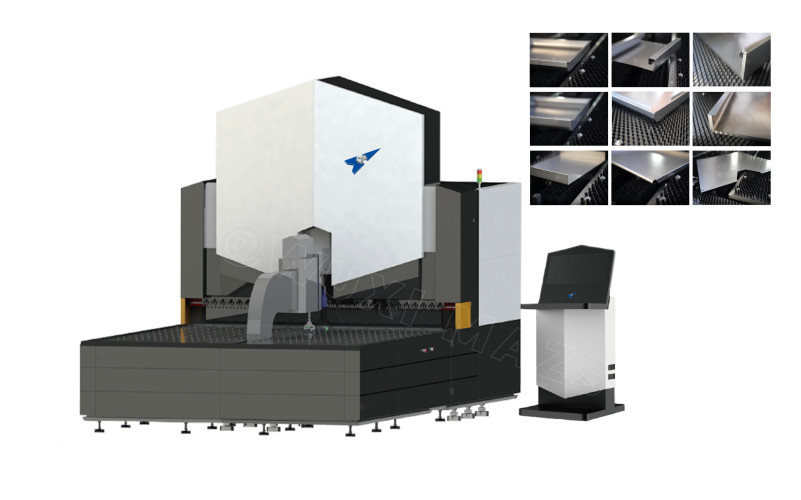

| Product Name: | Automatic Sheet Metal Panel Bender | Axis Quantity: | Standard Synchronized 15 Axis |
| Highlight: | 3mm automatic metal bending machine,automatic metal bending machine 1400mm,Panel Bender machine 2500mm |
||
|
CNC system
|
Lanhao Intelligent
|
PC-BASE self-developed 9 axis+ synchronized full servo CNC control system.
|
|
Servo motor
|
Joint R&D
|
Joint R&D, perfectly matching Lanhao control system.
|
|
Bearing
|
NACHI
|
Japan NACHI, bearings diameter up to 16mm.
|
|
Screw rod
|
Nanjing Technical Equipment
|
8020 heavy type grinding grade screw rod.
|
|
Line rail
|
Nanjing Technical Equipment
|
Nanjing Technical Equipment heavy-duty high-precision P3 class 55 roller type line rail.
|
|
Lathe bed
|
MAZS Intelligent
|
Self-developed high-grade casting machine body, using high-grade QT500-7 and gray iron 250 casting.
|
|
Tools
|
MAZS Intelligent
|
MAZS patented tool.
|
|
Pneumatic accessories
|
Japan SMC/Taiwan AirTAC
|
Japanese/Taiwanese brands
|
|
Reducer
|
Joint R&D
|
High-precision helical tooth planetary reducer
|
|
Coupling
|
TECMEN
|
Sino-German joint venture brand
|
|
Oil system
|
Taiwan Yuxiang
|
Taiwan brand
|
|
Suction cup
|
Airbest
|
Oil-proof material.
|
| Product Name | Specification |
|---|---|
| Automatic Sheet Metal Panel Bender | Double edge minimum inner size: 140mm Max Bending Length: 1400mm to 2500mm Motor Power: 79KW Axis quantity: Standard Synchronized 15 Axis Weight: 20000KG Max Feeding Speed: 0.2 Sec/time Max Bending Thickness: 3.0mm Voltage: 380V/50HZ Max Bending Width: 2500mm |
- Sheet Metal Panel Bender support and service include:
- Providing technical advice and assistance for installation, troubleshooting, and maintenance.
- Providing technical training and product seminars.
- Providing spare parts and repairs.
- Assisting customers in selecting the right model for their specific requirements.
- Providing warranty and after-sales service.
The Sheet Metal Panel Bender will be packaged in a cardboard box with bubble wrap and foam padding to protect it during shipping. The box will be labelled with the product name and a warning to handle with care. We will use a reputable shipping company to ensure the product is delivered safely and on time.
