18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending

18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending
18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending
18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending
Basic Information
Place of Origin: China
Brand Name: MAZS
Certification: CE, ISO
Model Number: MAY-**18
Minimum Order Quantity: 1 Set
Price: RMB/USD/EURO
Packaging Details: wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time: 60 days to 120 days
Payment Terms: T/T or L/C
Supply Ability: 50 to 60 sets per month
Get Best Price Contact Now
Fast Bending Speed: 0.2 Second/time Total Motor Power: 244KW
Four Edge Minimum Inner Size: 140*190mm Max. Bending Width: 2500mm
Average Power: About 5.8KW Material: Metal Plate, Sheet Metal
Rated Voltage: 380V Max. Bending Height: 170mm
Highlight:

18 Axis CNC Sheet Metal Folder

,

CNC Sheet Metal Folder 244KW

,

244KW cnc sheet metal bending machine

CNC Folding Machine with 244KW Total Motor Power Lead Time 60-120 Days

Product Description:

The MAY-18 Axis is an intelligent, flexible bending center. Representing the state-of-the-art machine tool design, this series has three axes and three motors, enabling it to perform a wide variety of intricate shaping tasks.
The MAY-18 Axis can shape a variety of flat or special shapes of work pieces, including mesh, corrugated, or hollow aspects, and it can do this quickly. CNC control allows for the deflection compensation to be easily adjusted, resulting in higher thickness bending panels and faster bending speeds.
Moreover, the upper press tooling system uses a fast release and fast installation type, allowing for the creation of even more intricate shapes. This efficient and flexible system allows for a multitude of shaping applications.

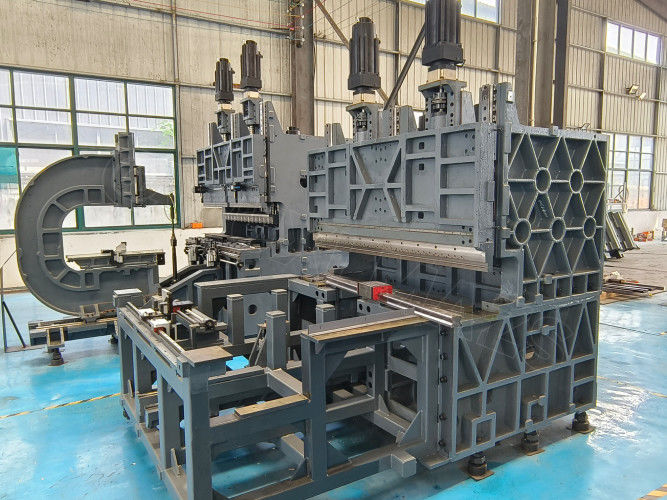

18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 0

Features:

The feeding method of this device is pressing arm and it is positioned by Y axis double lift automatic positioning tools. It has 18 standard axes.
It can process a range of metal materials, such as stainless steel, aluminum panel, cold panel and others. The metal sheet thickness it can handle is in the range of 0.35-3mm, while the size of the panel can be up to 3200*1500mm. Additionally, it is suitable for a wide variety of material, including mesh, corrugated, hollow and all kinds of flat panel or special shaped of work piece.
Apart from that, there are several special functions that this device offers. It includes automatic reposition, oblique reposition, improved C axis rotation speed and accuracy, standard power hinge knife, special tooling structure and pneumatic upper pressing tooling. The pneumatic upper pressing tooling is capable of bending more thicker panels.


Technical Parameters:

Feature Details
Material Metal Plate, Sheet Metal
Total Machine Weight About 19 Tons
Total Motor Power 244KW
Surface Treatment Painting
Power Hinge Knife Standard Equipped
Material Thickness 0.35-3.0mm
Double Sides Forming Minimum Inner Size 140mm
Rated Voltage 380V
Axis Quantity Standard Synchronized 18 Axis
Function Automatic computer controlled sheet metal bending, Metal sheet bending production, CNC sheet metal folding machine
Payment Term T/T, L/C


Applications:

This automatic intelligent bending center has a wide range of application in steel cabinet shell industries, such as file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet and water meter cabinet, just name a few.
Kitchenware industries, such as refrigerator, air conditioner and stove, also utilize this bending center to form metals.
The use of the center does not stop in the steel and kitchenware industry. It can also be used in furniture, ventilation, refrigeration, purification, door, decoration, elevator fields and many more.

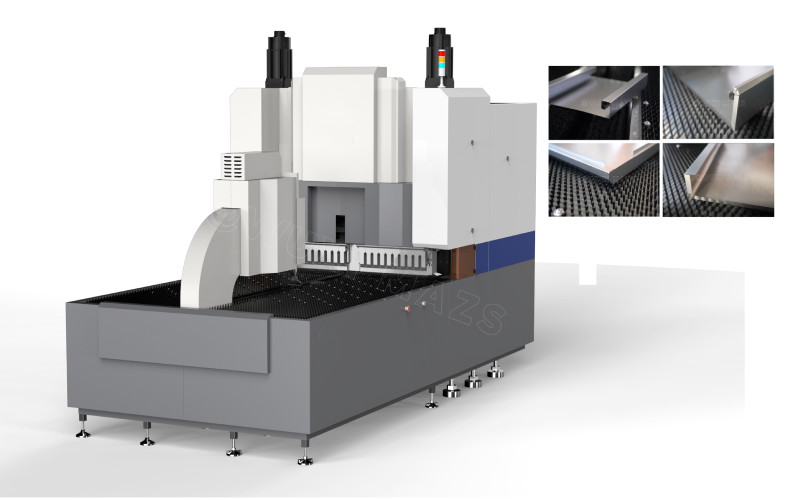

18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 1

Support and Services:

We offer technical support and service for CNC Sheet Metal Folder. Our team of experts provide comprehensive support, including:

Assistance in the selection and purchase of a CNC Sheet Metal Folder.
- Installation and setup of the sheet metal folder.
- Troubleshooting and maintenance assistance.
- Training and support on the operation of the sheet metal folder.
- Advice and guidance on the use of CNC Sheet Metal Folder.


Packing and Shipping:

CNC Sheet Metal Folder's packaging and shipping involves the following steps:

- The CNC Sheet Metal Folder will be securely packaged in a box with bubble wrap to protect it during shipping.
- The box will be sealed with tape to ensure that it is secure and does not open during transit.
- The box will be labeled with the customer's address and the content of the package.
- The package will be shipped with a reputable carrier and tracking information will be provided.
18 Axis CNC Sheet Metal Folder CNC Folding Machine 244KW Cnc Sheet Metal Bending 2

FAQ:

Q&A:
  • Q: What is CNC Sheet Metal Folder?
    A: CNC Sheet Metal Folder is a metalworking machine used to manufacture sheet metal parts. It is manufactured by MAZS with model number MAY-**18 and is certificated by IE and ISO.
  • Q: What is the minimum order quantity?
    A: The minimum order quantity for CNC Sheet Metal Folder is 1 set.
  • Q: How does CNC Sheet Metal Folder package?
    A: CNC Sheet Metal Folder packages with wooden case, polystyrene foam and other protective materials suitable for sea transportation.
  • Q: How long is the delivery time?
    A: The delivery time for CNC Sheet Metal Folder is 60 days to 120 days.
  • Q: What are the payment terms?
    A: The payment terms for CNC Sheet Metal Folder are T/T or L/C.
  • Q: How many CNC Sheet Metal Folders can MAZS supply per month?
    A: MAZS can supply 50 to 60 sets of CNC Sheet Metal Folders per month.

Tag:

CNC Sheet Metal Folder 50dB,

ISO9001 CNC Sheet Metal Folder,

244KW cnc sheet metal bending machine
