WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |

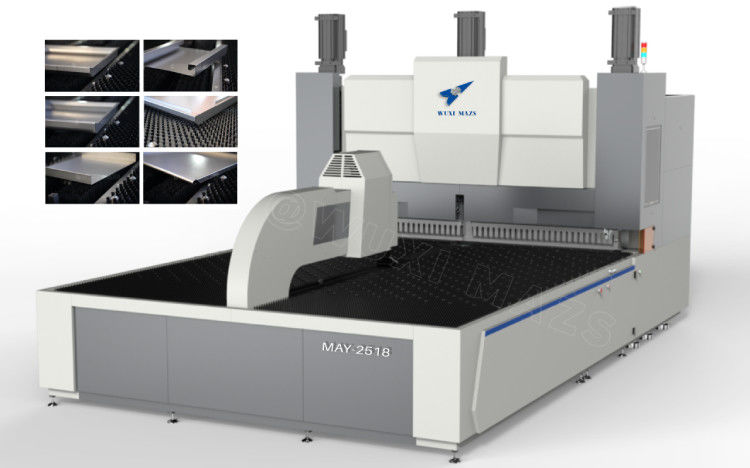

| Model Number: | MAY-2518 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Processing Method: | CNC Controlled Bending | Feeding Method: | Pressing Arm |
|---|---|---|---|
| Fast Bending Speed: | 0.2 Second/time | Four Edge Minimum Inner Size: | 140*190mm |
| Max. Bending Height: | 170mm | Material: | Metal Plate, Sheet Metal |
| Total Motor Power: | 244KW | Total Machine Weight: | About 19 Tons |
| Highlight: | Double Sides CNC Sheet Metal Folder,Forming CNC Sheet Metal Folder 380V,High speed metal brake bender |
||
Double Sides Forming CNC Sheet Metal Folder Minimum Inner Size140mm Shipping By Sea
- Fast speed, only 0.2 seconds per time.

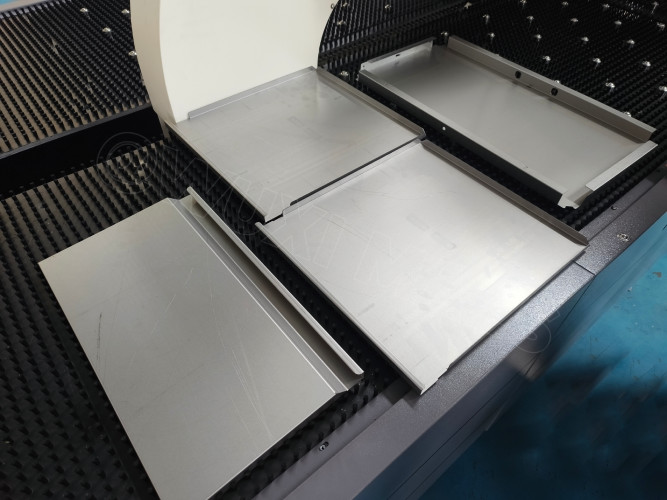

- Rapid prototyping of sheets, high consistency.
- Low power consumption.
- Simple maintenance and low cost.
- High degree of automation, simple operation, low labor requirements.

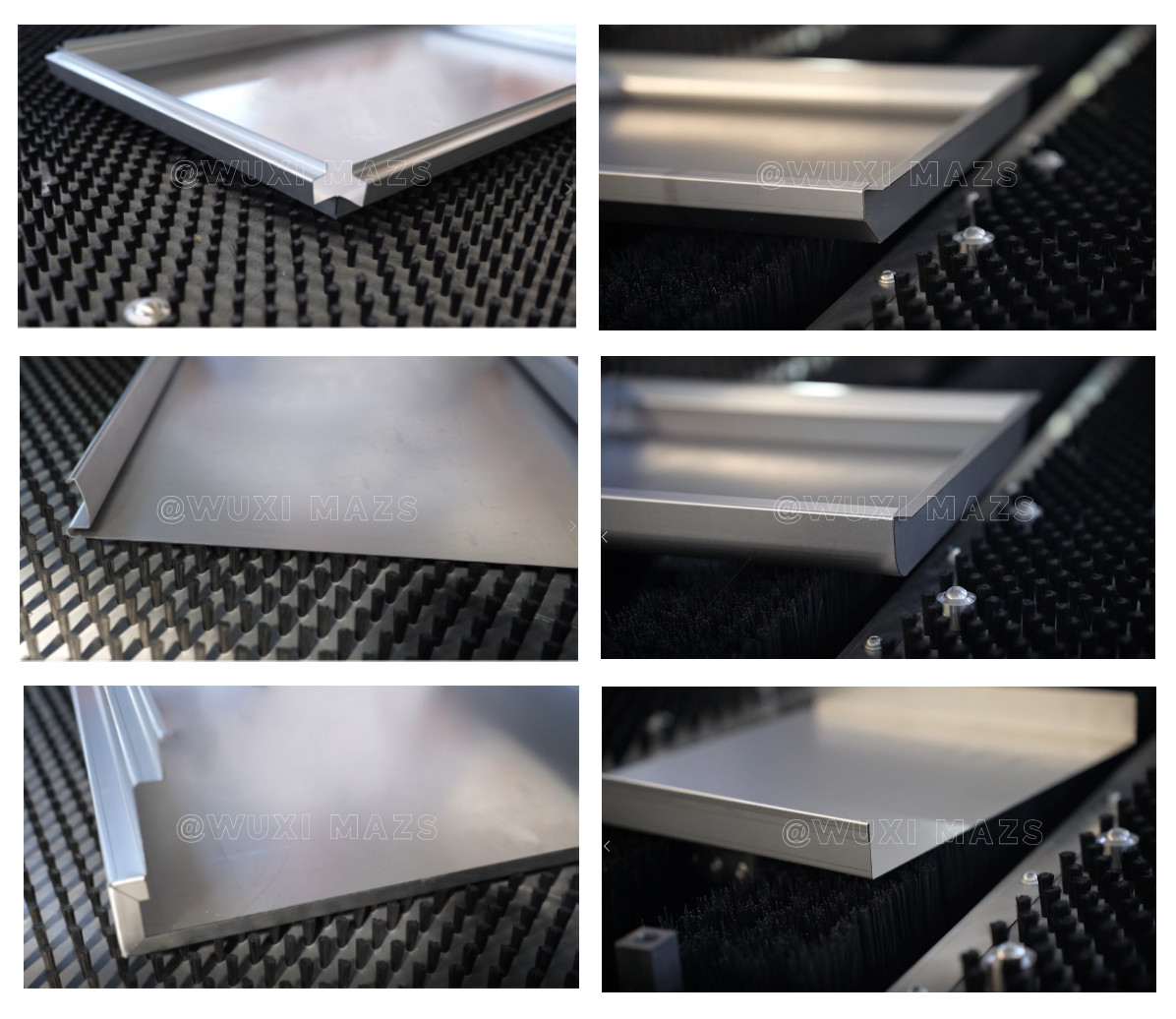

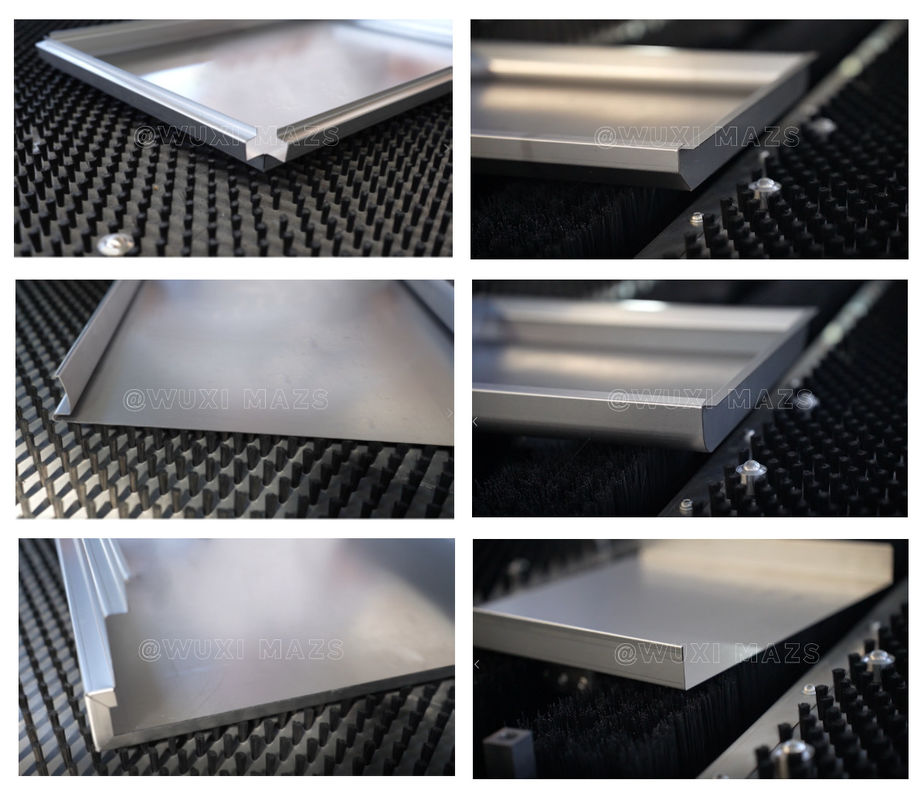

- No need for forming and molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.
- Applicable for a wide range of materials, such as stainless steel, cold-rolled sheet, etc.
- Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, docking robotic arm loading and unloading are optional.
- MAZS intelligent bending center has rich software and hardware interfaces, laying a good foundation for intelligent factories.
- The control system realizes 18-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.
- The unbalanced load detection system can effectively protect the machine and the sheets.
- The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.
- The cloud operation and maintenance management system can monitor the operation of the machine in real time, and can carry out all-round customized management of the company's business.
- Friendly man-machine interface, easy to understand, flexible programming.
- For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming.
|
Item
|
Technical Parameters |
|
Fast bending speed
|
0.2second /time
|
|
Max. bending width
|
2500mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380v
|
|
Total motor power
|
244Kw
|
|
Average power
|
about 5.8Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
629*300*345cm
|
|
Total machine weight
|
about 19t
|
|
Max. bending thickness
(thicker panel
customizable)
|
UST 515N/mm2 304 stainless steel 1.5mm
|
|
UST 410N/mm2 cold panel 2.0mm
|
|
|
UST 265N/mm2 aluminum panel 3.0mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*190mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
2500*1500mm
|
|
Axis QTY
|
standard synchronized 18 axis
|
|
Power hinge knife
|
standard
|
