WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**18 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Power Hinge Knife: | Standard Equipped | Total Machine Weight: | About 19 Tons |
|---|---|---|---|
| Payment Term: | T/T, L/C | Material: | Metal Plate, Sheet Metal |
| Noise: | About 50dB | Max. Bending Size: | 2500*1500mm |
| Double Sides Forming Minimum Inner Size: | 140mm | Max. Bending Thickness: | 3.0mm |
| Highlight: | sheet metal bending brake 0.2 Second/Time,sheet metal bending brake 2500 x 1500mm,50dB sheet metal bending machine |
||

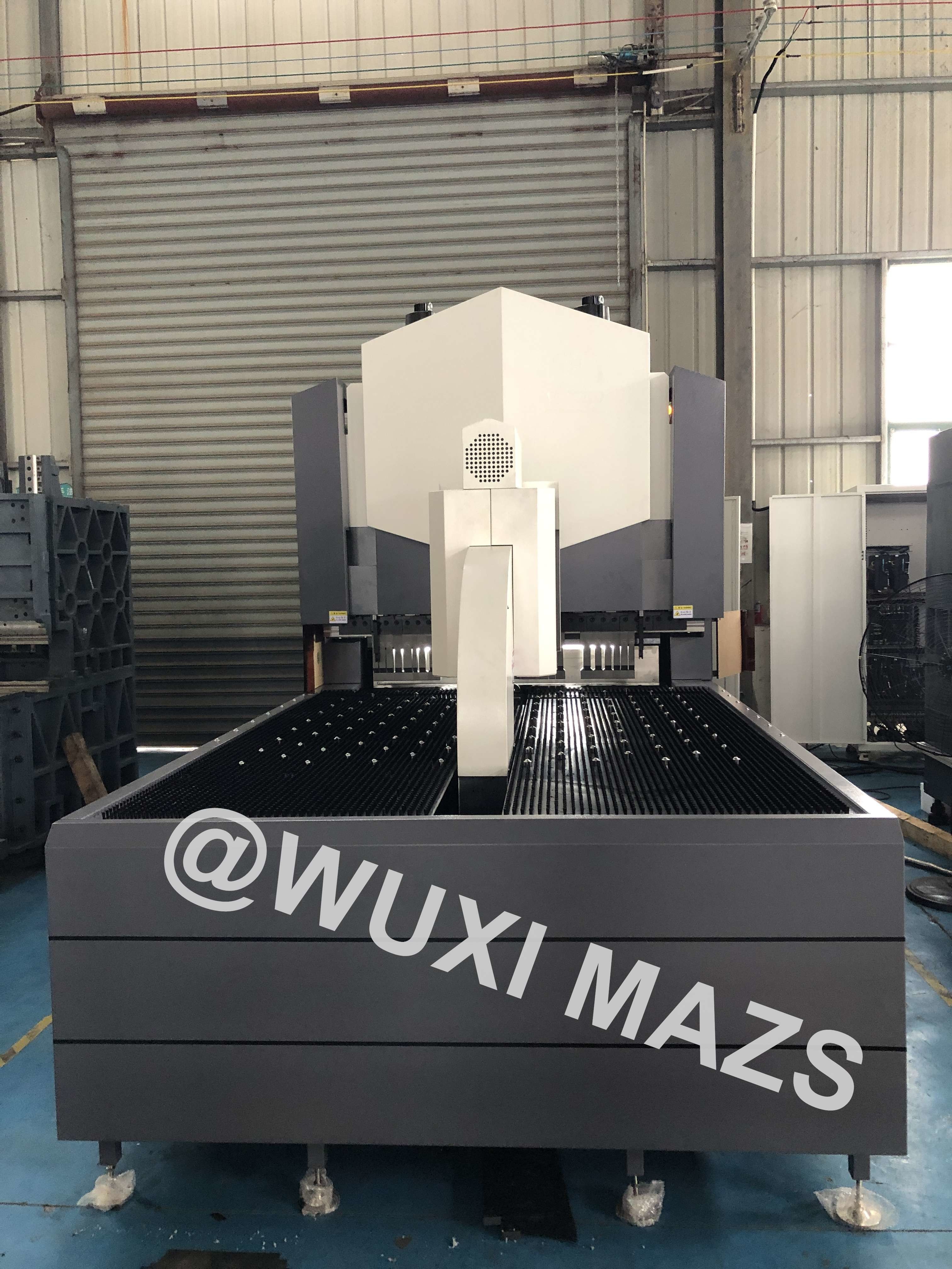

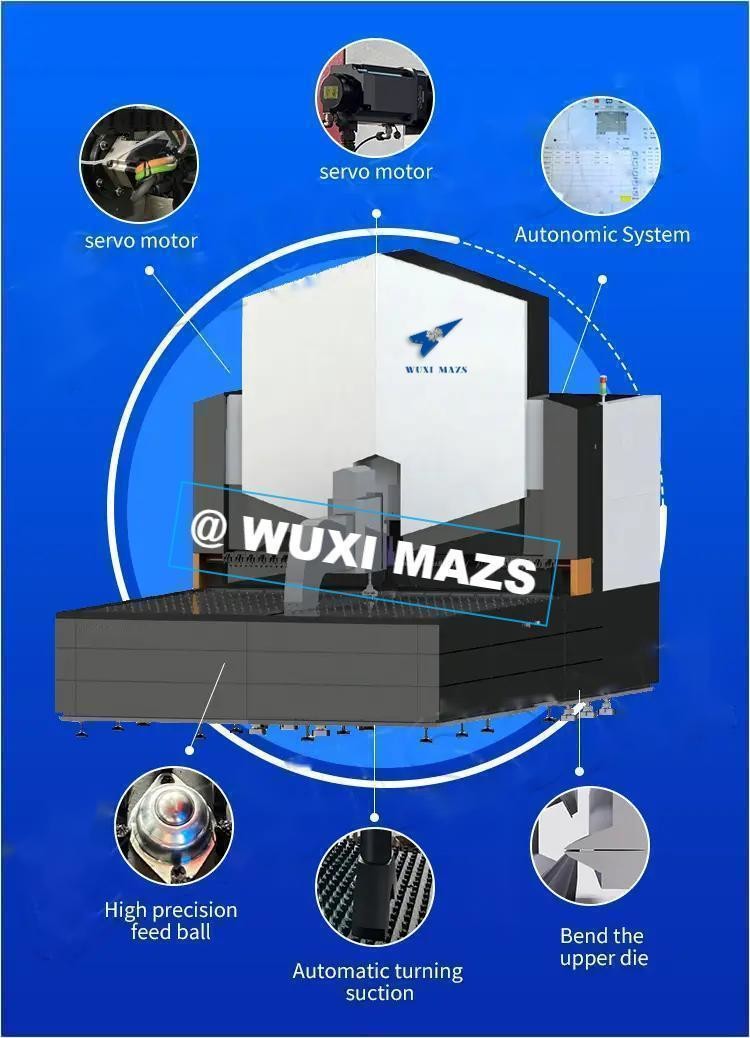

The MAY-18 Axis series is an intelligent flexible bending center which adopts the pressing arm feeding method. To meet the standard of high-precision machine tools, the machine is designed and produced with three axis and three motors.

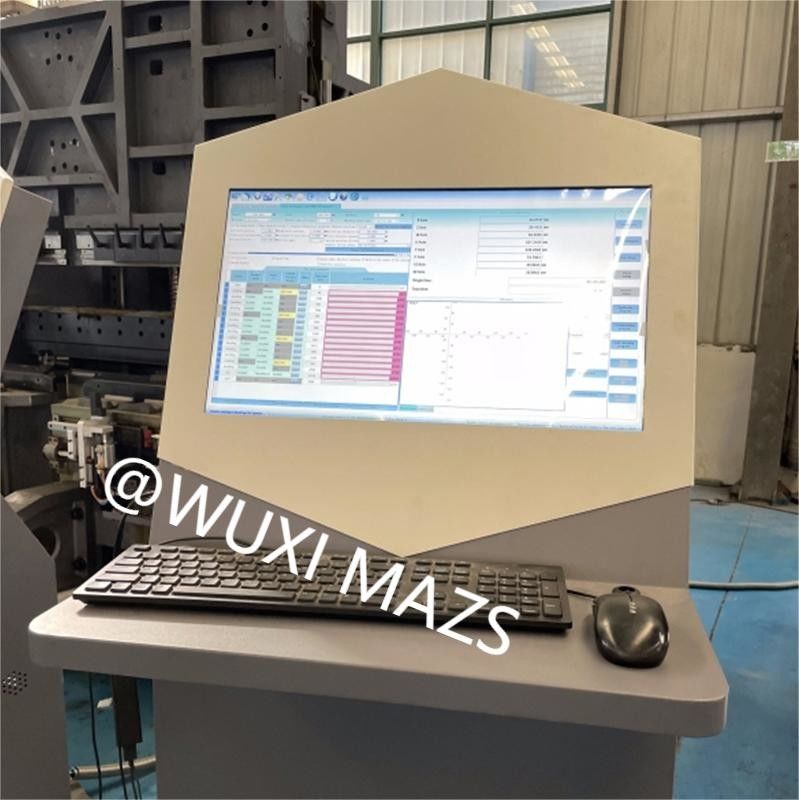

The bending center can process various work pieces like mesh, corrugated, hollow as well as different flat or special formed ones. The CNC control can regulate the deflection compensation. Besides, it can elongate the thickness of the bending panel and speed up the process.
More specially, it applies fast release and fast installation type upper press tooling.
The feeding method adopted is pressing arm.
Y axis double lift automatic positioning tools is adopted for positioning.
18 is the standard axis quantity used.
Stainless steel, aluminum panel, cold panel and other metal materials are suitable for usage.
Metal sheet thickness of 0.35-3mm is suitable.
Max. 3200*1500mm is the fixed panel size.

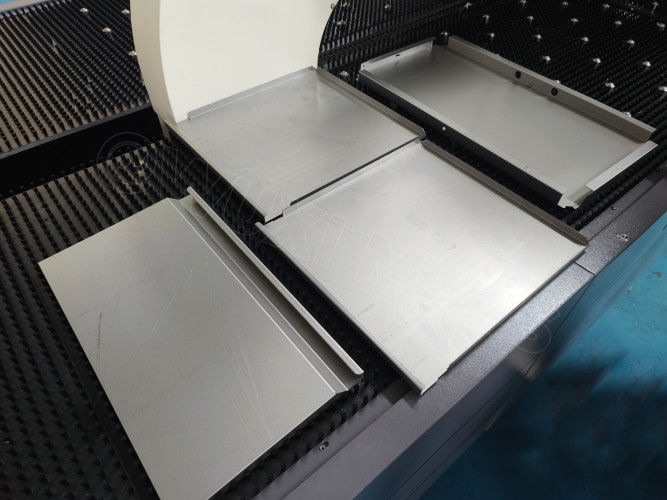

Mesh, corrugated, hollow and all kinds of flat panel or special shaped of work piece are required.
Automatic reposition, oblique reposition, improved C axis rotation speed and accuracy, standard power hinge knife, special tooling structure and pneumatic upper pressing tooling, which can bending more thicker panels, can also be attained.
| Parameter | Value |
|---|---|
| Fast Bending Speed | 0.2 Second/time |
| Total Motor Power | 244KW |
| Material Thickness | 0.35-3.0mm |
| Surface Treatment | Painting |
| Max. Bending Thickness | 3.0mm |
| Machine Size | 6290*3000*3450mm |
| Lead Time | 60-120 Days |
| Rated Voltage | 380V |
| Total Machine Weight | About 19 Tons |
| Axis Quantity | Standard Synchronized 18 Axis |
| Purpose | Metal sheet bending production, Automatic computer controlled sheet metal bending, Automatic computer controlled sheet metal bending and folding |
This automatic intelligent bending center is a versatile machine, capable of performing a wide array of tasks. Applications range from the production of steel cabinet shells — such as filing cabinets, tool cabinets, electrical cabinets, communication cabinets, gas cabinets and water meter cabinets — to kitchen-related items such as refrigerators, air conditioners and stoves, and metal-forming operations related to furniture, ventilation, refrigeration, purification, door industry, decoration and elevator.
Such a powerful tool is sure to be invaluable in myriad of fields, giving unparalleled support and reliability to companies in need of improved manufacturing processes and solutions.
We offer technical support and service for our CNC Sheet Metal Folder product. Our team of highly trained technicians can provide you with the service and support you need to ensure that your CNC Sheet Metal Folder is running smoothly.
We provide a wide range of technical support services from installation and setup, to on-site maintenance and repair. Our technicians are available to answer any questions you may have about your CNC Sheet Metal Folder, as well as provide assistance with troubleshooting any technical issues you may encounter.
We also offer a range of preventative maintenance services, such as regular inspections, oil changes, and filter replacements, to ensure that your CNC Sheet Metal Folder continues to operate at its peak performance.
For more information about our CNC Sheet Metal Folder technical support and service, please contact us today.
