3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife

3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife
3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife
3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife
Basic Information
Place of Origin: China
Brand Name: MAZS
Certification: CE, ISO
Model Number: MAY-**18
Minimum Order Quantity: 1 Set
Price: RMB/USD/EURO
Packaging Details: wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time: 60 days to 120 days
Payment Terms: T/T or L/C
Supply Ability: 50 to 60 sets per month
Get Best Price Contact Now
Machine Size: 6290*3000*3450mm Rated Voltage: 380V
Max. Bending Thickness: 3.0mm Material: Metal Plate, Sheet Metal
Max. Bending Size: 2500*1500mm Lead Time: 60-120 Days
Fast Bending Speed: 0.2 Second/time Material Thickness: 0.35-3.0mm
Highlight:

MAZS 3.0mm sheet metal folder

,

MAZS sheet metal folder CNC

,

MAZS metal bending machine ISO9001

CNC Sheet Metal Folder with Standard Equipped Power Hinge Knife and Seaworthy Packing for Painting

Product Description:

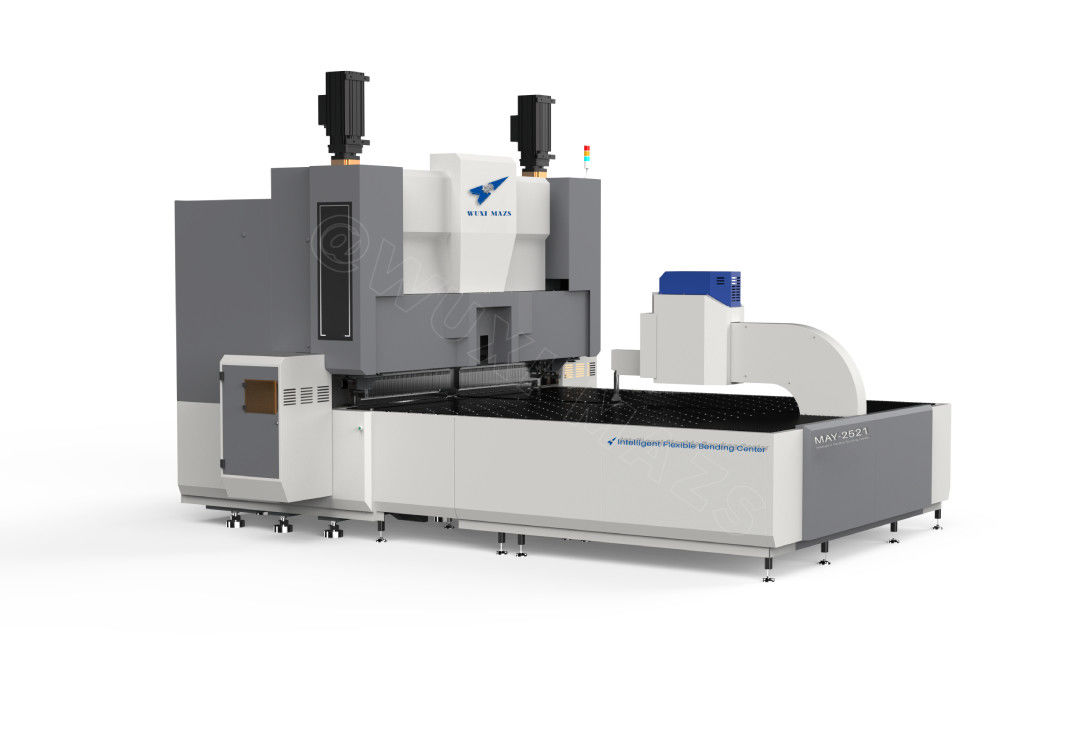

MAY-18 Axis Series- An Intelligent Flexible Bending Center

The MAY-18 Axis series is an intelligent flexible bending center that adopts the pressing arm feeding method. It is equipped with three axes and three motors, designed and produced based on the high-precision machine tool standard. The machine is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.

The deflection compensation of the machine can be regulated through CNC control. It also allows thicker panels to be bent and has a higher comprehensive bending speed. Plus, this machine supports a fast release and fast installation type press tooling.

3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 0

Features:

The feeding method used by this machine is pressing arm. In order to improve positioning accuracy, this machine is equipped with a Y axis double lift automatic positioning tools.
It can deal with 18 axes standard and be used for machining metals such as stainless steel, aluminum panel, cold panel and other metal materials with a thickness of 0.35 to 3mm, while its maximum panel size is 3200*1500mm. Furthermore, it is also suitable for processing all kinds of flat panel or special shaped of work piece, such as mesh, corrugated and hollow.
Additionally, this machine also provides some advanced features, such as automatic reposition, oblique reposition, improved C axis rotation speed and accuracy, standard power hinge knife, special tooling structure and pneumatic upper pressing tooling, which can bending more thicker panel.


Technical Parameters:

Technical Parameters
Details
Lead Time
60-120 Days
Payment Term
T/T, L/C
Total Machine Weight
About 19 Tons
Max. Bending Height
170mm
Noise
About 50dB
Max. Bending Width
2500mm
Material
Metal Plate, Sheet Metal
Packaging
Seaworthy Packing
Shipping Method
By Sea, Or As Your Required
Total Motor Power
244KW
Metal Sheet Bending Production
CNC Sheet Metal Folding Machine, CNC Sheet Metal Folder


Applications:

The Automatic Intelligent Bending Center has versatile applications in a wide range of industries. It can be used to address metal forming challenges, especially in the production of steel cabinet shells for files, tools, electrical equipment, communication devices, gas and water meters. Additionally, it can also be used in kitchenware production, such as refrigerators, air conditions, and cookers. It can even be employed in fields like furniture and door-making, ventilation, and elevator decoration.
Industries which can benefit from this technology include decoration, refrigeration, purification, elevators, and many others. The Automatic Intelligent Bending Center offers a design-efficient, cost-effective, and reliable solution to these challenges, and its potential should not be underestimated.
3.0mm Metal Bending Sheet Metal Folder CNC Standard Equipped Power Hinge Knife 1

Support and Services:

CNC Sheet Metal Folder Technical Support & Service

Our team of experts provides technical support and service for CNC Sheet Metal Folders. We offer a wide range of services to meet the needs of our customers, including:

- Installation and maintenance services

- Operator training

- Troubleshooting and repair services

- Software updates and upgrades

- Replacement parts and components

- Product warranty services

We strive to provide the highest quality of service and technical support, so you can get the most out of your CNC Sheet Metal Folder.



Packing and Shipping:

Packaging and Shipping for CNC Sheet Metal Folder:
The CNC Sheet Metal Folder will be packaged in a sturdy cardboard box with thick foam padding to ensure that it is protected during shipping. The box will be sealed with strong tape to prevent any damage or tampering. The box will also be clearly labeled with the product name and address of the recipient.
The CNC Sheet Metal Folder will be shipped via a reliable shipping service such as UPS, FedEx, or DHL with a tracking number provided. We will ensure that the product is properly packaged and securely fastened to the shipping pallet to prevent any damage during transit.


FAQ:

Q1: What is MAZS CNC Sheet Metal Folder?
A1: MAZS CNC Sheet Metal Folder is a kind of machine that can form and fold metal sheets into various shapes.
Q2: What is the model number of MAZS CNC Sheet Metal Folder?
A2: The model number of MAZS CNC Sheet Metal Folder is MAY-**18.
Q3: Where is MAZS CNC Sheet Metal Folder made?
A3: MAZS CNC Sheet Metal Folder is made in China.
Q4: What certifications does MAZS CNC Sheet Metal Folder have?
A4: MAZS CNC Sheet Metal Folder has IE and ISO certifications.
Q5: What is the minimum order quantity for MAZS CNC Sheet Metal Folder?
A5: The minimum order quantity for MAZS CNC Sheet Metal Folder is 1 set.
