WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-1415A |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 to 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Max Bending Length: | 1400mm | Max Feeding Speed: | 0.2 Sec/time |
|---|---|---|---|
| Max Bending Width: | 1400mm | Axis Quantity: | Standard Synchronized 15 Axis |
| Four Edge Minimum Inner Size: | 140*190 Mm | Motor Power: | 40KW |
| Voltage: | 380V/50HZ | Weight: | 12000KG |
| Highlight: | 40KW automatic metal bending machine,automatic metal bending machine 1400mm,sheet metal panel benders 1400mm |
||

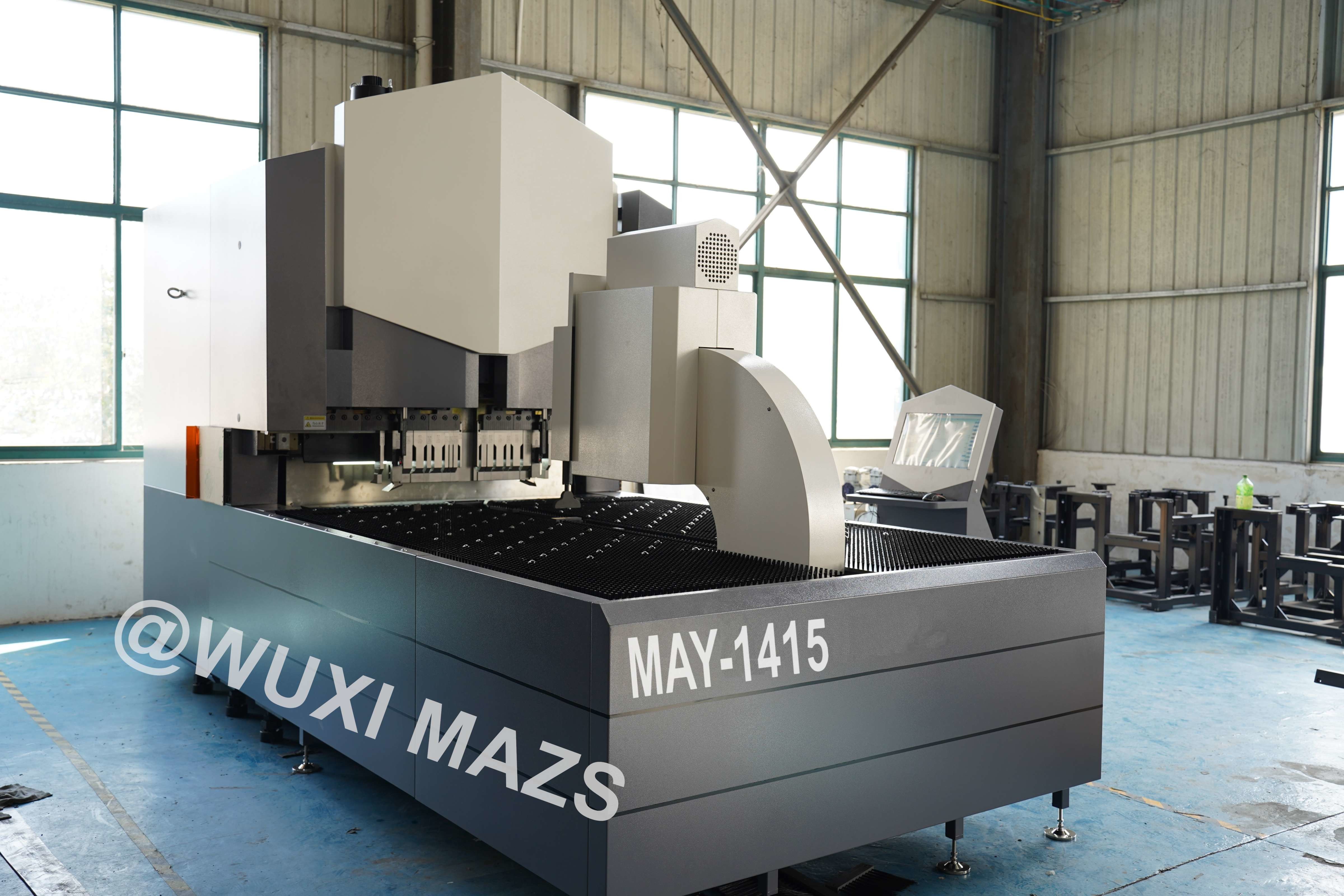

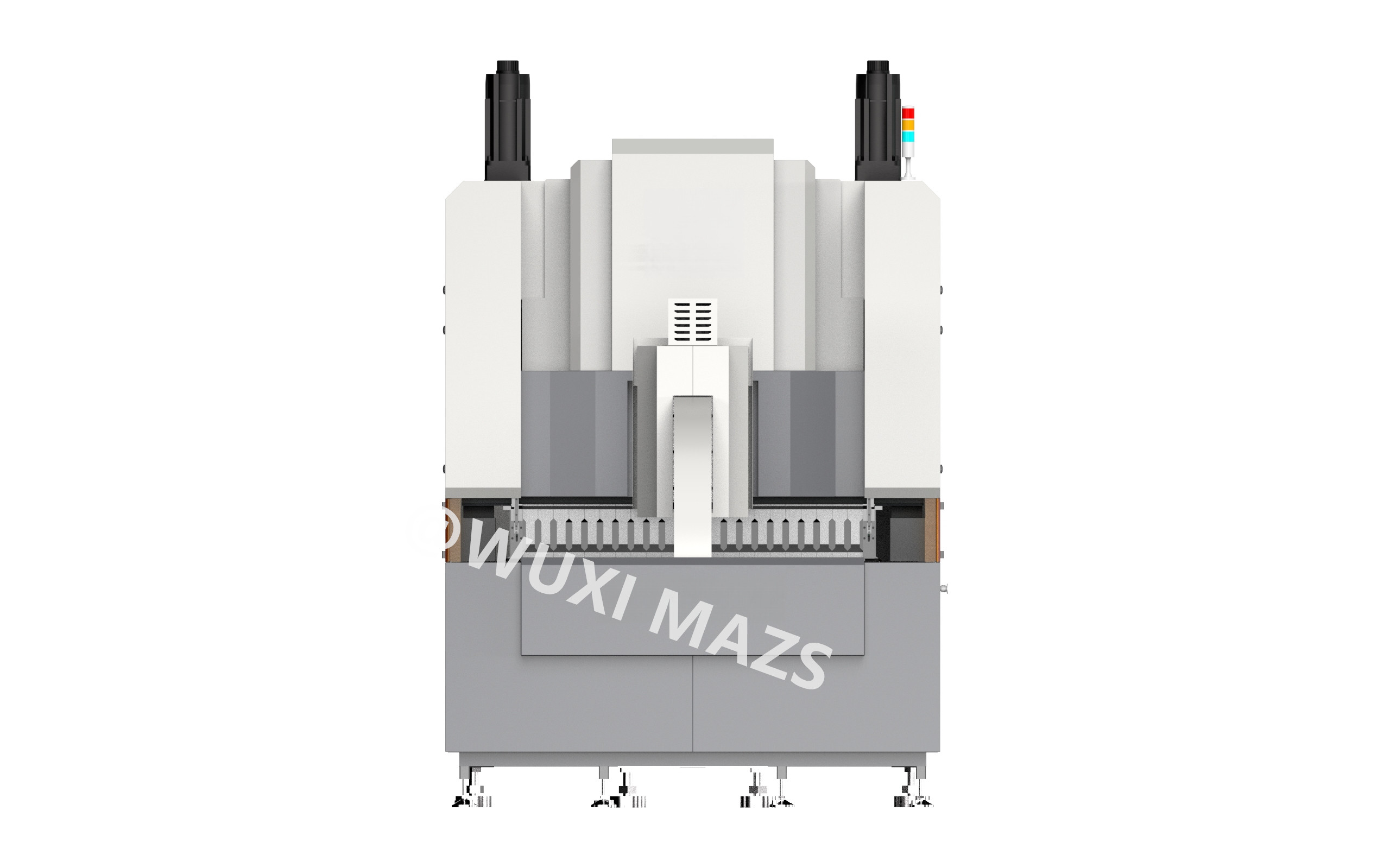

40KW MAY-1415A Automatic Pneumatic Press Knife Axis Sheet Metal Panel Bender
This MAY-1415A automatic pneumatic press knife axis sheet metal panel bender is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. This model has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.
The sheet metal plate automatic bending machine consists of a sturdy frame with a hydraulic or electric bending mechanism, has a flat work surface, and adopts pressing arm feeding method. This machine is equipped with a computer numerical control (CNC) system to control and coordinate the movement of the bending mechanism. It uses a combination of upper and lower tools, which apply pressure to the metal plate to produce the desired bend.
There are several advantages to using an automatic sheet metal bending machine rather than manual bending processes. They provide high precision and repeatability and increase the speed of production, reduce labor costs, and improve overall efficiency. They are also able to produce complex shapes with CNC programming capabilities, allowing for complex bending sequences.
Overall, automatic sheet metal plate bending machines are an essential machine in modern sheet metal manufacturing, allowing for efficient and accurate plate bending in a wide range of applications.
- Feeding method: Pressing arm
- Positioning method: Y axis double lift automatic positioning tools
- Standard axis quantity: 15
- Suitable material: Stainless steel, aluminum panel, cold panel and other metal materials
- Metal sheet thickness: 0.35-3mm
- Panel size: Max. 1400*1400mm
- Material requirement: Suitable for mesh, corrugated, hollow and all kinds of flat panel or special shaped of work piece
Functions: Automatic reposition, oblique reposition; Improved C axis rotation speed and accuracy; Standard power hinge knife; Special tooling structure and pneumatic upper pressing tooling ,which can bending more thicker panel.
| Parameters | Details |
|---|---|
| Axis quantity | Standard Synchronized 15 Axis |
| Four edge minimum inner size | 140*190 Mm |
| Max Feeding Speed | 0.2 Sec/time |
| Weight | 12000KG |
| Product Name | Automatic Sheet Metal Panel Bender |
| Motor Power | 40KW |
| Max Bending Width | 1400mm |
| Voltage | 380V/50HZ |
| Double edge minimum inner size | 140 Mm |
| Max Bending Length | 1400mm |
Sheet Metal Panel Bender is a highly advanced and reliable CNC sheet metal bending machine, manufactured by MAZS with model number MAY-1415A. It has been certified with IE and ISO standards.
The automatic intelligent panel bender bending center mainly solves the forming and bending problems of various complex sheet materials in sheet metal forming. Through multi-axis linkage, the equipment automatically completes the sheet metal folding work, which solves the dependence on mold and manual from a technical point of view, effectively improves the production efficiency and reduces the production cost. This set of bending centers can easily achieve curved, circular arc, crushed edge, loop shape, closed shape and other complex sheet metal bending requirements.
MAZS intelligent panel bender adopts universal bending mold, cost-saving and better efficiency . It could be used for various types of panel shape.
Wuxi MAZS Machinery Science & Technology Co., Ltd., a high-tech enterprise, is mainly engaged in the R&D, production and sales of intelligent flexible bending centers, self-propelled integrated robotic arms, multi-axis synchronized intelligent numerical control systems , and cloud operation and maintenance management platforms.
The company has famous brand gantry boring and milling center, more than 10 sets of horizontal machining center, vertical machining center, large horizontal boring and milling machine, more than 20 sets of FANUC high-precision slow-feeding machine tools, and Hangzhou grinding machine and many other processing equipment.
Sheet Metal Panel Bender technical support and service includes:
- Assistance with installation and setup
- Troubleshooting support
- Replacement parts and accessories
- Training and maintenance assistance
- Software and firmware updates
- Customer service and technical support
The Sheet Metal Panel Bender will be packaged in a box. It will be padded with foam and wrapped in plastic wrap to protect it from dirt and moisture. The box will be sealed with tape to secure it during shipping.
The Sheet Metal Panel Bender will be shipped by a major shipping carrier such as UPS, FedEx, or USPS. The shipment will be tracked to ensure it arrives safely and on time.
Sheet Metal Panel Bender
Q: What is the brand name?
A: The brand name is MAZS.
Q: What is the model number?
A: The model number is MAY-2015.
Q: Where is the place of origin?
A: This product is from China.
Q: What are the certifications?
A: The certifications are IE and ISO.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set.
