WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2516 (thick) |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Overall Size: | 565*301*340cm | Total Weight: | Approx. 22 Tons |
|---|---|---|---|
| Number Of Axis: | Standard Synchronized 16 Axis | Max. Bending Width: | 2500mm |
| Max. Bending Size: | 2500*1500mm | Min. Sheet Thickness: | 0.35mm |
| Noise: | Approx. 50dB | Power Horn Blank Holder: | Optional |
| Highlight: | 2500mm CNC Sheet Metal Folder,CNC Sheet Metal Folder 50dB,thick metal plate bender |
||

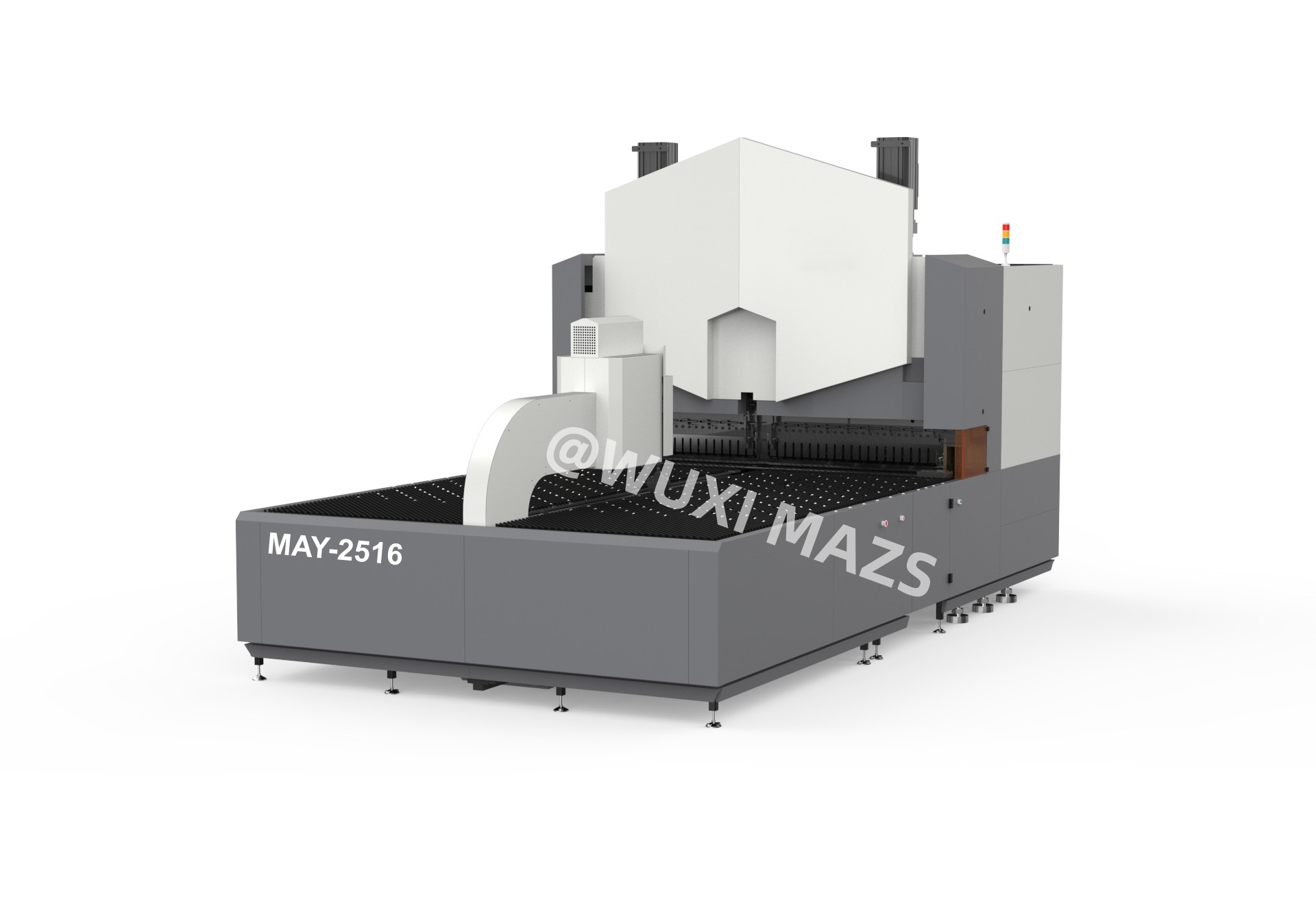

MAY-2516 intelligent thick plate panel bender bending machine added C-axis lifting function, the whole bending machine is designed and manufactured according to high-precision machine tool standards, the upper press tooling structure is upgraded, and the standard power hinge knife is equipped. This intelligent automatic bending machine adopts two movable brackets, which can flexibly realize the left and right software compensation. This series of bending machine has automatic borrowing, and C-axis rotation strengthening and other functions, which make its performance more superior, and a wider range of applications.
| MAY-2516 Technical parameters | |
| Feeding structure | Pressing arm |
| Max bending speed | 0.2 second/time |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm * W 1500mm |
| Max. Bending height | 170mm |
| Rated power | 380V |
| Motor power | 81KW |
| Average power | 2.9 KW |
| Machine size | L565cm * W301cm * H340cm |
| Total weight | Approx. 22 tons |
| User operating environment | Win7 or above system |
| Max. Bending width |
304Stainless steel 1.5mm Cold panel 2.0mm Aluminum plate 3.0mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | 140mm * 190mm |
| Double side forming min. Inner size | 140mm |
| Power hinge knife | Standard equipped |
| Axis | 16 |
*automatic reposition, oblique reposition
*Improved C axis rotation speed and accuracy
*fast release and installation type uppper pressing tool
*standard power horn blank holder
*Max. bending height 300mm (customized)
