WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2515 Aluminium |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Product Type: | MAY-2515 Aluminium | Rated Voltage: | 380v |
|---|---|---|---|
| Total Motor Power: | 79Kw | Average Power: | 2.9Kw |
| Max. Bending Thickness: | Aluminum Panel 2.0mm | Max. Bending Width: | 2500mm |
| Max. Bending Height: | 170mm | Minimum Panel Thickness: | 0.35mm |
| Highlight: | ISO9001 Edge Bending Machine,Edge Bending Machine 79Kw,79Kw aluminum sheet bender |
||

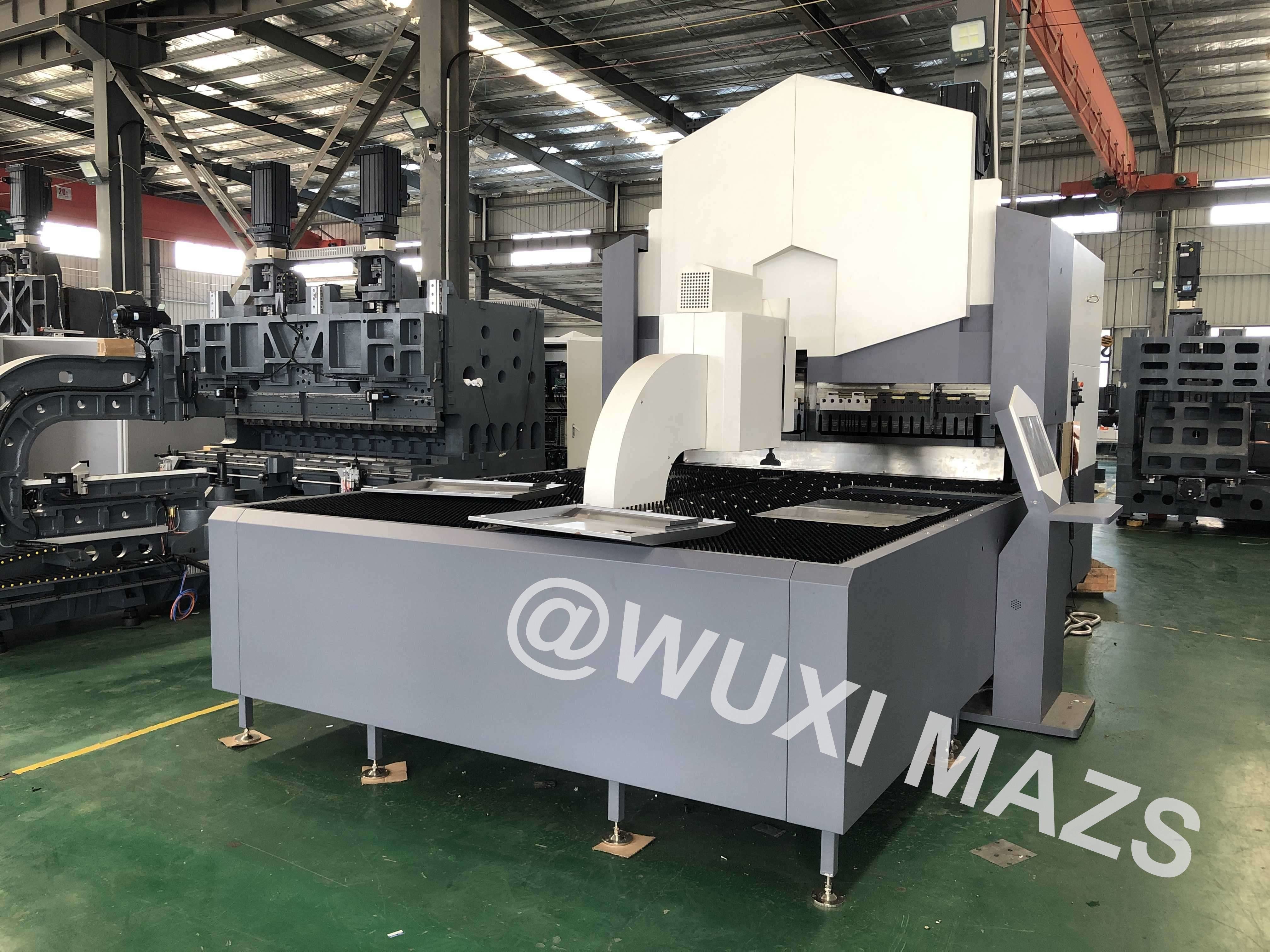

MAY-2015 Aluminium plate panel bender focuses on solving all kinds of complex sheet metal and bending problems in metal forming. Through the multi-axis concurrent linkage, the sheet metal bending can be completed automatically.
MAY-2015 aluminium plate metal sheet panel bender can be widely used in the field of steel cabinet housing, kitchenware, furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related metal forming fields.
Technical Parameters:
| MAY-2515 Technical parameters | |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max feeding speed | 90m/min |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm X W 1250mm |
Max. Bending height | 170mm |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Noise | About 50 dB |
| Machine size | L565cm X W300cm X H340cm |
| Total weight | About 19 tons |
| User operating environment | Win7 or above system |
| Max. Bending width | aluminum panel 3.0mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | About 140mmx190mm( excluding inverted folded side) |
| Double side forming min. Inner size | About 140mm |
| Bending angle | 0-180 degree |
| Axis | 15 |
1. After the Panel bender machine is checked and accepted, the quality guarantee period of the whole bending machine is one year.
2. Wuxi MAZS will provides life-long maintenance services for the products provided, and provides consultation and guidance related to the bending machine. Outside the warranty period, our company still provides extensive and preferential technical support and spare parts supply for the buyer. Our company will promptly notify the buyer of the software upgrade situation.
3. Wuxi MAZS has sufficient spare parts and accessories, which can provide technical services and spare parts services to the buyer in time to meet the needs of equipment maintenance.
Packaging and Shipping
The edge bending machine is packed in standard package which is suitable for sea transportation, and can be delivered to all over the world.
