WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1411 Edge bending machine |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 set per month |
| Product Name: | Edge Bending Machine | Equipped Axis: | Standard Synchronized 11 Axises |
|---|---|---|---|
| Plate Thickness: | 0.35mm To 1.6mm | Four Sides Forming, Minimum Inner Size: | 140 Mm * 190 Mm |
| Double Sides Forming Minimum Inner Size: | 140 Mm | Max. Bending Size: | 1400mm |
| Bending Height: | 170mm | Total Machine Weight: | About 10t |
| Highlight: | 0.35mm Edge Bending Machine,1.6mm Edge Bending Machine,sheet bending machine For Metal Sheet |
||

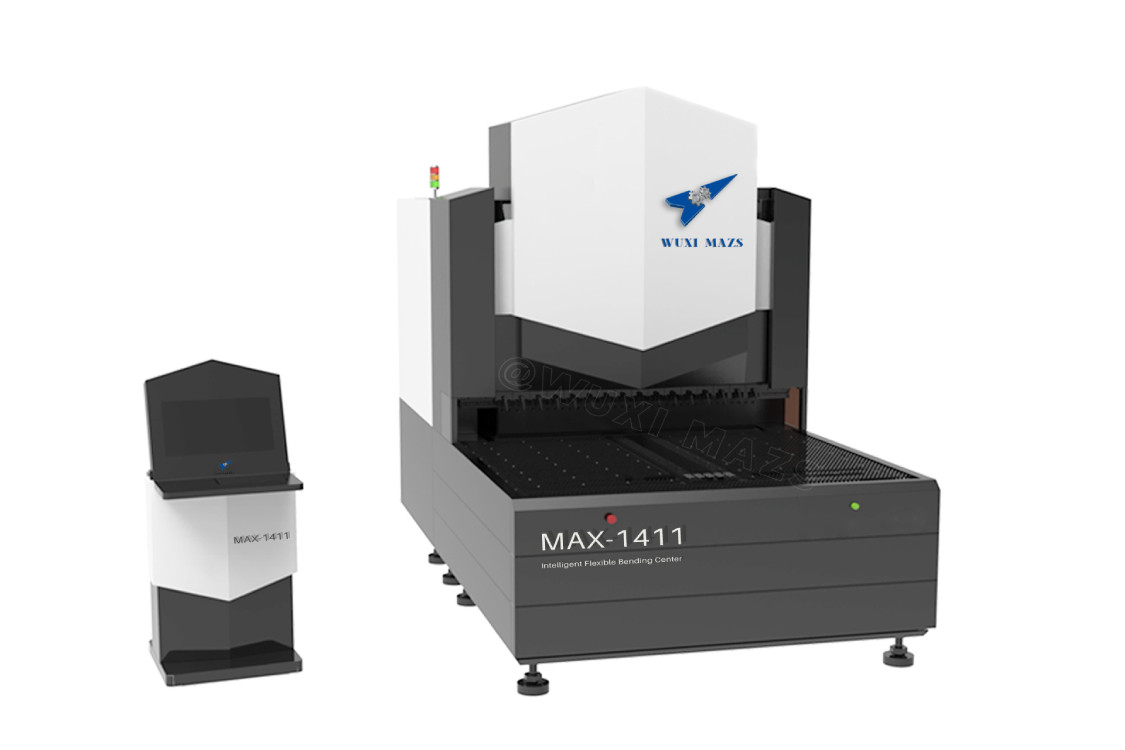

The MAX-1411 auto bender machine adopts the suction cup feeding method, designed to facilitate the handling and positioning of panels during the bending process. Here's how it works:
Panel Placement: The operator places the panel to be bent onto the worktable of the machine, ensuring that the panel surface is smooth and free from any holes or punches.
Suction Cup Activation: Once the panel is in position, the suction cup system is activated. The machine is equipped with one or more suction cups strategically placed to provide optimal suction and grip on the panel's surface.
Suction Cup Adhesion: The activated suction cup generates a vacuum that securely adheres to the smooth surface of the panel. This adhesion is strong enough to hold the panel firmly in place during the bending process.
Panel Movement: With the panel securely held by the suction cup, the machine's CNC control system initiates the necessary movements. This includes controlling the bending beam, back gauge, and other components as required for the desired bending operations.
Bending Process: As the machine executes the bending operations, the suction cup maintains a reliable grip on the panel. It prevents any unwanted movement or slippage, ensuring accurate and consistent bending results.
Panel Release: Once the bending process is completed, the suction cup's vacuum is released, allowing the operator to easily remove the bent panel from the worktable.
By utilizing the suction cup feeding method, the MAX-1411 auto bender machine optimizes panel handling and positioning. It eliminates the need for additional fixtures or clamps, streamlines the workflow, and enhances the overall efficiency of the bending process.
|
Description
|
Technical Specifications
|
|
Machine name
|
MAX-1411
|
|
Bending speed
|
0.2 second /time
|
|
Max. bending width
|
1400mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380v
|
|
Total motor power
|
34Kw
|
|
Average power
|
about 1.5Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
365*190*290cm
|
|
Total machine weight
|
about 10 t
|
|
Max. bending thickness
(thicker panel customized)
|
UST 515N/mm2 304 stainless steel 1.0mm
|
|
UST 410N/mm2 cold panel 1.2mm
|
|
|
UST 265N/mm2 aluminum panel 1.6mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*210mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
1400*1400mm
|
|
Axis QTY
|
Standard 11 axis
|
|
Hinge knife
|
common
|
Automatic bending machine packaging and transportation:
- Packaging: The CNC bending machines are safely packed and securely secured with polystyrene foam and other protective materials to provide protection from shock and vibration and prevent machine damage during transportation.
- Transportation: The CNC bending machines are usually transported by sea, and the actual transportation method depends on customer requirements and destinations.
