WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Type: | Automatic | Four Edge Minimum Inner Size: | 140*190mm |
|---|---|---|---|
| Frequency: | 50Hz | Max. Bending Thickness: | 3.0mm |
| Max. Bending Width: | 2000mm | Double Sides Forming Minimum Inner Size: | 140mm |
| Power: | Electric | Weight: | 18000kg |
| Highlight: | automatic steel bending machine 50Hz,automatic steel bending machine 18000kg,50Hz CNC Panel Bender |
||

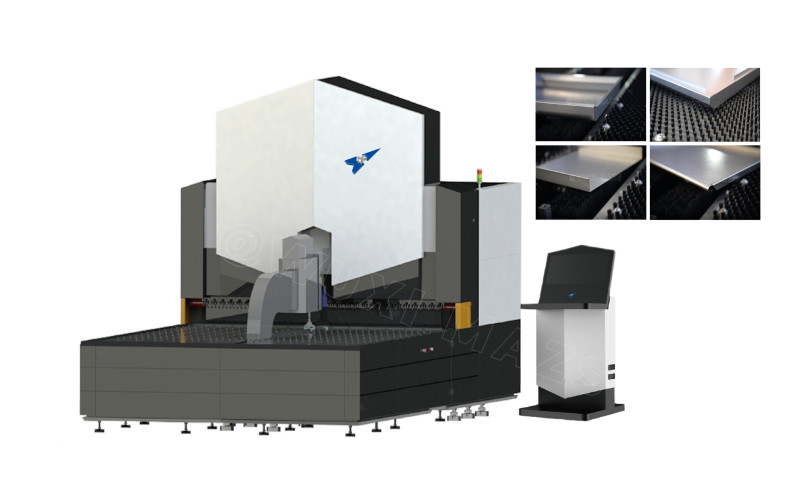

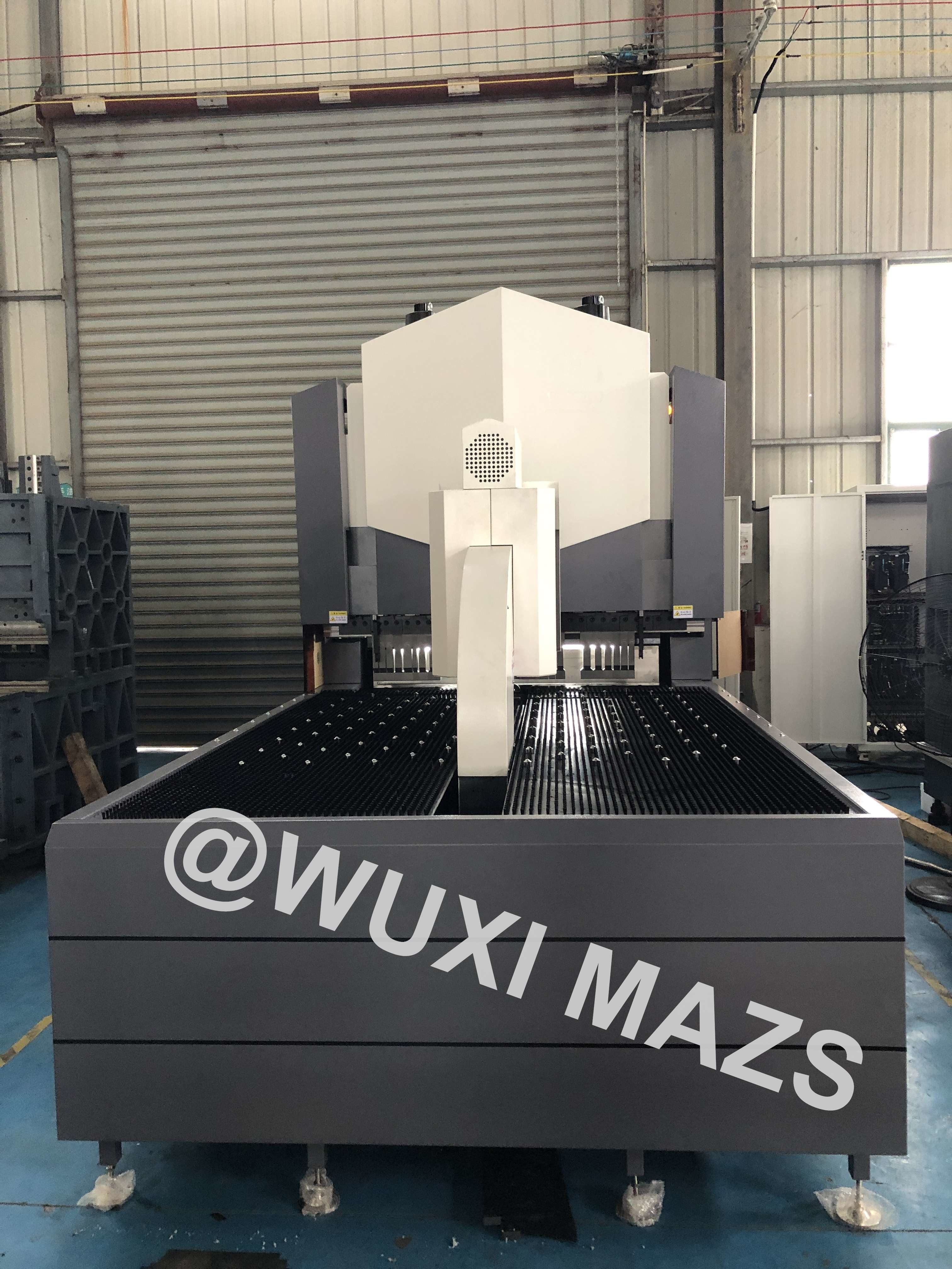

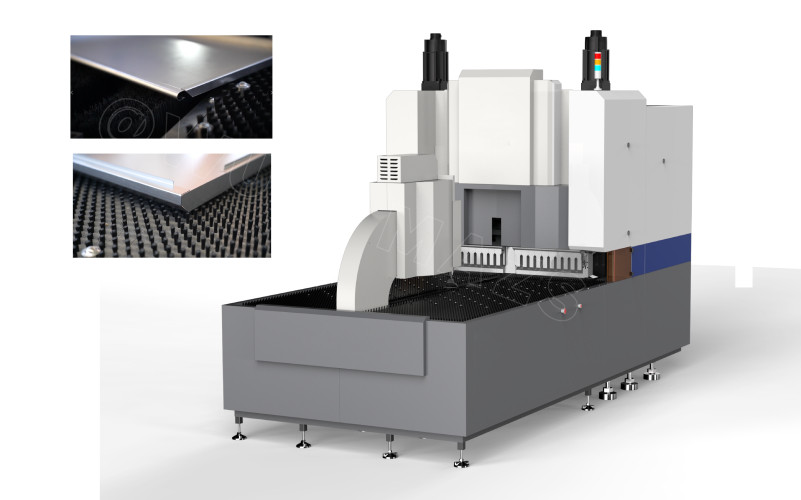

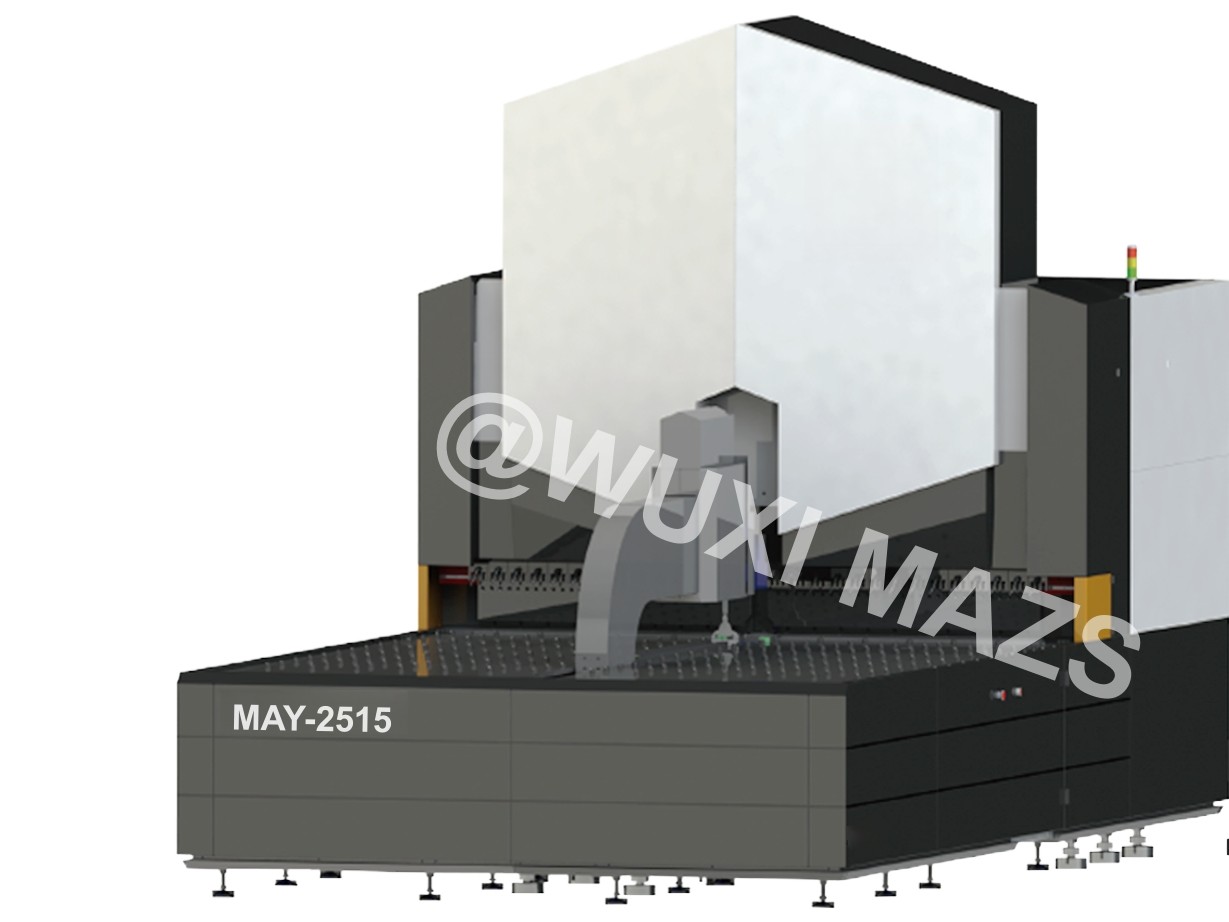

Automatic CNC Panel Bender Machine Pressing Feeding Type 180° Max Bending Angle Auto Bender
|
Item
|
MAY-2015
|
|
Max. bending speed
|
0 . 2 second/time
|
|
Max. bending width
|
2000mm
|
|
Max. bending height
|
170mm( 1400PC1)
|
|
300mm( 1400PC3)
|
|
|
Rated voltage
|
380v
|
|
Total motor power
|
77Kw
|
|
Average power
|
about 2. 6Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
510*265* 330cm
|
|
Total machine weight
|
about 1 8 t
|
|
Max. bending thickness
(thicker panel customizable)
|
UST 515N/ mm2 304 stainless steel 1 . 5 mm
|
|
UST 4 1 0 N/ mm2 cold panel 2 . 0 mm
|
|
|
UST 265N/ mm2 aluminum panel 3.0mm
|
|
|
Minimum panel thickness
|
0 . 35mm
|
|
Four sides forming minimum inner size
|
140* 190mm
|
|
Two sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
2000* 1500mm
|
|
Axis QTY
|
standard synchronized 15 axis
|
|
Power hinge knife
|
standard
|
Given its customizable nature, the machine is suitable for a wide-range of applications, such as fabrication of cabinets, kitchenware, furniture, ventilation systems, refrigeration systems, purifying mechanisms and elevators. All of these items require metal components, making the machine an ideal pick for manufacturing such items.
Whether you need cabinets (ranging from filing cabinets, tool cabinets, gas cabinets, electrical cabinets, water meter cabinets or communication cabinets) or kitchenware items (such as fridges, stoves or air conditioners), MAZS MAY-15 series can meet all your needs.
At XYZ, we are dedicated to providing the best quality service and support for our Auto Bender Machine. Our team of engineers are committed to resolving any technical issues quickly and efficiently, and we stand behind our products with a comprehensive warranty. Here are some of the services we provide:
We are also committed to providing ongoing education and training to help our customers get the most out of their Auto Bender Machines. We offer a range of classes and tutorials, both online and in-person, to ensure our customers are fully up-to-date with the latest features and functionality.
