WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2515 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | Auto Bender Machine | Feeding Method: | Pressing Arm |
|---|---|---|---|
| Waterproof Rating: | IPX-8 | Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel |
| Certification: | ISO 9001:2000, ISO 9001:2008, CE | Max. Bending Speed: | 0.2 Second/time |
| Max. Bending Thickness: | 3.0mm | Total Machine Weight: | About 23t |
| Highlight: | Four Edge automatic sheet metal bending machine,23t automatic sheet metal bending machine,sheet metal cnc bending machine 140 X 190mm |
||

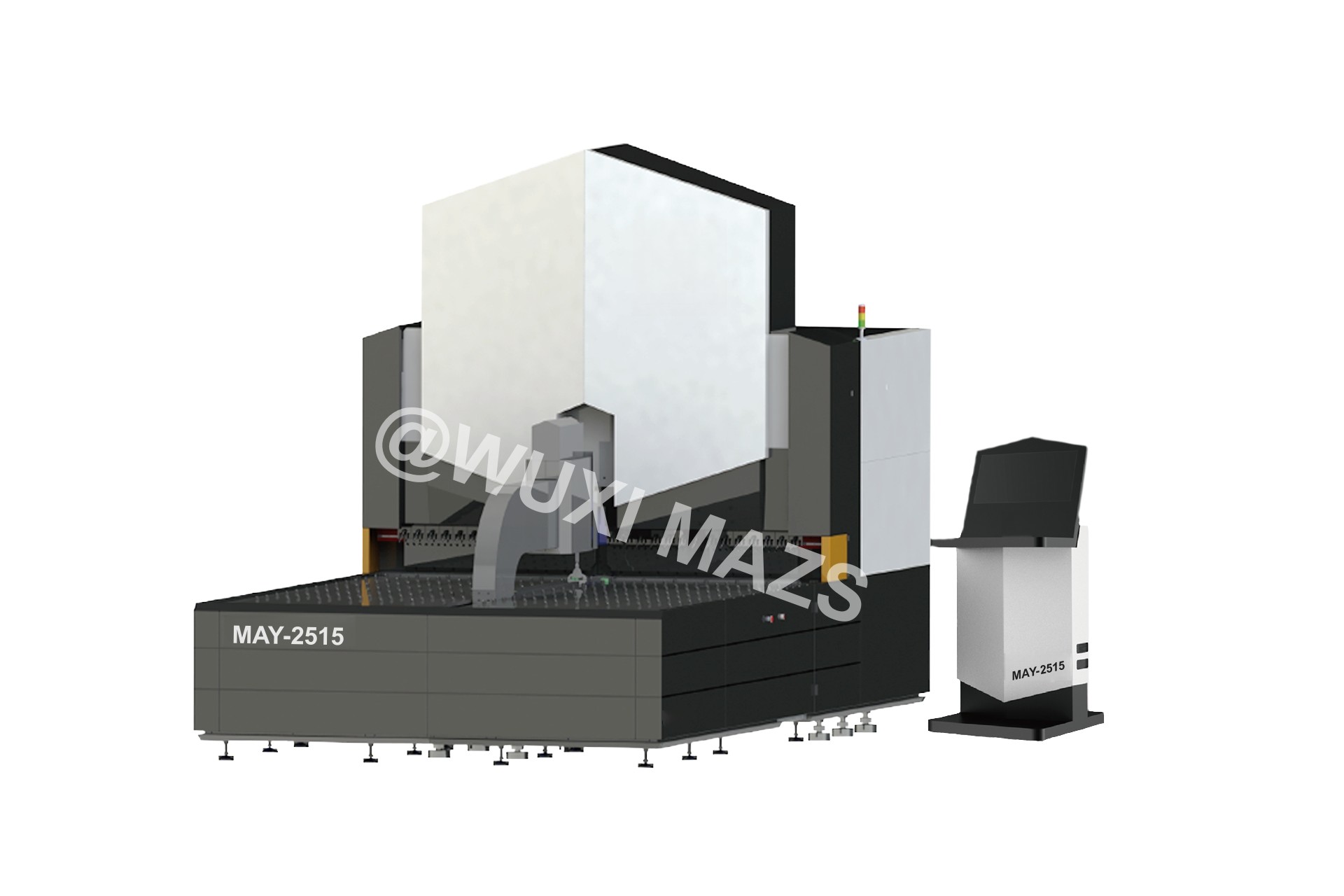

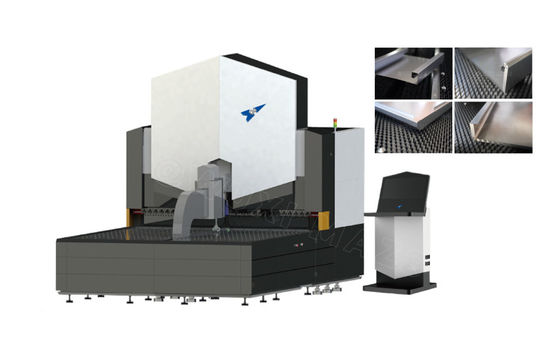

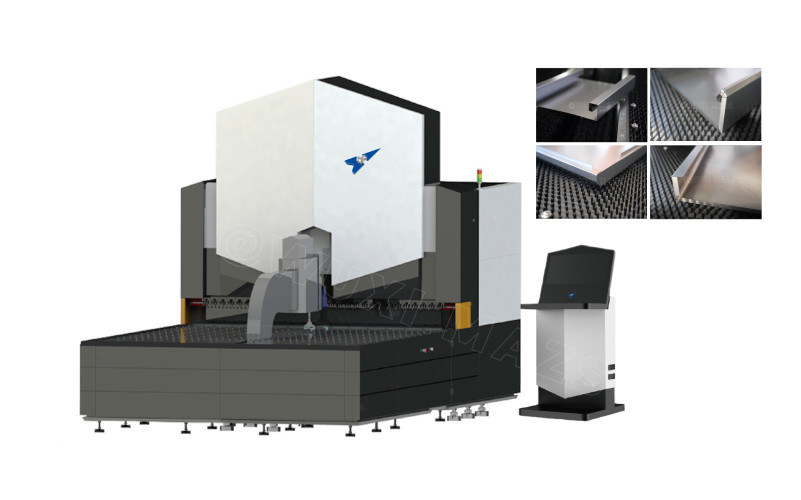

Four Edge Minimum Inner Size 140*190mm Automatic Bending Center Max. Bending Height 300mm (Customized) Weight 23000kg
| Items | Parameters for MAY-2515 Panel Bending Center |
| Feeding method | Pressing arm |
| Work table structure | Brush |
| System minimum accuracy | 0.001mm |
| Positioning method | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 2500mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 79Kw |
| Average power | about 2.9Kw |
| Noise | 50dB |
| Machine size | 565* 300* 340cm |
| Total machine weight | about 23t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 2.0mm |
| UST 410N/mm2 cold panel 3.0mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 160* 210mm |
| Double sides forming minimum inner size | 160mm |
| Max. bending size | 2500*1500mm |
| Axis qty. | standard synchronized 15 axis |
| Power hinge knife | standard |
This high-performance machine is specifically designed to increase productivity and reduce labor costs in sheet metal fabrication.
It can be widely applied in a wide variety of industries, such as cabinets, kitchenware, furniture, ventilation, refrigeration, purification, door industry, decoration and elevators. This includes file cabinets, tool cabinets, outer guard covers, electrical cabinets, communication cabinets, gas cabinets, and water meter cabinets. It is also suitable for household appliances including refrigerators, air conditioning, and stoves.
We provide technical support and service for our Auto Bender Machine to ensure that our customers get the most out of their purchase. Our team of experienced engineers and technicians are available to answer any questions you may have about the product. We can also provide advice on installation, maintenance, and troubleshooting.
If you have an issue with your Auto Bender Machine, we can provide fast and reliable technical support. Our team is available to help you with any problems you may have with the machine, including diagnosing the issue and providing solutions to resolve it. We also offer complimentary software updates to ensure that your machine is always running optimally.
If you need to replace parts on your Auto Bender Machine, our team can provide you with the necessary components. We also offer spare parts for the machine in case of any unforeseen problems. Additionally, we offer a comprehensive warranty for our products so you can be sure that you are getting the most out of your purchase.
