WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**15A |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Model: | MAY-**15A | Axis QTY: | Standard Synchronized 15 Axis |
|---|---|---|---|
| Max Bending Height: | 170mm | Noise: | Approx. 50dB |
| Power Hinge Knife: | Standard | Surface Treatment: | Painting |
| Two Sides Forming Minimum Inner Size: | 160mm | Warranty: | 1 Year |
| Highlight: | Painting automatic sheet metal bending machine,automatic sheet metal bending machine 160 X 210mm,cnc sheet metal folding machine |
||

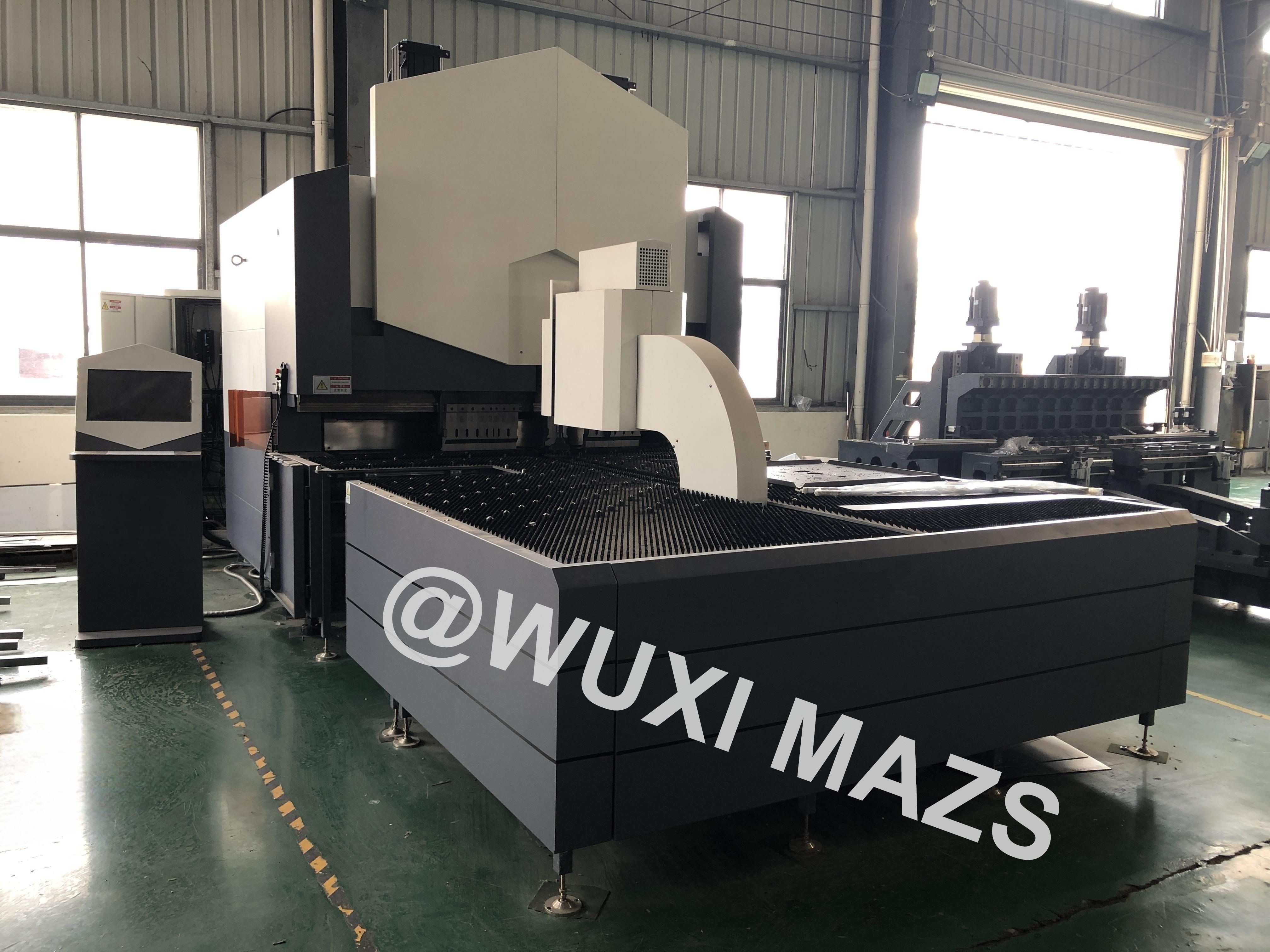

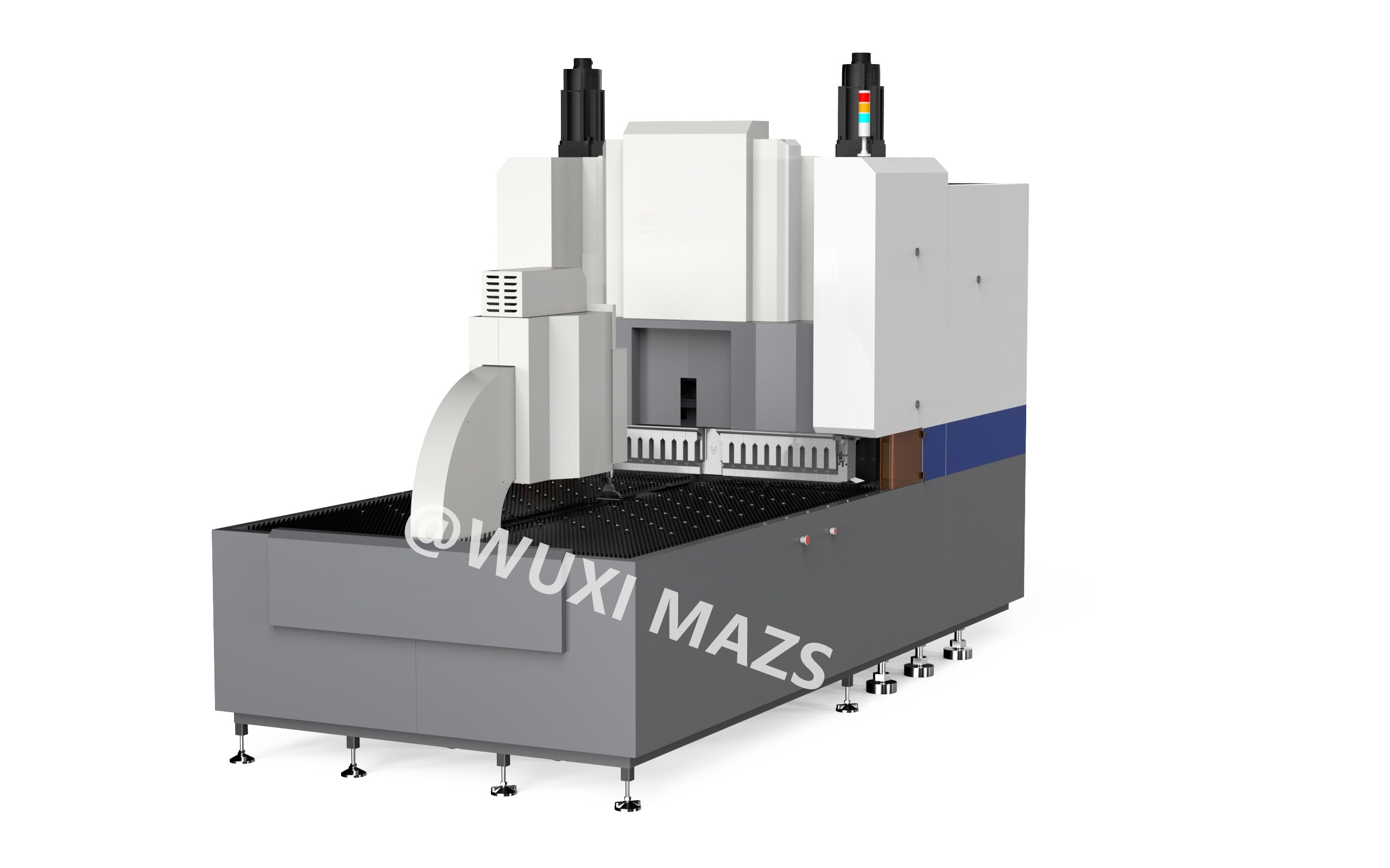

Painting Metal Sheet Bending Machine with 160*210mm Four Edge Minimum Inner Size
Metal Sheet Bending Machine is a CNC bending machine that can be used to bend metal sheets. It is equipped with a powerful 77KW motor and can bend metal sheets up to 170mm in height. It is designed with a size of 5100*2650*3300mm and a weight of 18000KG. It has a precision of control and can produce high-quality metal sheet bending products. It is suitable for a wide range of applications such as automotive, aerospace, construction, and manufacturing industries. This Metal Sheet Bending Machine is a reliable and efficient tool for metal sheet bending and is the ideal choice for metal sheet bending projects.
Description |
Technical Parameters |
|---|---|
|
Model |
MAY-**15A |
|
Axis Qty. |
Standard Synchronized 15 Axis |
|
Max. Bending Speed |
0.2 Set/time |
|
Minimum Panel Thickness |
0.35mm |
|
Four edge minimum inner size |
160*210mm |
|
Surface Treatment |
Painting |
|
Max. Bending Thickness |
304 Stainless Steel 2.0mm; Cold Panel 3.0mm |
|
Machine Size |
5100*2650*3300mm |
|
Motor Power |
77KW |
|
Two sides forming minimum inner size |
160mm |
|
Type |
Automatic sheet metal bending center, CNC sheet metal folding machine, Computer controlled bending center |
Metal Sheet Bending Machine Packaging and Shipping:
a. The machine will be securely packaged and shipped in a wooden crate, to protect the machine from any potential damage during transit.
b. It will also have a waterproof covering to protect the machine from any moisture or other elements.
c. Additionally, the crate will be securely strapped down to ensure that the machine can not move during transit.
