WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**18 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |

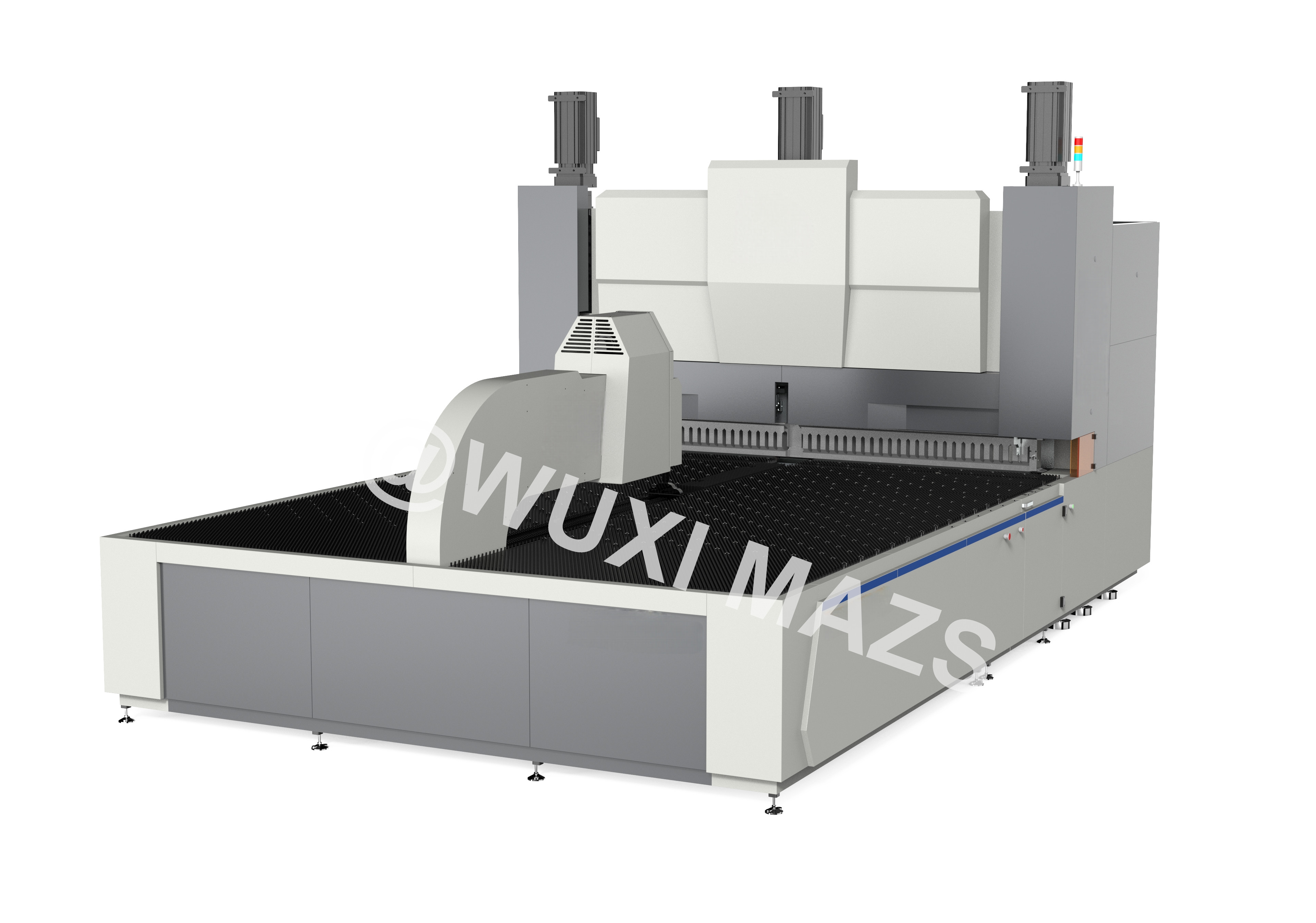

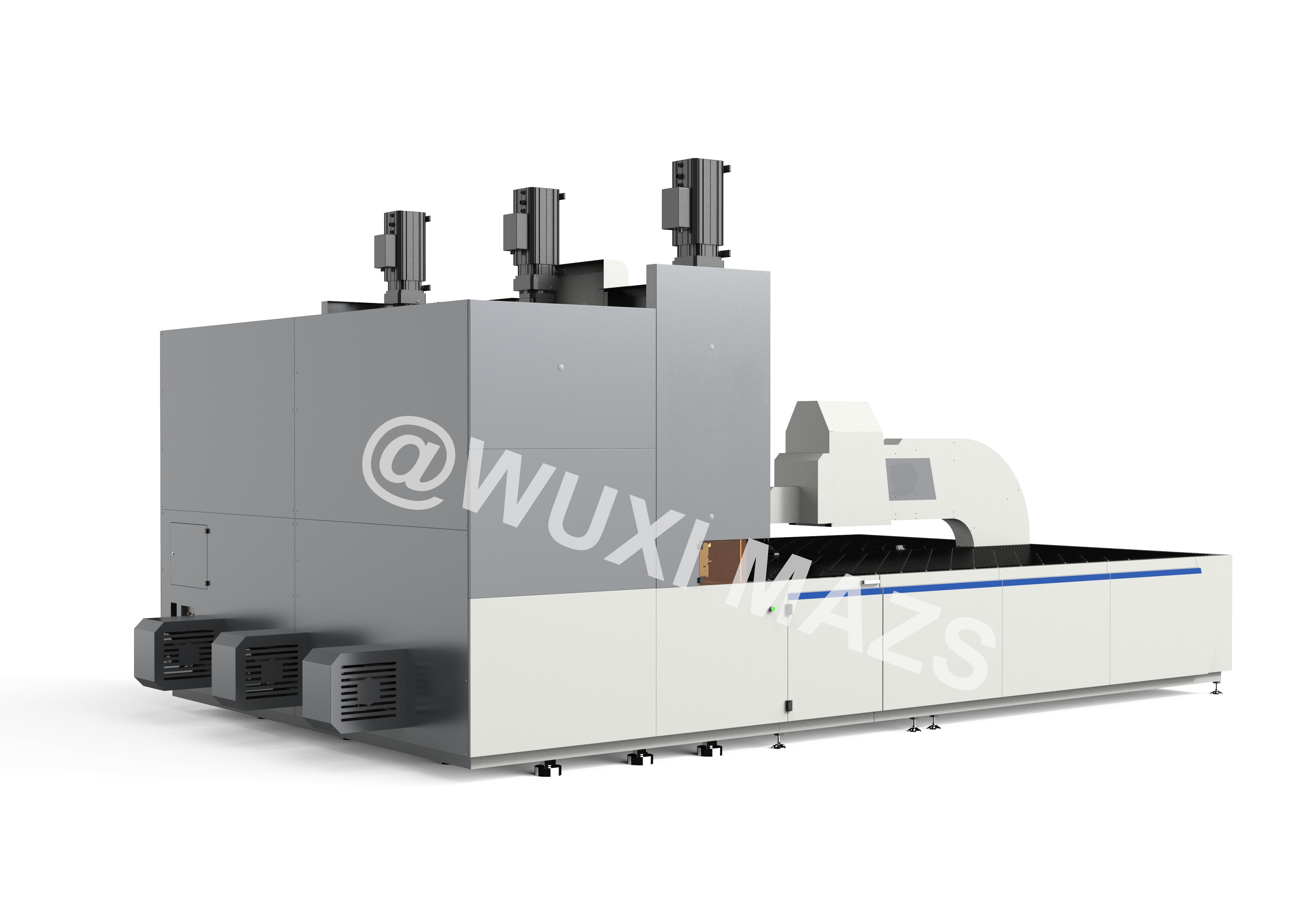

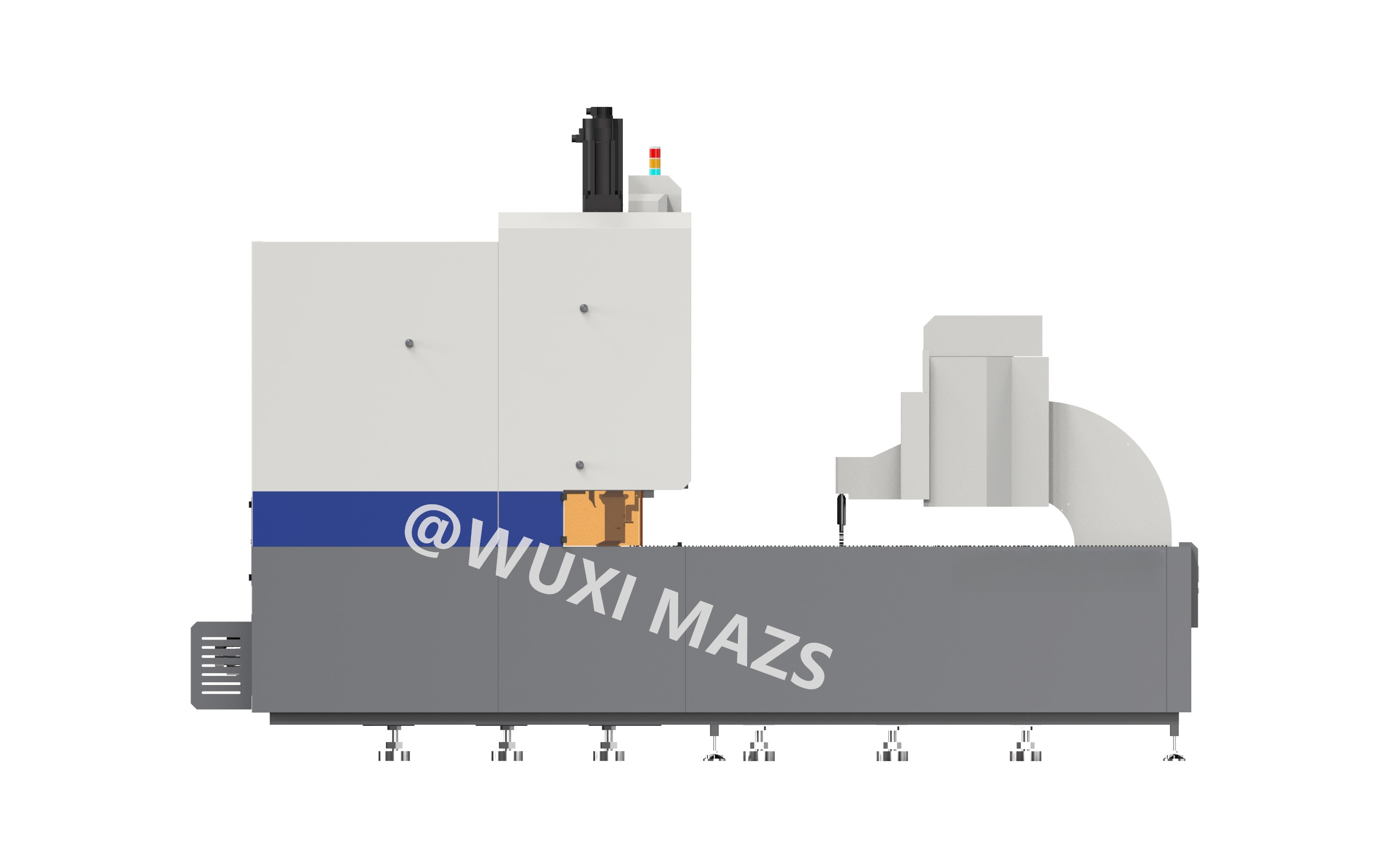

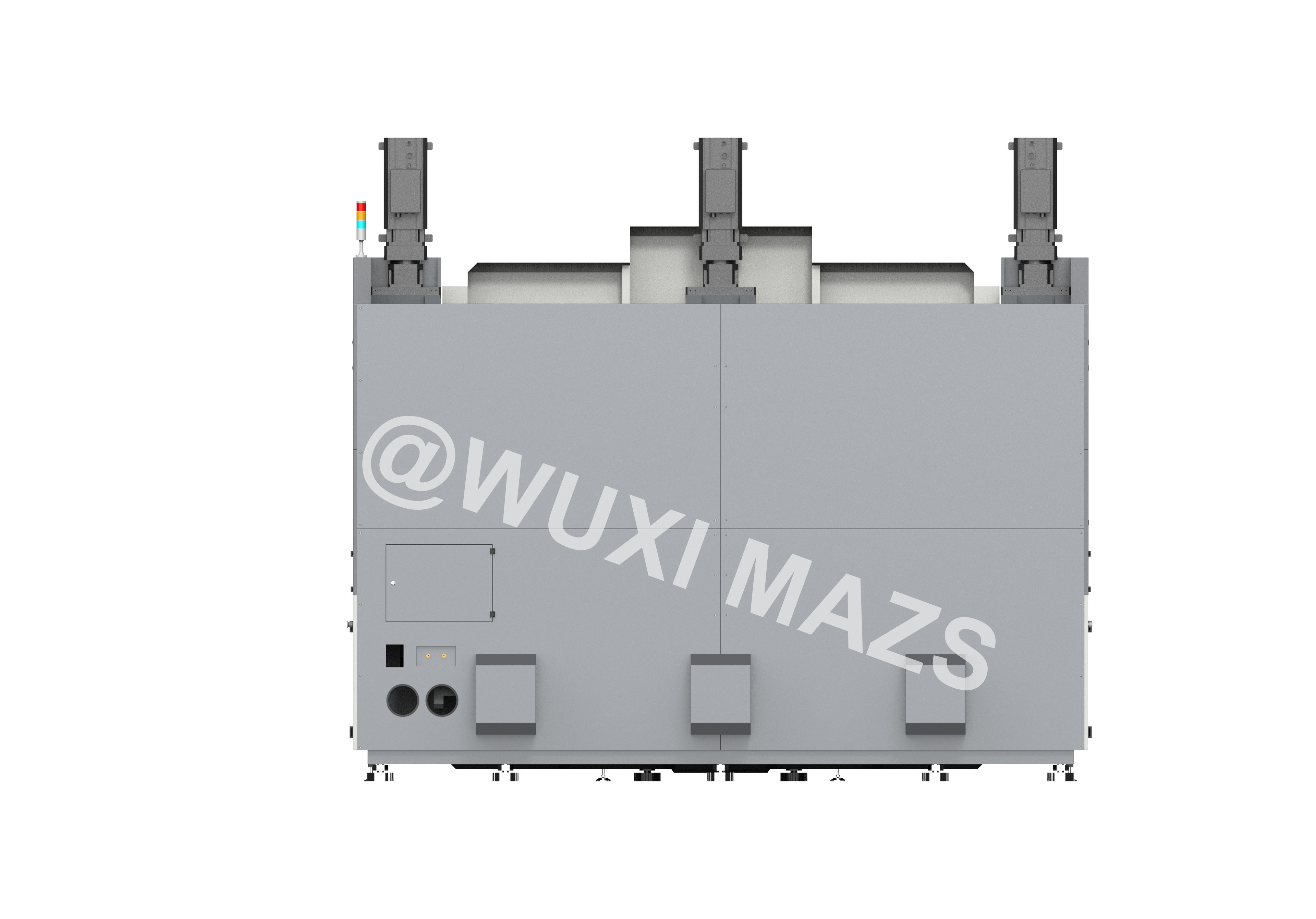

| Product Name: | CNC Bending Machine | Panel Type: | Steel, Aluminum, Carbon Steel Plate, Etc. |
|---|---|---|---|
| Axis Qty.: | Standard Synchronized 18 Axis | Feeding Mode: | Pressing Arm |
| Four Edge Minimum Inner Size: | 140*190MM | Double Sides Forming Minimum Inner Size: | 140mm |
| Max. Working Speed: | 0.2 Second/time | Power Hinge Knife: | Standard |
| Highlight: | 140 X 190MM cnc sheet metal bender,0.2 second/time cnc sheet metal bender,cnc steel bending machine 18 Axis |
||
| Items | Parameters for MAY-2518 Panel Bending Center |
| Feeding method | Pressing arm |
| Positioning method | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 2500mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 244Kw |
| Average power | about 5.8Kw |
| Noise | 50dB |
| Machine size | 629*300*345cm |
| Total machine weight | about 19t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 1.5mm |
|
UST 410N/mm2 cold panel 2.0mm |
|
|
UST 265N/mm2 aluminum panel 3.0mm |
|
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140*190mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 2500*1500mm |
| Axis qty. | standard synchronized 18 axis |
| Power hinge knife | standard |
We are dedicated to providing comprehensive and reliable technical support and service for CNC Bending Machine. Our experienced engineers and technicians are available to provide customized solutions according to your specific needs. We provide the following services:
- On-site installation and commissioning
- Regular maintenance
- Repair and troubleshooting
- Technical advice and consultation
- Spare parts supply
We offer our services in a timely and cost-effective manner, ensuring that your CNC Bending Machine is always running at peak performance. Contact us today for more information.
Q1: What is the brand name of the CNC Bending Machine?
A1: The brand name of the CNC Bending Machine is MAZS.
Q2: What is the model number of the CNC Bending Machine?
A2: The model number of the CNC Bending Machine is MAY-**18.
Q3: Where is the CNC Bending Machine from?
A3: The CNC Bending Machine is from China.
Q4: What is the packaging of the CNC Bending Machine?
A4: The packaging of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q5: What is the delivery time of the CNC Bending Machine?
A5: The delivery time of the CNC Bending Machine is 60 days to 120 days.
