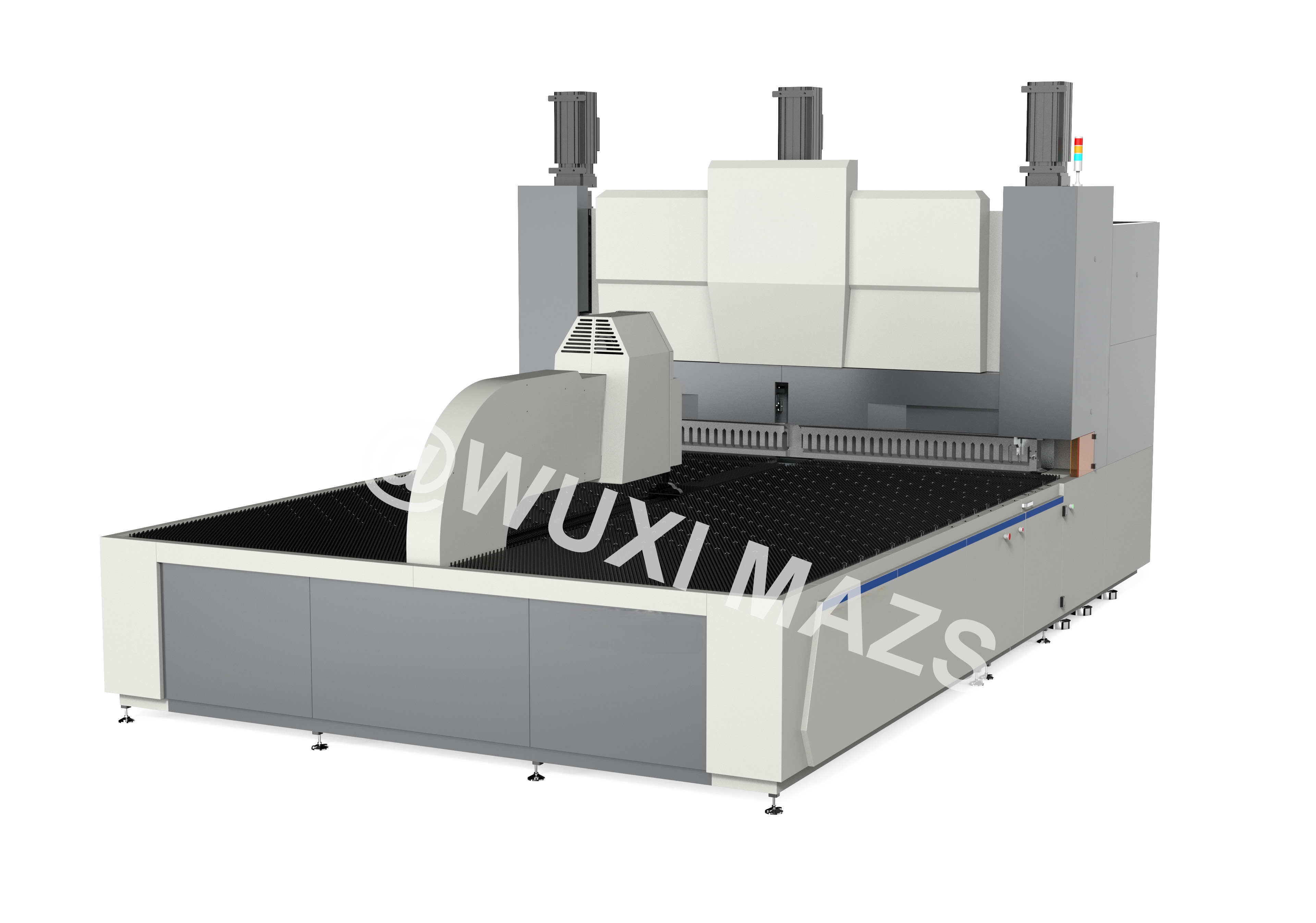

5.8KW High Speed Sheet Metal Cnc Bending Machine Precise Pressing Angle And Size

MAY-2518 High speed CNC sheet metal folding machine precise pressing angle and size





^{Brief Introduction:}



^{The CNC sheet metal folding machine, also known as CNC bending machine, is a highly automated and precision-driven machine used to bend and fold sheet metal into various shapes and angles.}

^{Equipped with sensors, actuators and software systems, these machines achieve fully automatic control and features such as adaptive bending algorithms, real-time monitoring and programming interfaces that simplify the production process, increasing their productivity, bending accuracy, and ability to handle complex shapes, resulting in cost savings and faster production cycles, revolutionizing the sheet metal processing industry.}



Technical Parameters:

Product name	CNC Sheet metal folding machine
Fast bending speed	0.2second /time
Max. bending width	2500mm
Max. bending height	170mm
Rated voltage	380v
Total motor power	244Kw
Average power	about 5.8Kw
Noise	about 50dB
Machine size	629*300*345cm
Total machine weight	about 19t
Max. bending thickness (thicker panel customized)	UST 515N/mm2 304 stainless steel 1.5mm
	UST 410N/mm2 cold panel 2.0mm
	UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness	0.35mm
Four sides forming minimum inner size	140*190mm
Double sides forming minimum inner size	140mm
Max. bending size	2500*1500mm
Axis QTY	standard synchronized 18 axis
Power hinge knife	standard



Features:

• ^{The bending of all workpieces can be completed through a complete set of tools.}
• ^{The interactive area of the tools of the panel bender on the surface of the metal plate is very small.}
• ^{There are few scratches on the surface of the workpiece produced in this way.}
• ^{The tool wear of the CNC sheet metal folding machine is also very small because the friction between the tool and the metal surface is small.}
• ^{The whole process of the CNC sheet metal folding machine can be carried out automatically, which saves human resources.}
• ^{The bending angle change of the CNC sheet metal folding machine is formed by the movement of the upper and lower blades.}
• ^{The CNC sheet metal folding machine has an automatic tool changer, which can quickly change tools to adjust the bending angle.}



Product examples:

^{MAZS intelligent panel bender adopts universal bending mold, cost-saving and better efficiency . It could be used for various types of panel shape.}







Application:

^{The automatic intelligent CNC bending machine mainly solves the forming and bending problems of various complex sheet materials in sheet metal forming. Through multi-axis linkage, the equipment automatically completes the sheet metal folding work, which solves the dependence on mold and manual from a technical point of view, effectively improves the production efficiency and reduces the production cost. This set of bending centers can easily achieve curved, circular arc, crushed edge, loop shape, closed shape and other complex sheet metal bending requirements.}

^{This automatic intelligent bending center can be widely used in steel cabinet shell (eg. file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...), kitchenware (refrigerator, air conditioner, stove...), metal forming problems in furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related fields.}

^{Wuxi MAZS can produce various models with bend sizes of 1400mm, 2000mm and 2500mm.}



Production Capacity:

^{Wuxi MAZS Machinery Science & Technology Co., Ltd., a high-tech enterprise, is mainly engaged in the R&D, production and sales of intelligent flexible bending centers, self-propelled integrated robotic arms, multi-axis synchronized intelligent numerical control systems , and cloud operation and maintenance management platforms.}



^{The company has famous brand gantry boring and milling center, more than 10 sets of horizontal machining center, vertical machining center, large horizontal boring and milling machine, more than 20 sets of FANUC high-precision slow-feeding machine tools, and Hangzhou grinding machine and many other processing equipment.}











Delivery and Packing:

^{Automatic bending machine packaging and transportation:}

• ^{Packaging: The CNC bending machines are safely packed and securely secured with polystyrene foam and other protective materials to provide protection from shock and vibration and prevent machine damage during transportation.}
• ^{Transportation: The CNC bending machines are usually transported by sea, and the actual transportation method} depends on customer requirements and destinations.

​



Support and Services:

^{Our Automatic Sheet Metal Panel Bender offers comprehensive technical support and service. We provide efficient, reliable and quality services to our customers. Our technical support team is available 24/7 and provides:}

• ^{Troubleshooting assistance}
• ^{Installation and setup guidance}
• ^{Software and hardware updates}
• ^{Product maintenance and repair}
• ^{User manual and documentation}
• ^{FAQs and support forums}
• ^{Live chat and telephone support}

^​

FAQ:

^{Q1. What's your main product? What is your main foreign market?}

^{A: Our main products are intelligent automatic CNC panel bender, bending machine. Our main foreign markets are Asia, Middle East, North America, Europe, and Africa.}

^{Q2. What are the advantages of your machines? And how can I believe the quality of your product?}

^{A: The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. Each machine will be tested as qualified before delivery. So the quality of our product is stable and reliable.}

^{Q3. Are you able to update the production process Information in time after placing our order?}

^{A: After confirming your order, we would keep you updated of production details of emails and photos.}

^{Q4. Payment terms?}

^{A: Usually we prefer T/T, L/C, and about other payment terms could be discussed.}

^{Q5. Are you provide product metal parts and provide us technical guidance?}

^{A: Wearing parts, Disassembly tool are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.}

^{Q6. How long is your warranty?}

^{A: 1 years free warranty, life-long maintenance.}

^{Q7. Do you accept customer Logo and customized?}

^{A: We accept kinds of customized, including logo.}





If you want to know more about the product, please contact the after-sales staff, we have a professional team to serve you wholeheartedly.
