WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2516 (thick) |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Overall Size: | 565*301*340cm | Total Weight: | Approx. 22 Tons |
|---|---|---|---|
| Number Of Axis: | Standard Synchronized 16 Axis | Max. Bending Width: | 2500mm |
| Max. Bending Size: | 2500*1500mm | Min. Sheet Thickness: | 0.35mm |
| Noise: | Approx. 50dB | Power Horn Blank Holder: | Optional |
| Highlight: | MAZS Thick Automatic Panel Bender,MAZS Automatic Panel Bender 2500 x 1500mm,MAZS cnc metal bender 0.35mm |
||

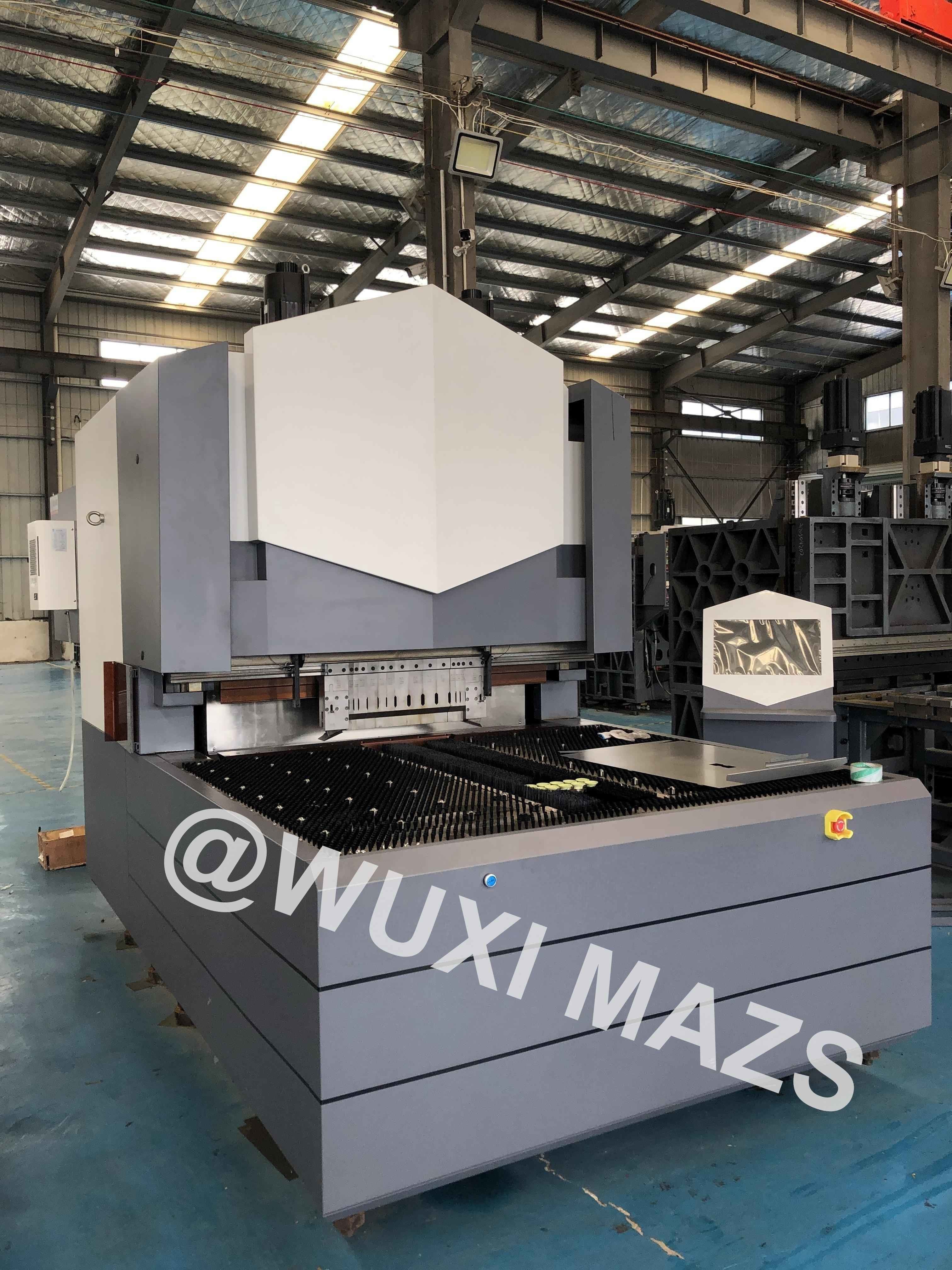

MAY-2516 Automatic panel bender focuses on solving all kinds of complex sheet metal and bending problems in metal forming. With the multi-axis concurrent linkage, the sheet metal bending can be completed automatically, and the dependence on the mold and labor can be solved from the technical point of view, so as to effectively improve the production efficiency and reduce the production cost. This series automatic panel bender, 16 , using the pressure arm loading method, the whole machine is designed and produced in accordance with the standard of high-precision machine tools. This type of automatic panel bender can easily realize the bending requirements of arc, dead edge, return type, closed type and other complex types of sheet metal.
Technical Parameters:
| MAY-2516 Technical parameters | |
| Feeding structure | Pressing arm |
| Max bending speed | 0.2 second/time |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm * W 1500mm |
| Max. Bending height | 170mm |
| Rated power | 380V |
| Motor power | 244KW |
| Average power | 5.8KW |
| Machine size | L565cm * W301cm * H340cm |
| Total weight | Approx. 22 tons |
| User operating environment | Win7 or above system |
| Max. Bending width |
304Stainless steel 1.5mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | 140mm * 190mm |
| Double side forming min. Inner size | 140mm |
| Power hinge knife | Standard equipped |
| Axis | 16 |
The automatic panel bender bending center mainly solves the forming and bending problems of various complex sheet materials in sheet metal forming. Through multi-axis linkage, the equipment automatically completes the sheet metal folding work, which solves the dependence on mold and manual from a technical point of view, effectively improves the production efficiency and reduces the production cost. This set of bending centers can easily achieve curved, circular arc, crushed edge, loop shape, closed shape and other complex sheet metal bending requirements.
This automatic intelligent bending center can be widely used in steel cabinet shell (eg. file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...), kitchenware (refrigerator, air conditioner, stove...), metal forming problems in furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related fields.
Wuxi MAZS can produce various models with bend sizes of 1400mm, 2000mm and 2500mm.
Welcome to consult Wuxi MAZS Machinery Group on intelligent CNC system bending Center.
We provide technical support and service for Automatic Sheet Metal Panel Bender.
Our technical support and service includes:
