WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2015 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Product Name: | Automatic Panel Bender | Max. Bending Speed: | 0.2 Second/time |
|---|---|---|---|
| Max. Bending Width: | 2500mm | Max. Bending Height: | 170mm |
| Rated Voltage: | 380v | Total Motor Power: | 79Kw |
| Average Power: | About 2.9Kw | Minimum Panel Thickness: | 0 . 35mm |
| Highlight: | Double Lift Automatic Panel Bender,Automatic Panel Bender with Y Axis,Automatic Positioning metal plate bender |
||

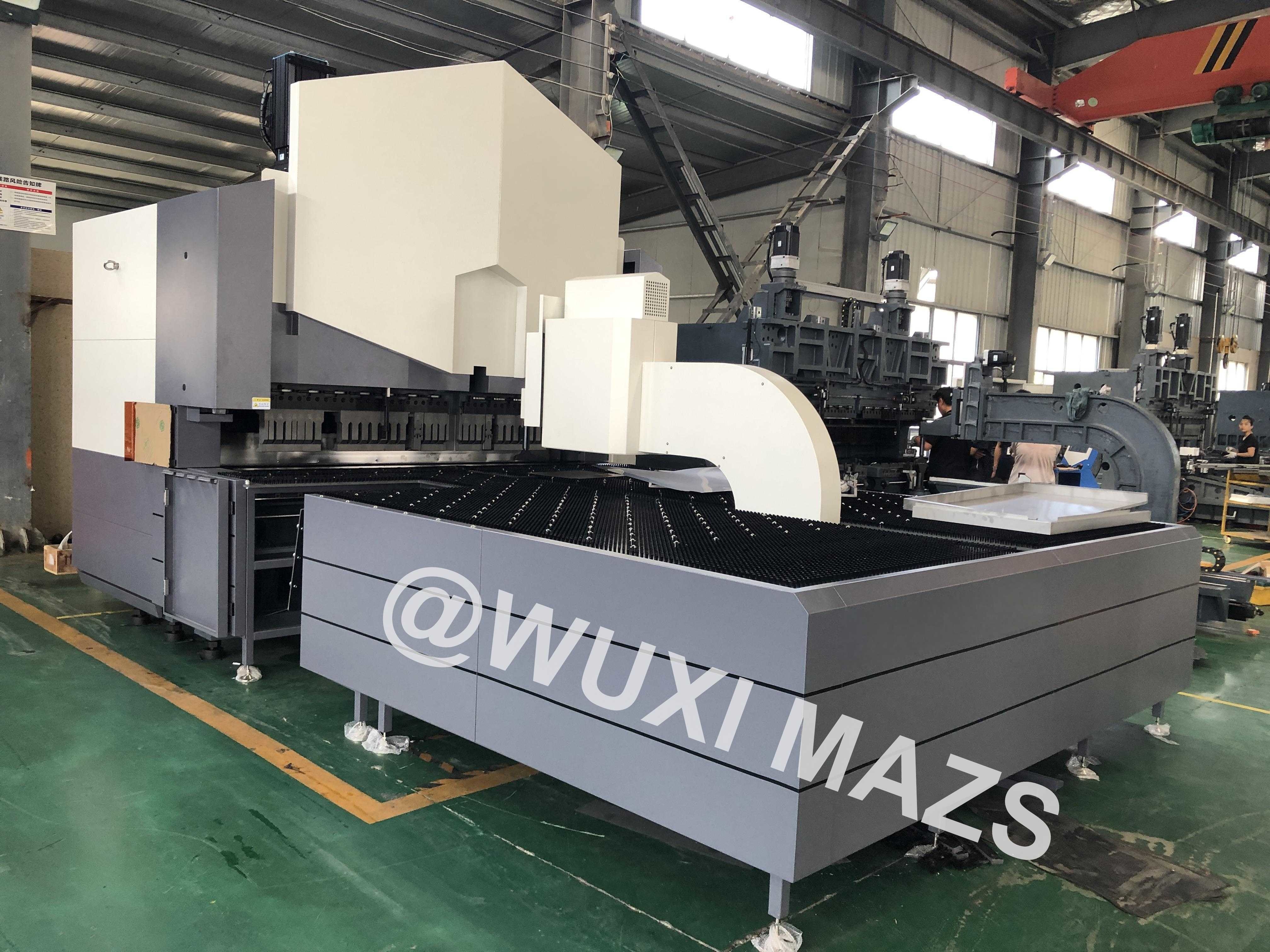

Standard CNC MAY-2015 Automatic Panel Bender Bending Machine with Y Axis Double Lift Automatic Positioning

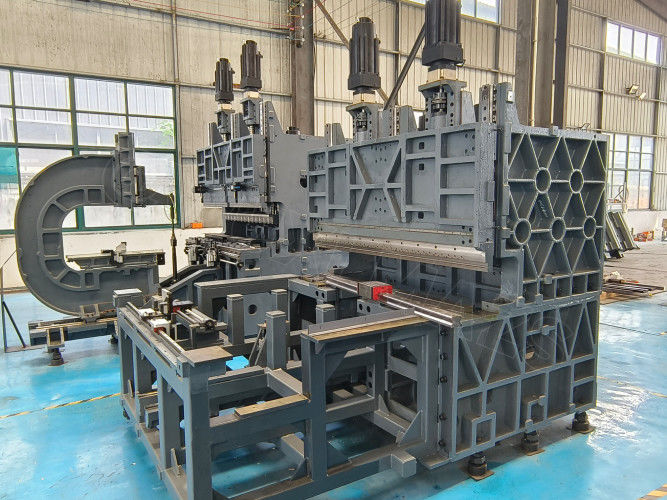

The MAY-2015 automatic panel bender is composed of clamping system, bending tool, bending mechanism, control system, etc. Each part is controlled by computer software to coordinate and unify the work to achieve accurate and automatic operation.
Our panel bending machines are often equipped with advanced features and computer numerical control (CNC) systems that allow operators to program and control the bending process with high precision. The CNC system can store and recall multiple bending programs, allowing efficient production of various parts without manual adjustments.
- Comprehensive bending speed；
- Standard power hinge knife；
- Need not manual re-tooling set up when changing workpiece;
- More convenient and more effecient;
- With standard assistant bending tool, can do the partial bending;
- Sequence arrangement type upper pressing tools,higher re-tooling effeciency (exclusive patent right).
| Items | Parameters for MAY-2015 Panel Bending Center |
| Feeding method | Pressing arm |
| Positioning method | Y axis double lift automatic positioning tools |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 2000mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 77Kw |
| Average power | about 2.5Kw |
| Noise | 50dB |

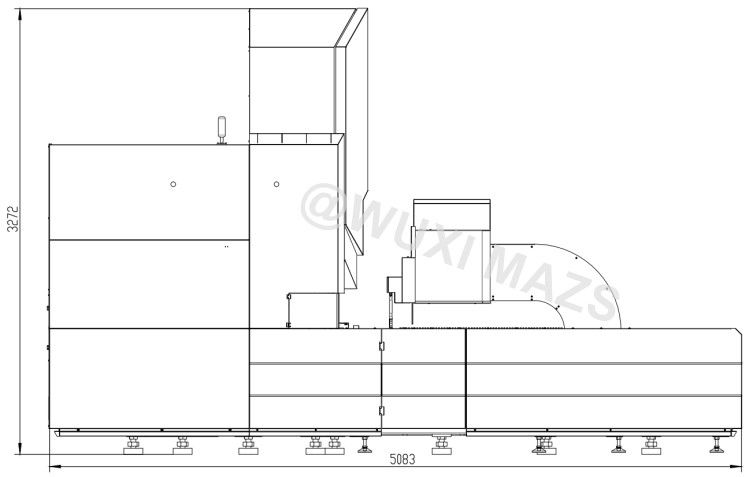

| Machine size | 510*265* 330cm |
| Total machine weight | about 18t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 2.0mm |
| UST 410N/mm2 cold panel 3.0mm | |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 160* 210mm |
| Double sides forming minimum inner size | 160mm |
| Max. bending size | 2000*1500mm |
| Axis qty. | standard synchronized 15 axis |
| Power hinge knife | standard |
* Packaged in a cardboard box, surrounded by foam packaging material to ensure protection against shocks and vibrations during transport.
* The box will be sealed with tape and placed on the pallet for shipping.
* The pallet will be secured with straps to prevent movement of the package during transit.
* Additional packaging such as bubble wrap and/or foam will be used to protect the metal sheet bending machine and ensure that it arrives in perfect condition.
