WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1409 robot arm type panel bender |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Control System: | CNC System. | Max. Bending Length: | 1400mm |
|---|---|---|---|
| Max. Bending Width: | 1400mm | Max. Bending Height: | 170mm |
| Max. Bending Speed: | 0.2 Second/time | Min. Bending Thickness: | 0.35mm |
| Max. Bending Size: | 1400mm*1400mm | Feeding Structure: | Suction Cup And Robot Arms |
| Robot Arm Type: | Panel Bender | Machine Weight: | Approx. 10 Tons |
| Highlight: | 1400mm Automatic Sheet Bending Machine,Automatic Sheet Bending Machine,sheet metal folder 90m/min |
||

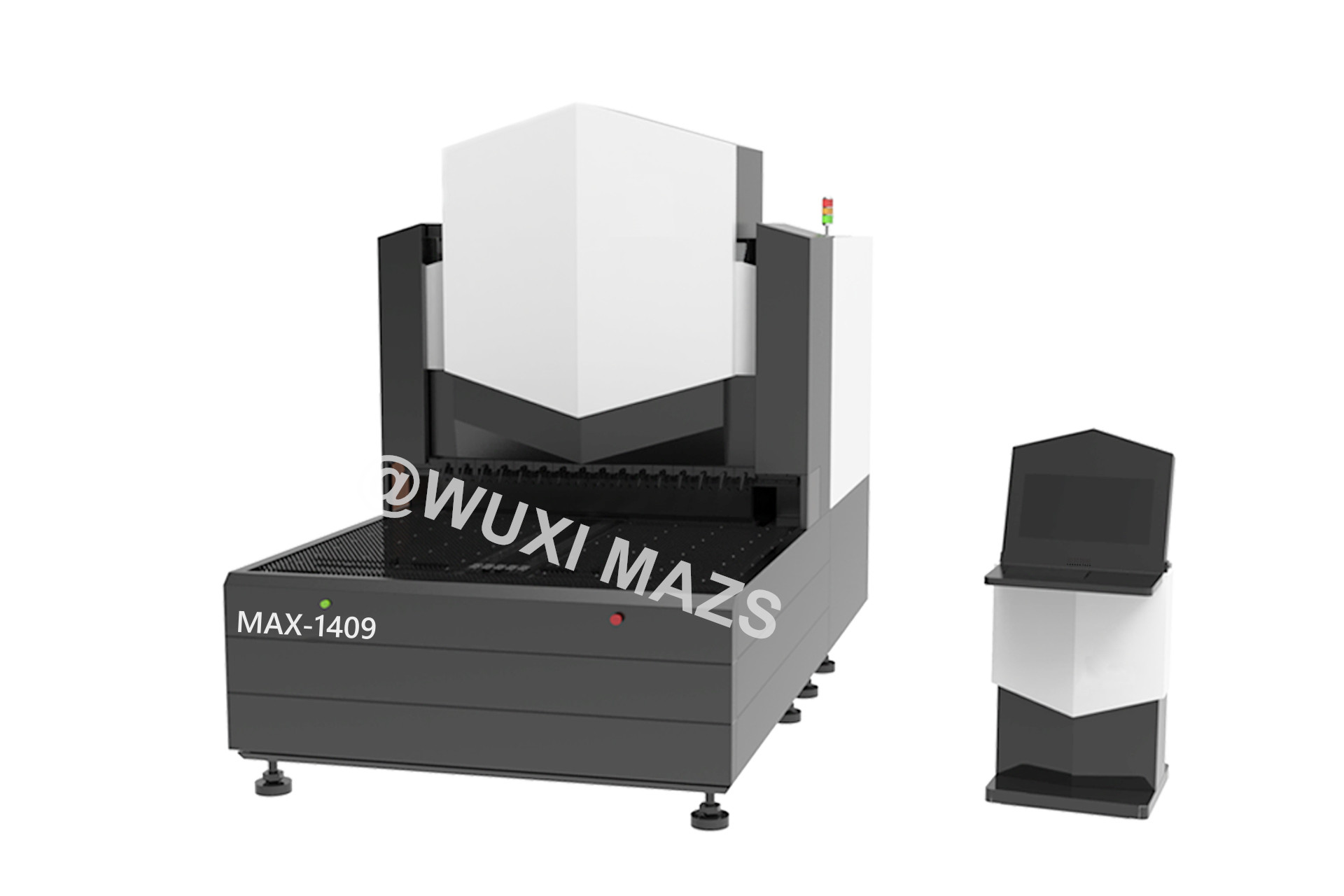

MAX-1409 robot arm type panel bender adopts suction cup feeding, robot arm loading and unloading method. The intelligent panel bender bending center is equipped with the automatic loading and unloading robot arm controlled by the same system, and the same control center has high efficiency and good coordination. There is no need for secondary programming to replace the metal sheets, and the system automatically generates the robotic arm action according to the panel parameters. The robot arm can automatically stacking, which can facilitate the docking with upstream and downstream automatic production lines or other equipment.
| MAX-1409 Technical parameters | |
| Feeding structure | Suction cup |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 1400mm |
| Max.Bending size | L 1400mm X W1400mm |
| Max. Bending height | 170mm |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Rated power | 380V |
| Total Motor power | 34KW |
| Average power | About 1.5KW |
| Noise | About 50 dB |
| Machine size | L 365cm X W 190cm X H 290cm |
| Total weight | About 10 tons |
| User operating environment | Win7 and above operating system |
| Max. Bending width |
UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold panel 1.2mm UTS 265N/mm2 aluminium panel 1.6mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | About 140mmx210mm |
| Double side forming min. Inner size | About 140mm |
| Bending angle | 0-180 degree |
| Axis | 9 |
The self-developed integrated robot arm can fulfill the loading and unloading automatically together with the panel bender. It saves labor and improves the production effeciency. The robot arm and the bending center share the same control center which does not need second time programming when changing the workpiece. The system can generate the robot arm action automatically with higher effeciency and better coordinantion.
| Product Name | six axises robot arm |
| Control system | Lanhao multi axis synchronized intelligent CNC conrol system |
|
Programming method |
Automatically generate the robot arm action command according to the bending center program and the controlling system is the same as the bending center |
| Functions | automatic loading and unloading |
|
Extended functions |
can connected with the up streaming and down streaming production line |
Robot arm type panel bender is packaged in a robust wooden box to ensure product integrity during shipping or other standard packing that suitable for sea transportation, and can be delivered to all over the world.
