WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1009 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Max. Bending Speed: | 0.2 Second/time | Max. Bending Width: | 1000mm |
|---|---|---|---|
| Bending Hight: | 170mm | Rated Voltage: | 380v |
| Motor Total Power: | 25Kw | Average Power: | About 1. 1Kw |
| Noise: | About 50dB | Machine Size: | 285* 150* 280cm |
| Total Machine Weight: | About 7t | Max. Bending Size: | 1000* 1000mm |
| Highlight: | Suction Cup sheet metal folding machine,170mm sheet metal fold4ing machine,380V automated sheet metal bending |
||

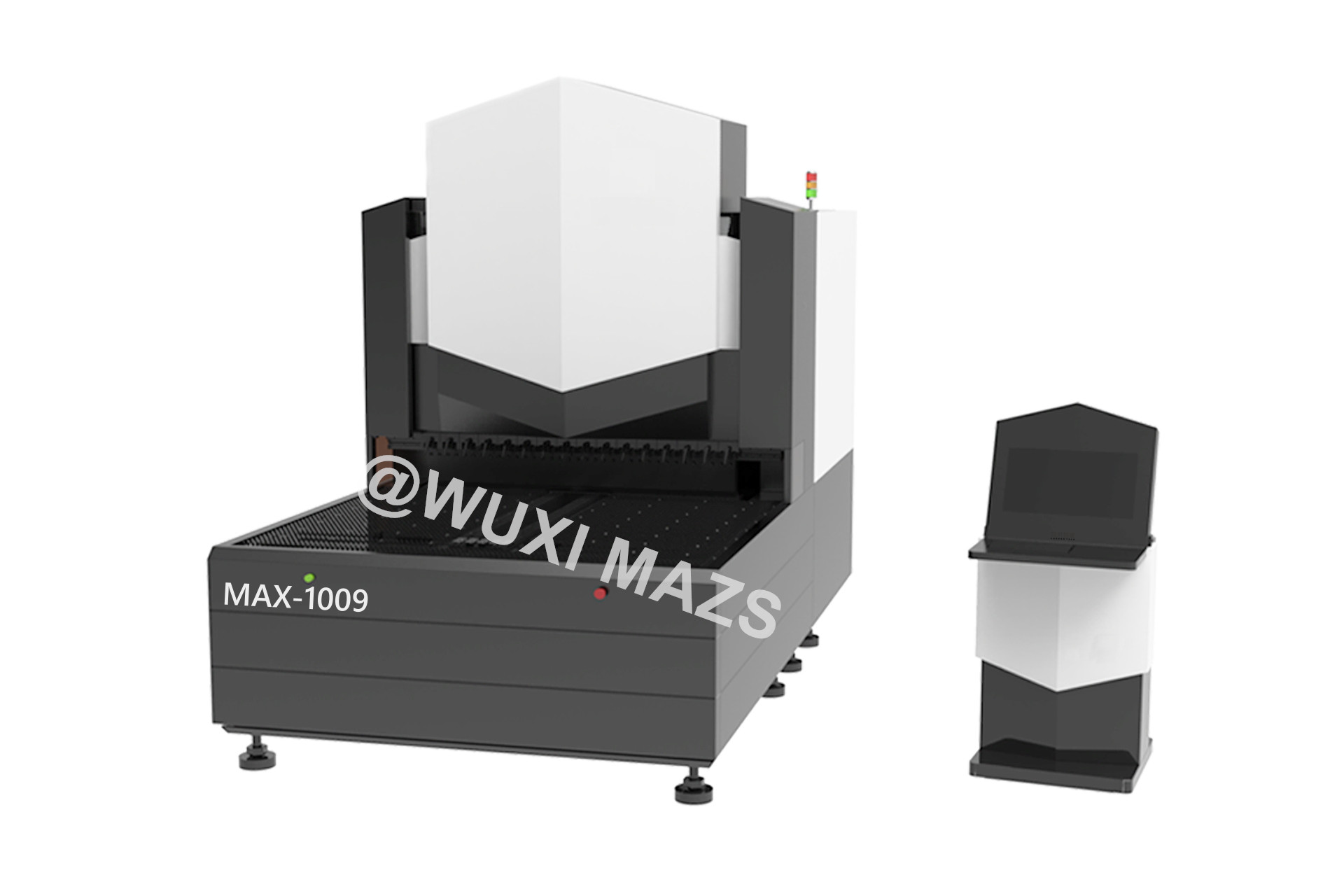

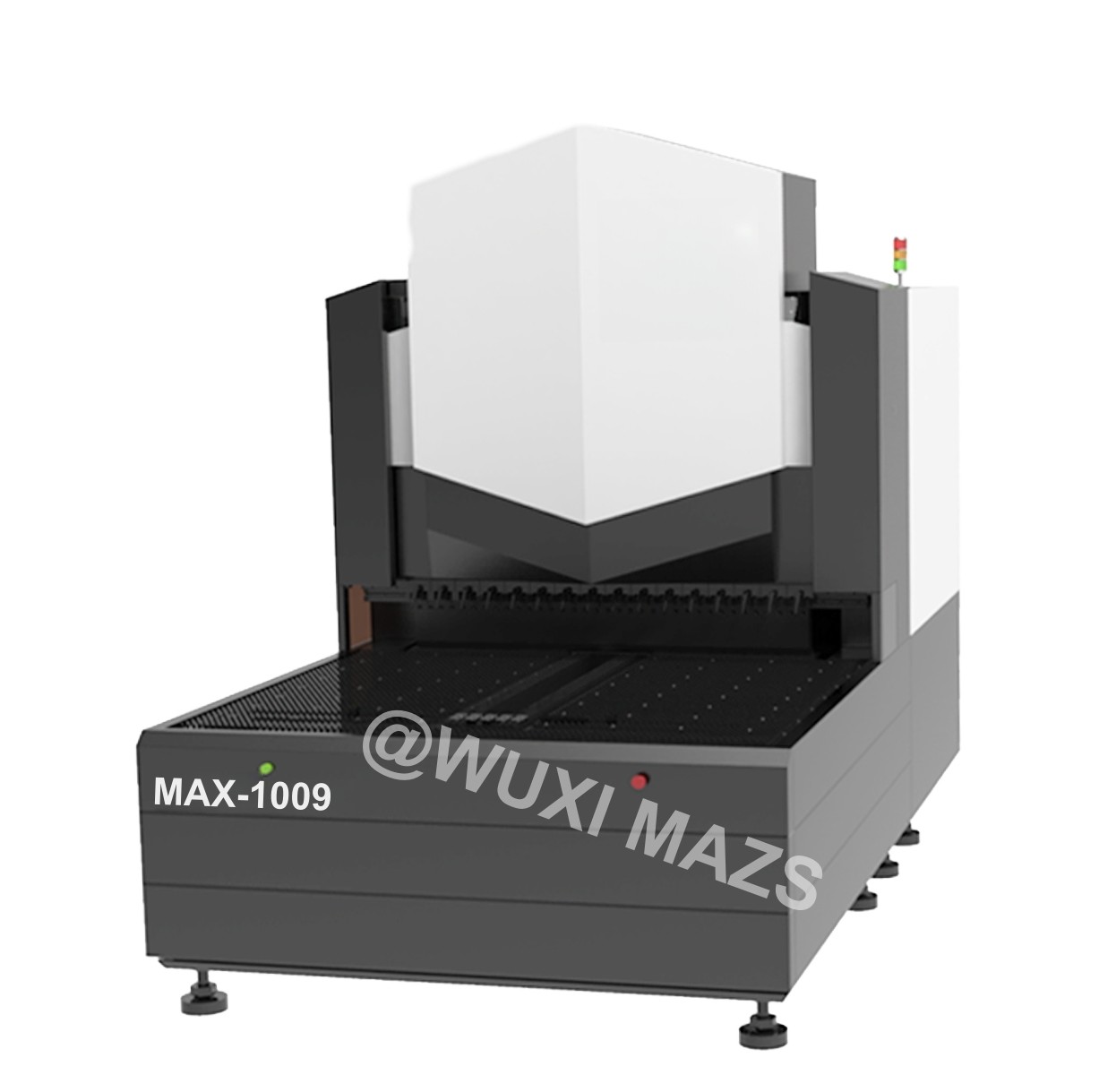

MAX-1009 suction cup type panel bender adopts suction cup loading method. The whole machine is designed and produced in accordance with high-precision machine tool standards. Used on smooth panel surface, no punch ng, no holes, which benefits suction cup to adsorb. The equipment has been iterative ly upgraded in multiple versions, stable and reliable, supporting long-term operation, which can greatly improves the production efficiency of the bending work.
| MAX-1009 Technical parameters | |
| Loading method | Suction cup |
| Worktable structure | Brush |
| Max. bending speed | 0.2 second/time |
| Max.bending width | 1000mm |
| Max.Bending size | L1000mm W1000mm |
| Max. Bending height | 170mm |
| Rated voltage | 380V |
| Total power | 25KW |
| Average power | About 1.1KW |
| Noise decibels | About 50 db |
| Machine size | L285cm W150cm H280cm |
| Total weight | 7 tons |
| User operating environment | Win7 or above operating system |
| Max. Bending width |
UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold plate 1.2mm UTS 265N/mm2 aluminium plate 1.6mm |
| Min. Panel thickness | 0.35mm |
| Four sides forming, min. Inner size | 140mmx210mm |
| Double sides forming, min. Inner size | 140mm |
| Axis | Standard synchronized 9 axis |
The automatic intelligent panel bender bending center mainly solves the forming and bending problems of various complex sheet materials in sheet metal forming. Through multi-axis linkage, the equipment automatically completes the sheet metal folding work, which solves the dependence on mold and manual from a technical point of view, effectively improves the production efficiency and reduces the production cost. This set of bending centers can easily achieve curved, circular arc, crushed edge, loop shape, closed shape and other complex sheet metal bending requirements.
This automatic intelligent bending center can be widely used in steel cabinet shell (eg. file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...), kitchenware (refrigerator, air conditioner, stove...), metal forming problems in furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related fields.
Wuxi MAZS can produce various models with bend sizes of 1400mm, 2000mm and 2500mm.
Our factory has more than ten sets of boring and milling centers. Our plant has its patented tooling and this factory is equipped with more than 20 sets of FANUC high- precision slow-feeding machine tools and many other processing machines equipment.
1. After the equipment is checked and accepted, the quality guarantee period of the whole machine is one year.
2. During the warranty period of the equipment, Wuxi MAZS is responsible for free replacement or maintenance of parts due to the quality of the equipment itself, except for conventional consumables (such as suction cups) and those that are responsible for the user's illegal operation.
3. Wuxi MAZS provides life-long maintenance services for the products provided, and provides daily consultation and guidance related to equipment at any time. Outside the warranty period, our company still provides extensive and preferential technical support and spare parts supply for the buyer. For each device, Wuxi MAZS will establish a uniquely coded "user profile" to track and record the relevant information of the user using the equipment. uxi MAZS will promptly notify the buyer of the software upgrade situation. Except for new requirements, we provide daily software upgrade services free of charge.
4. Wuxi MAZS has sufficient spare parts and accessories, which can provide technical services and spare parts services to the buyer in time to meet the needs of equipment maintenance.
Q1: What is Automatic Bending Center?
A1: Automatic Bending Center is a machine tool used for bending metal parts. It is mainly used in auto parts, metal sheet processing, hardware manufacturing and other industries.
Q2: What is the Brand Name and Model Number of Automatic Bending Center?
A2: The Brand Name of Automatic Bending Center is MAZS, and the Model Number is MAX-**09.
Q3: Where is Automatic Bending Center made?
A3: Automatic Bending Center is made in China.
Q4: What certifications does Automatic Bending Center have?
A4: Automatic Bending Center has IE and ISO certifications.
Q5: How many Automatic Bending Centers can be supplied per month?
A5: MAZS can supply 50 to 60 sets of Automatic Bending Centers per month.
